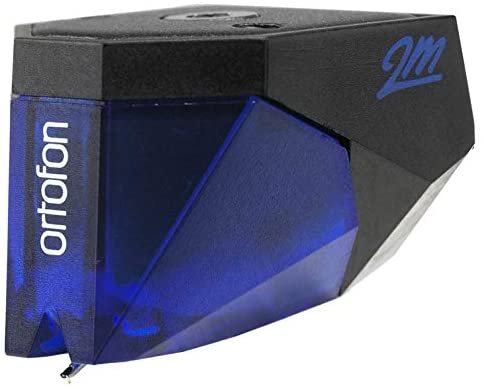

Ortofon 2M Blue Turntable Cartridge with Nude Elliptical Stylus 5.5mV
949.00 AED Included (5% UAE VAT)
The 2M Blue cartridge offers an enhanced audio experience with an improved engine delivering a 5.5 mV output, equipped with a Nude Elliptical diamond stylus and copper split pole pins. Constructed from high-rigidity Hopelex, it reduces resonance for clear sound reproduction. The 2M Blue outperforms the 2M Red with increased dynamics, resolution, and detail. Package includes a stylus brush, screwdriver, and mounting screws. Key specs: 20-25,000 Hz frequency range, 1.5 dB channel balance at 1 kHz, and 7.2 g cartridge weight. The stylus is interchangeable with 2M Red and 2M Silver.
Model number
2M Blue
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
2M Blue Cartridge
The 2M Blue cartridge features an enhanced engine design, delivering an output of 5.5 mV for optimized sound reproduction and precise sonic accuracy. The stylus is equipped with a Nude Elliptical diamond and uses split pole pins wound with copper wire. The cartridge body, made from Hopelex material, provides high rigidity and eliminates undesirable resonances.
Compared to the 2M Red, the 2M Blue offers greater dynamics, higher resolution, and increased openness, capturing more intricate details of your audio recordings.
Included Accessories:
- Stylus Brush
- Screwdriver
- Screw M2.5 x 5
- Screw M2.5 x 7
Technical Data
| Specification | Details |
|---|---|
| Output voltage at 1000 Hz, 5cm/sec. | 5.5 mV |
| Channel balance at 1 kHz | 1.5 dB |
| Channel separation at 1 kHz | 25 dB |
| Channel separation at 15 kHz | 15 dB |
| Frequency range at – 3dB | 20-25,000 Hz |
| Frequency response | 20-20,000 Hz +2/-1 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 20 µm/mN |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Recommended tracking force | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1.3 kOhm |
| Internal inductance | 700 mH |
| Recommended load resistance | 47 kOhm |
| Recommended load capacitance | 150-300 pF |
| Cartridge color, body/stylus | Black/Blue |
| Cartridge weight | 7.2 g |
| 2M PnP MkII cartridge with integrated headshell weight | 20 g |
| 2M PnP MkII cartridge with integrated headshell length | 52 mm |
Replacement and Interchangeability
The 2M Blue stylus is interchangeable with the 2M Red and 2M Silver. Different configurations of the 2M Series allow the following combinations:
- 2M Red, 2M Blue, and 2M Silver
- 2M Bronze and 2M Black
- 2M Mono and 2M 78
