Neumann KH 80 DSP Active Studio Monitor 4in 2-Way 120W (Gray, Single)
2,038.05 AED Included (5% UAE VAT)
The gray Neumann KH 80 DSP is a 2-way active studio monitor designed for near-field monitoring and multichannel setups in various environments. It features dual amplifiers (120W and 70W) for its 4" woofer and 1" tweeter, a DSP engine, and an MMD waveguide. Connectivity includes an analog input and IP network access for control via the Neumann.Control app on multiple devices. This monitor ensures precise sound in diverse acoustic conditions and locations.
Model number
KH 80 DSP A G
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

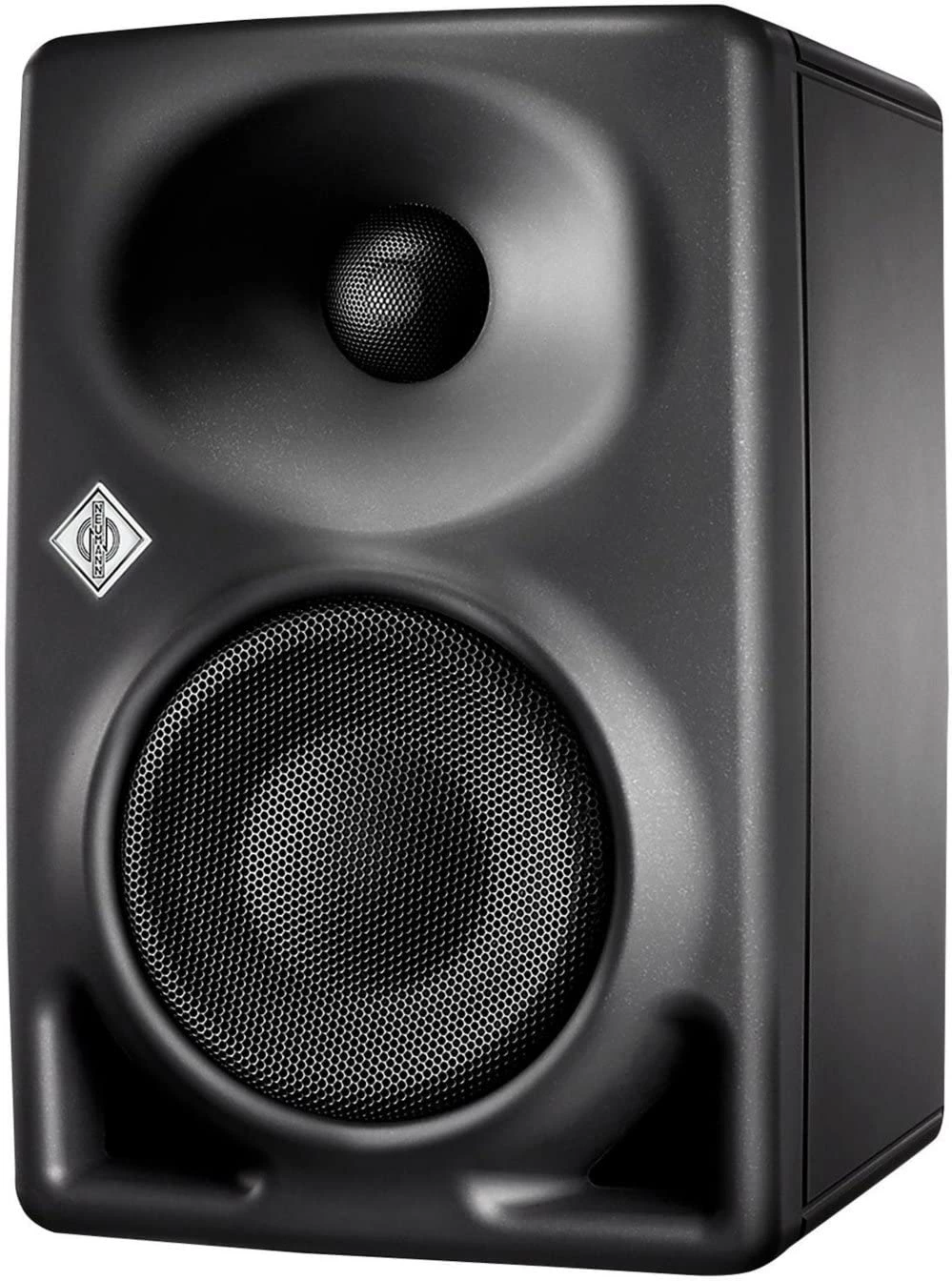

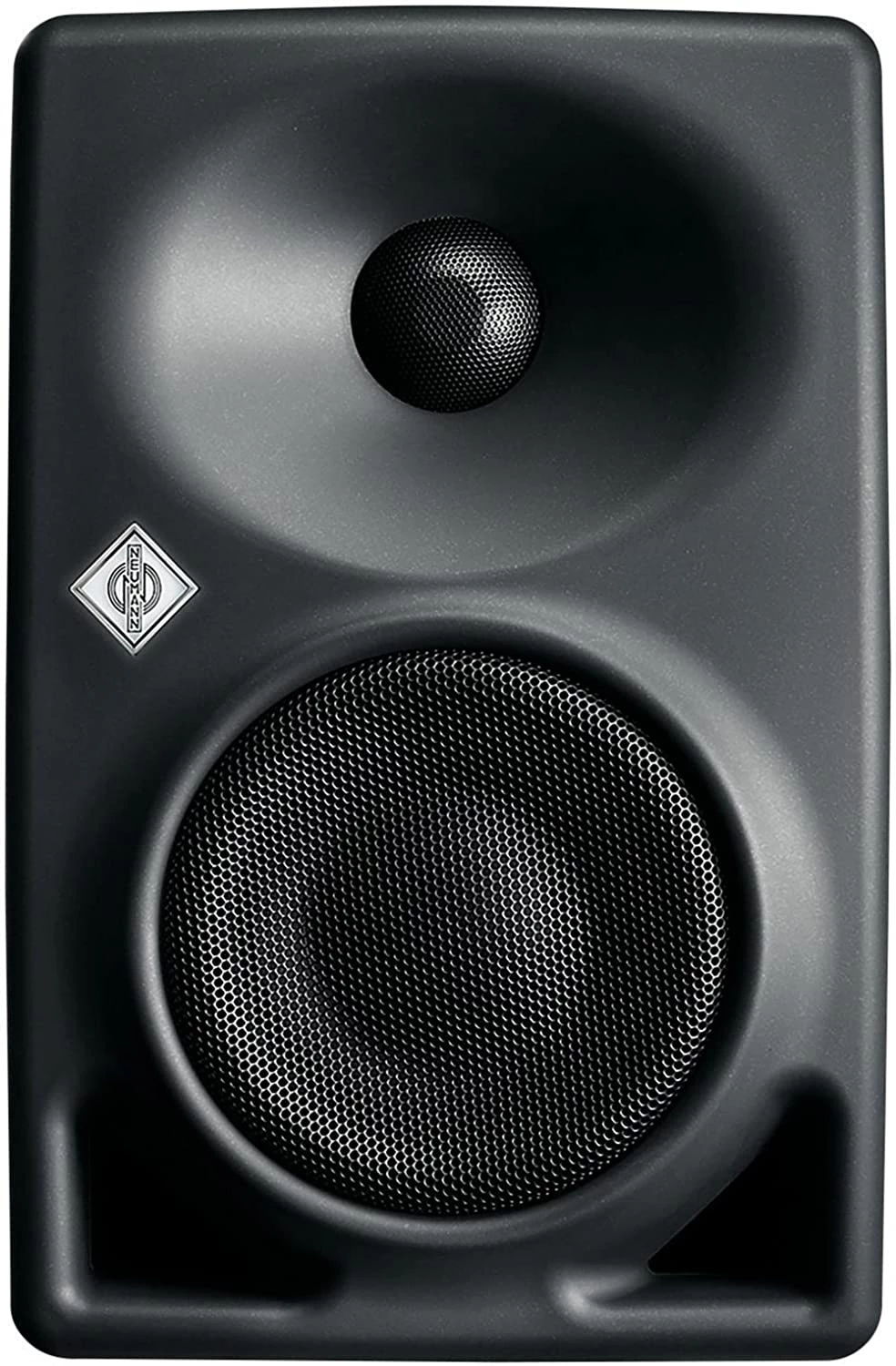

Neumann KH 80 DSP – 2-Way Active Studio Monitor
The Neumann KH 80 DSP is an advanced 2-way active studio monitor, specifically designed for near-field monitoring and multichannel setups in various environments, including music studios, broadcast centers, home studios, and even desktop audio applications. With its impressive dual amplifier system (120W and 70W), on-board DSP engine, and a mathematically modeled dispersion waveguide, the KH 80 ensures precise and high-quality sound reproduction suitable for various acoustic conditions.
Key Features
- Utilizes two amplifiers to power a 4″ woofer (120W) and a 1″ tweeter (70W).
- On-board DSP engine controllable via Neumann.Control app on Windows/Mac and iOS/Android.
- Elliptical Mathematically Modeled Dispersion (MMD) waveguide for smooth off-axis response.
- In-house simulated 1″ tweeter with low-distortion high frequency reproduction.
- Protected by robust metal grilles and large high-capacity flow-optimized bass reflex ports.
- Network connector using standard IP protocol for easy integration.
- Compact polycarbonate composite cabinet designed for durability.
Specifications
| Category | Specification |
|---|---|
| Monitor Type | Active 2-Way |
| Enclosure | Bass-Reflex, Shielded |
| Drivers | LF Driver: 4″ / 101.6 mm Composite Cone HF Driver: 1″ / 25.4 mm Tweeter |
| Amplification | LF Amplifier: 90 W / 120 W Peak HF Amplifier: 50 W / 70 W Peak |
| Frequency Range | 53 Hz to 21 kHz ± 6 dB 57 Hz to 21 kHz ± 3 dB |
| Maximum Sound Pressure Level (SPL) | 108.8 dB |
| Dynamic Range | 114 dBA |
| Maximum Input Level | +24 dBu (Balanced) |
| Analog Input Sensitivity/Gain | 0 dB to -15 dB (Incrementally Variable) |
| Protections and Limiting | Excursion Limiter, Peak Limiter, Soft Limiter, Thermal Limiting |
Power Specifications
| Category | Specification |
|---|---|
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | 180 W (Maximum) |
| Operating Temperature | 50 to 104°F / 10 to 40°C |
| Storage Temperature | -13 to 158°F / -25 to 70°C |

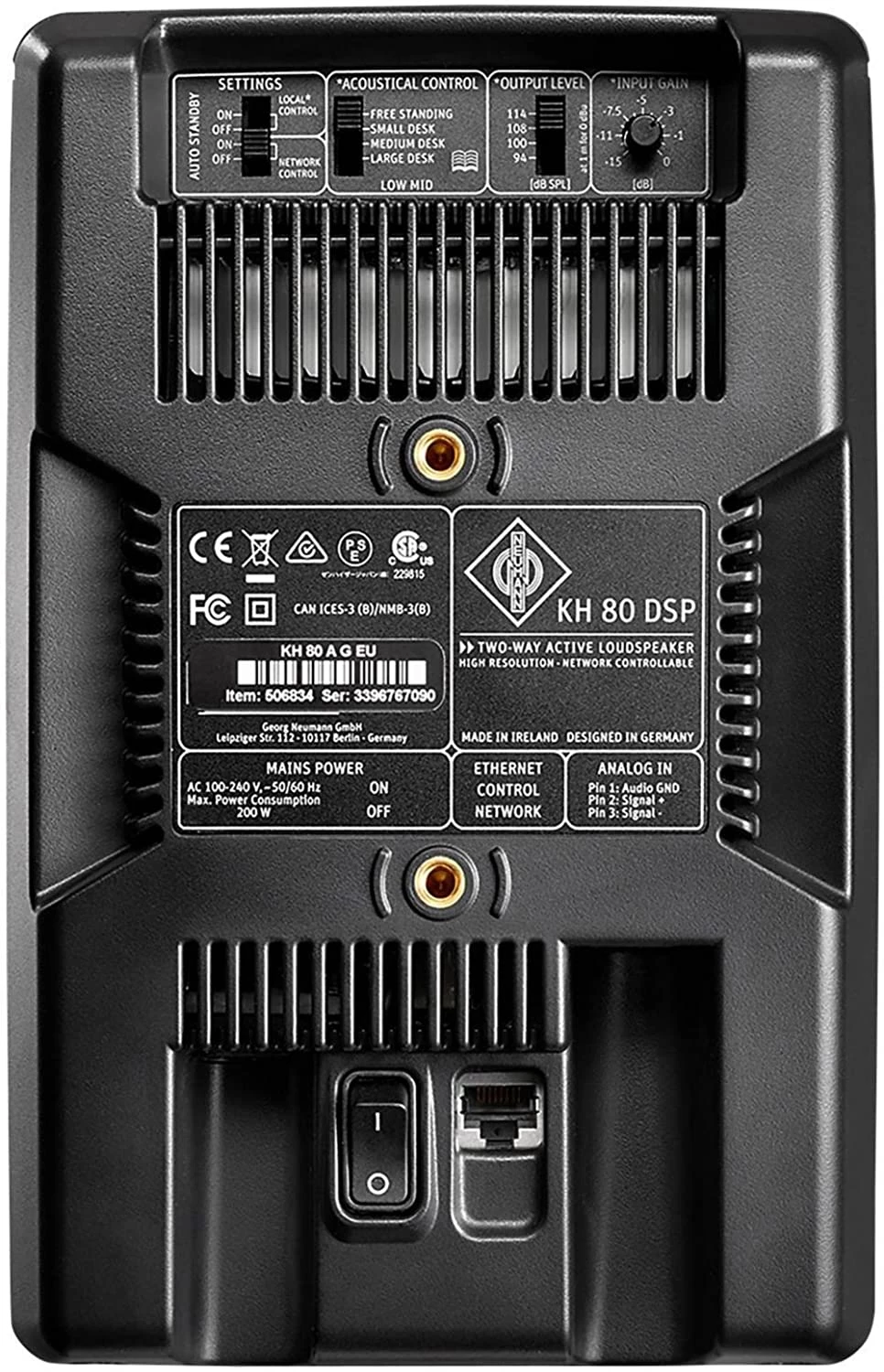

Connectivity
| Category | Specification |
|---|---|
| Audio I/O | 1 x Combo XLR-1/4″ Balanced Female Analog Input |
| USB & Network I/O | 1 x RJ45 (Network) |
General
| Category | Specification |
|---|---|
| Mounting Points | 2 x M6 (Rear Panel) |
| Dimensions (W x H x D) | 6.1 x 9.2 x 7.6″ / 154 x 233 x 194 mm |
| Weight | 9.0 lb / 4.1 kg |
| Package Weight | 9.6 lb |
| Box Dimensions (LxWxH) | 14 x 11 x 9.7″ |
