Description

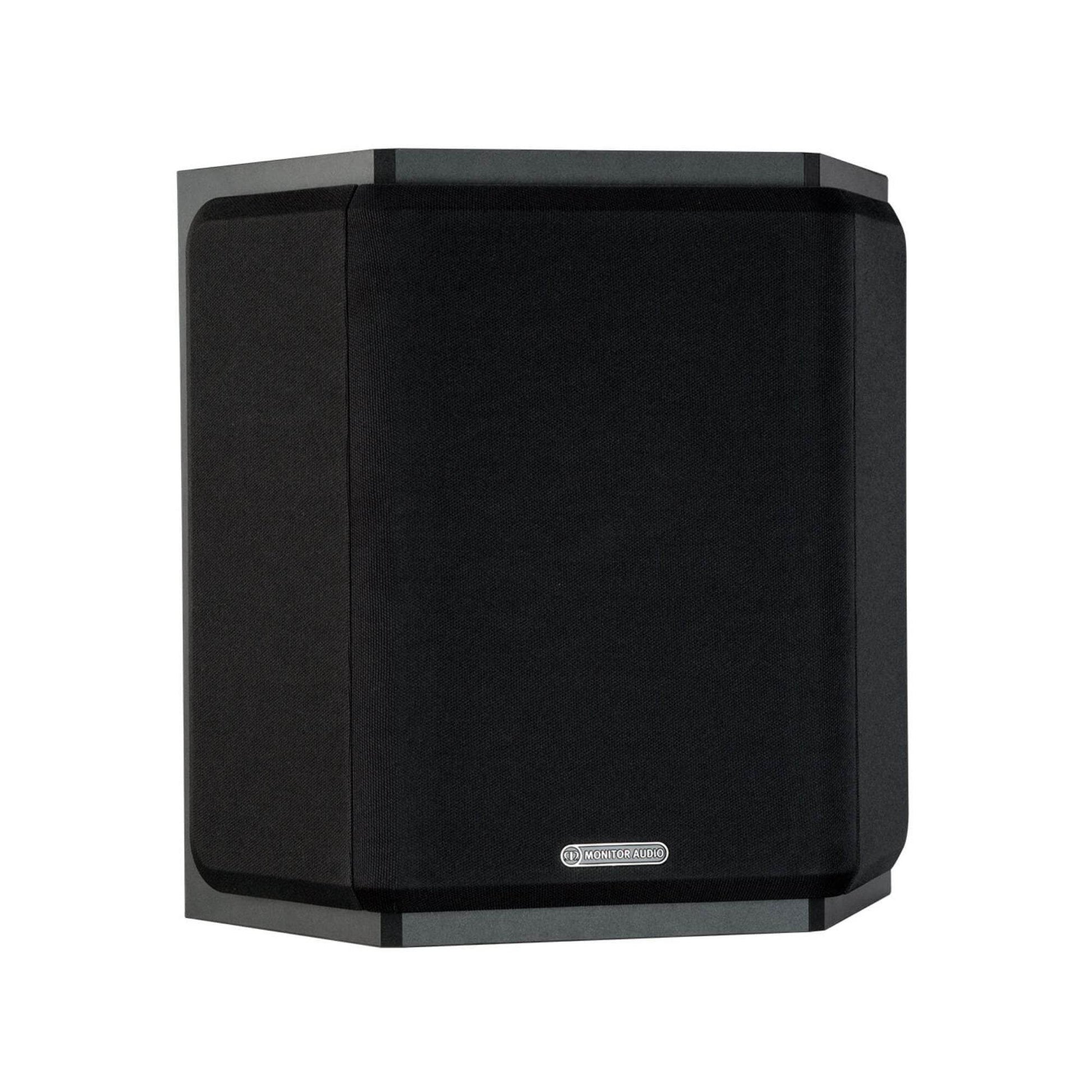

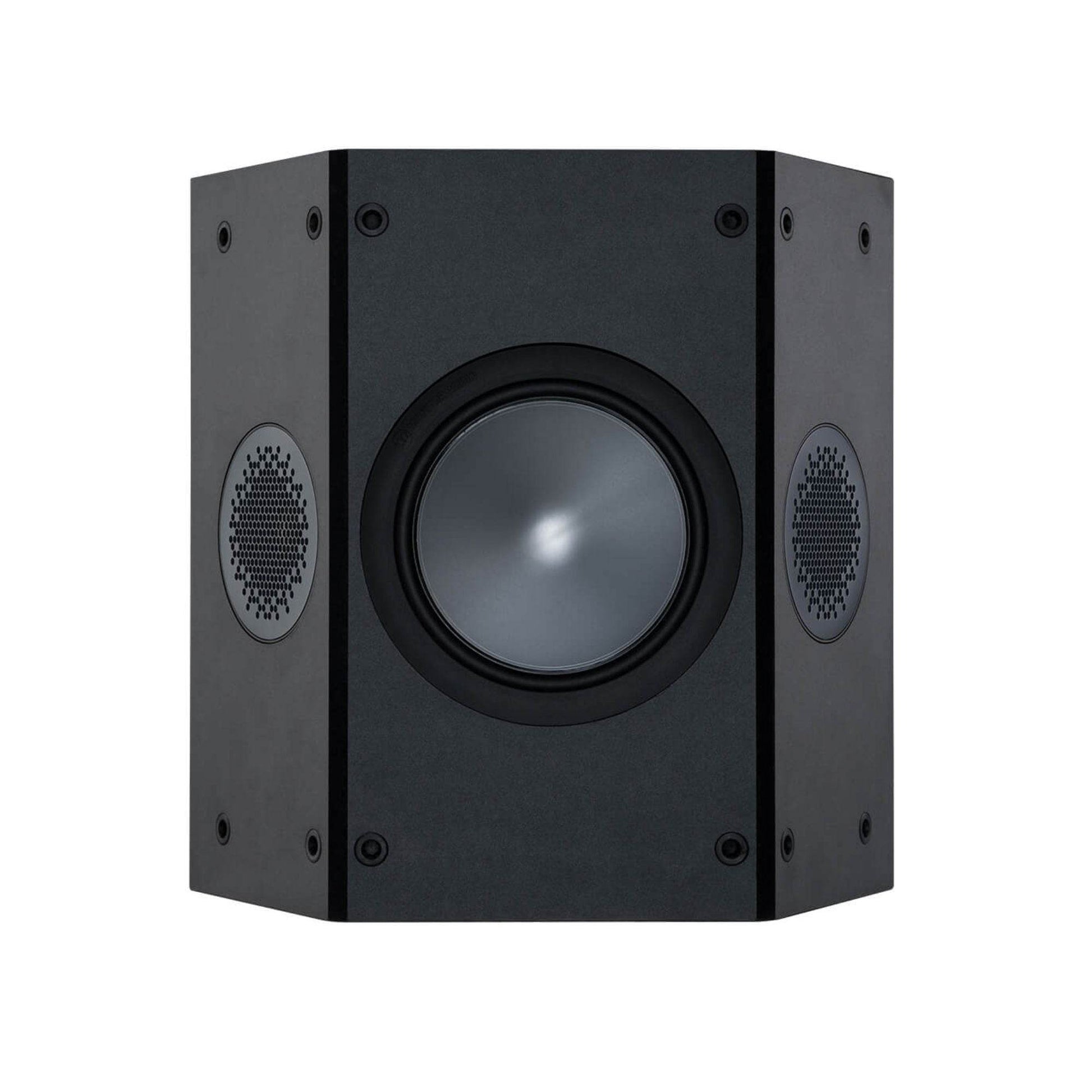

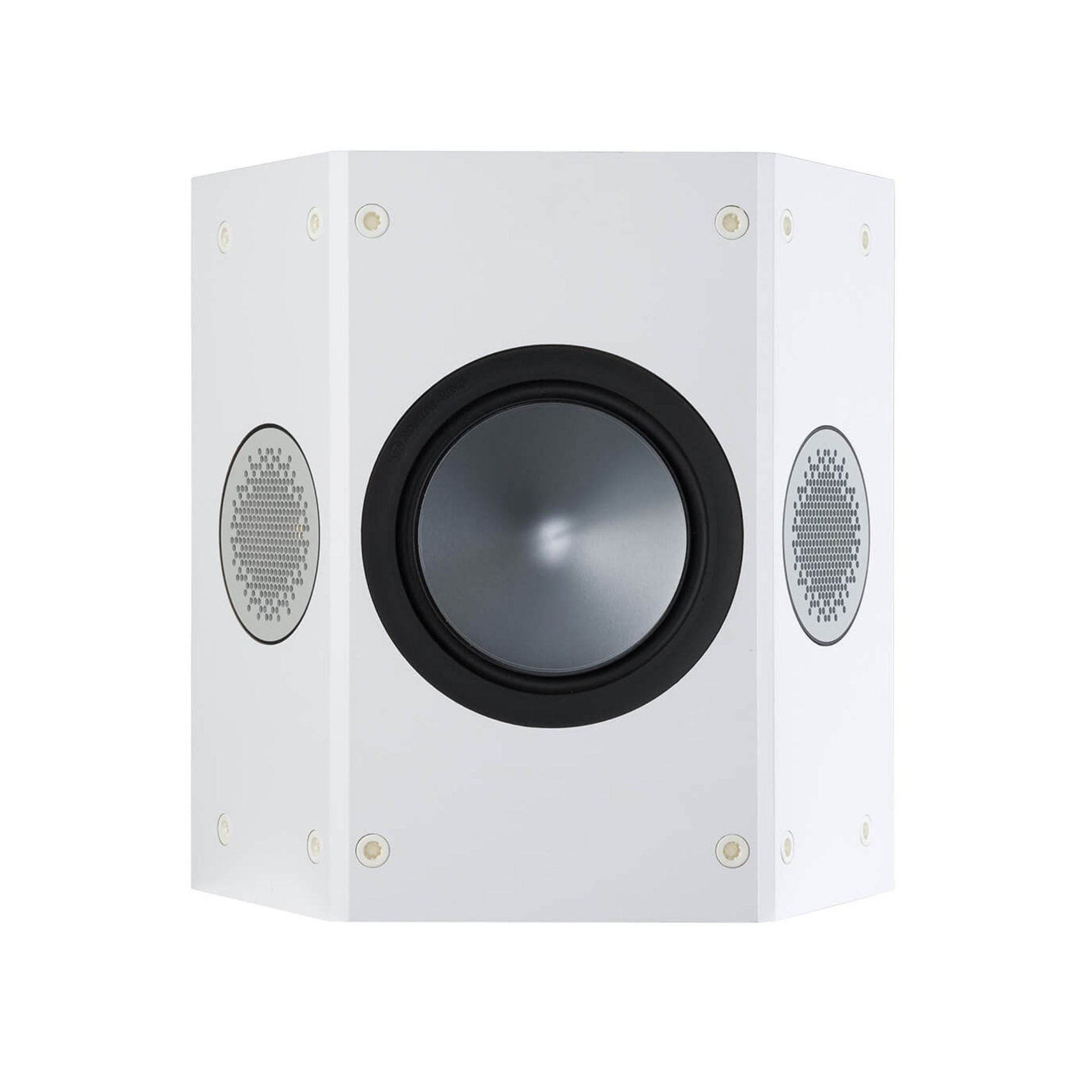

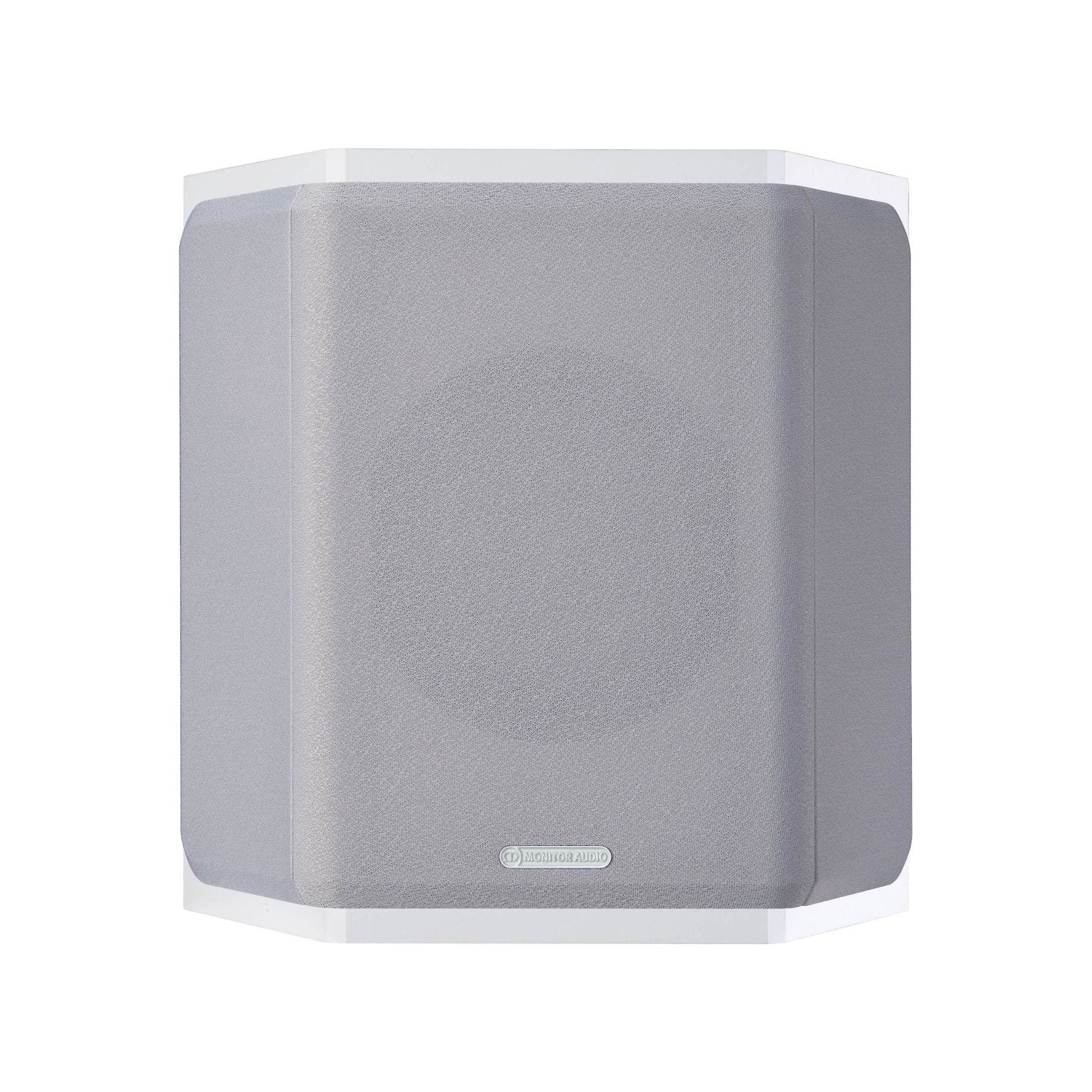

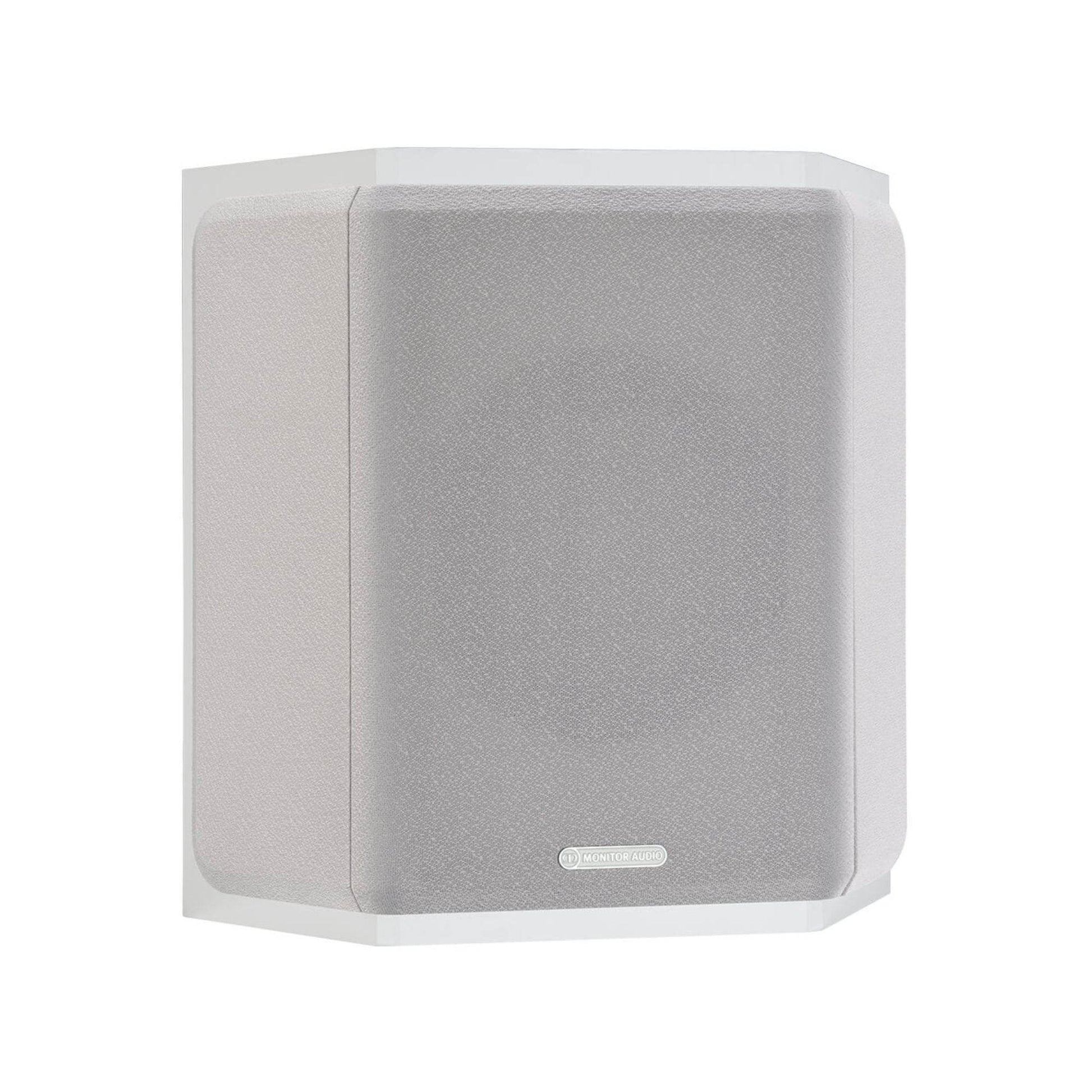

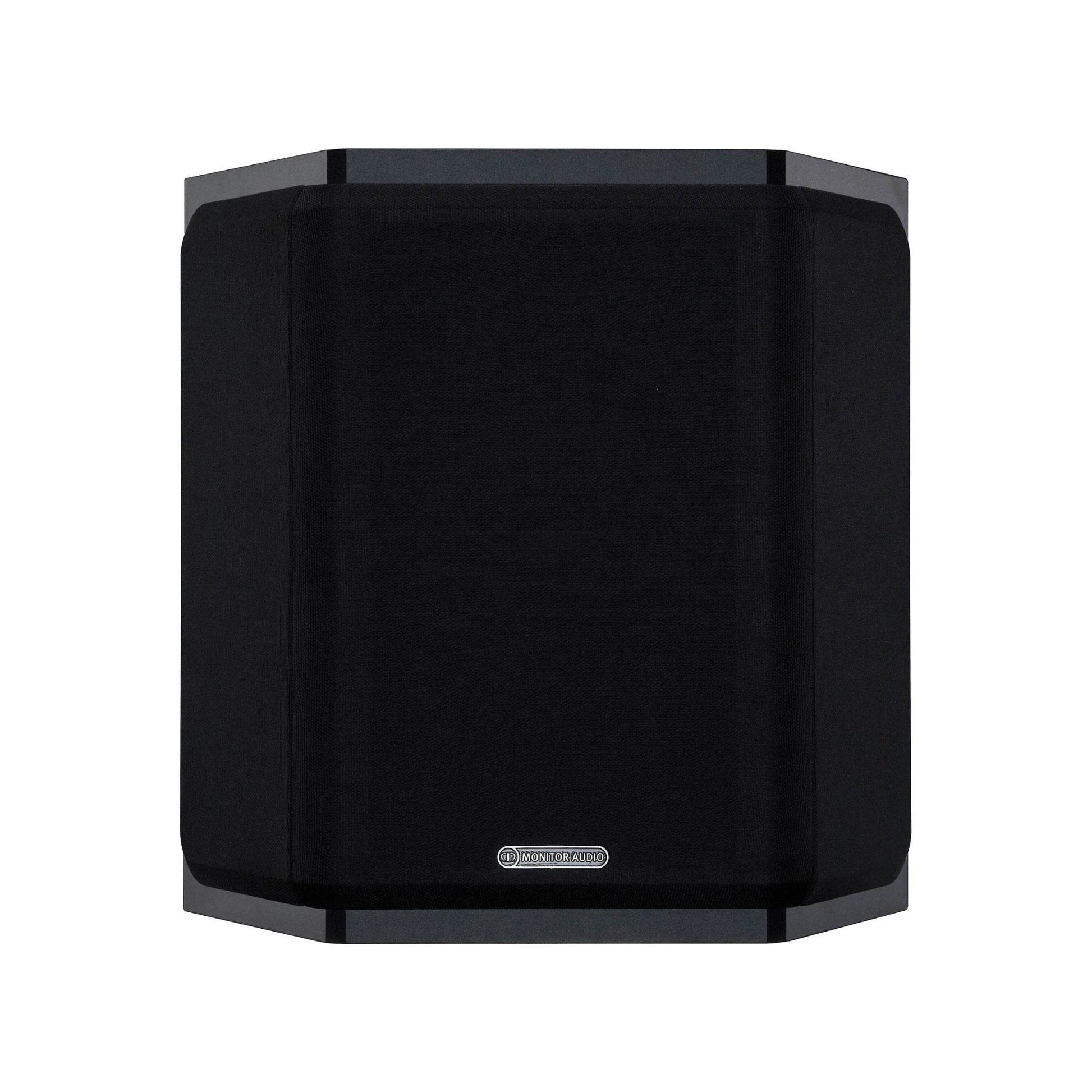

The Bronze FX has a beautiful, compact form and is designed to immerse listeners in compelling surround sound. Monitor Audio’s renowned driver technology delivers an unforgettable home cinema performance. The discreet design incorporates two 25 mm C-CAM Gold Dome tweeters with UD Waveguide and a 5½” C-CAM mid-bass driver to produce both direct and diffuse soundfields. A dipole/bipole switch allows flexible placement — use bipole (in-phase) for rear placement to get distinct directional sound, or dipole (out-of-phase) for side placement to create a more diffuse wraparound soundfield.

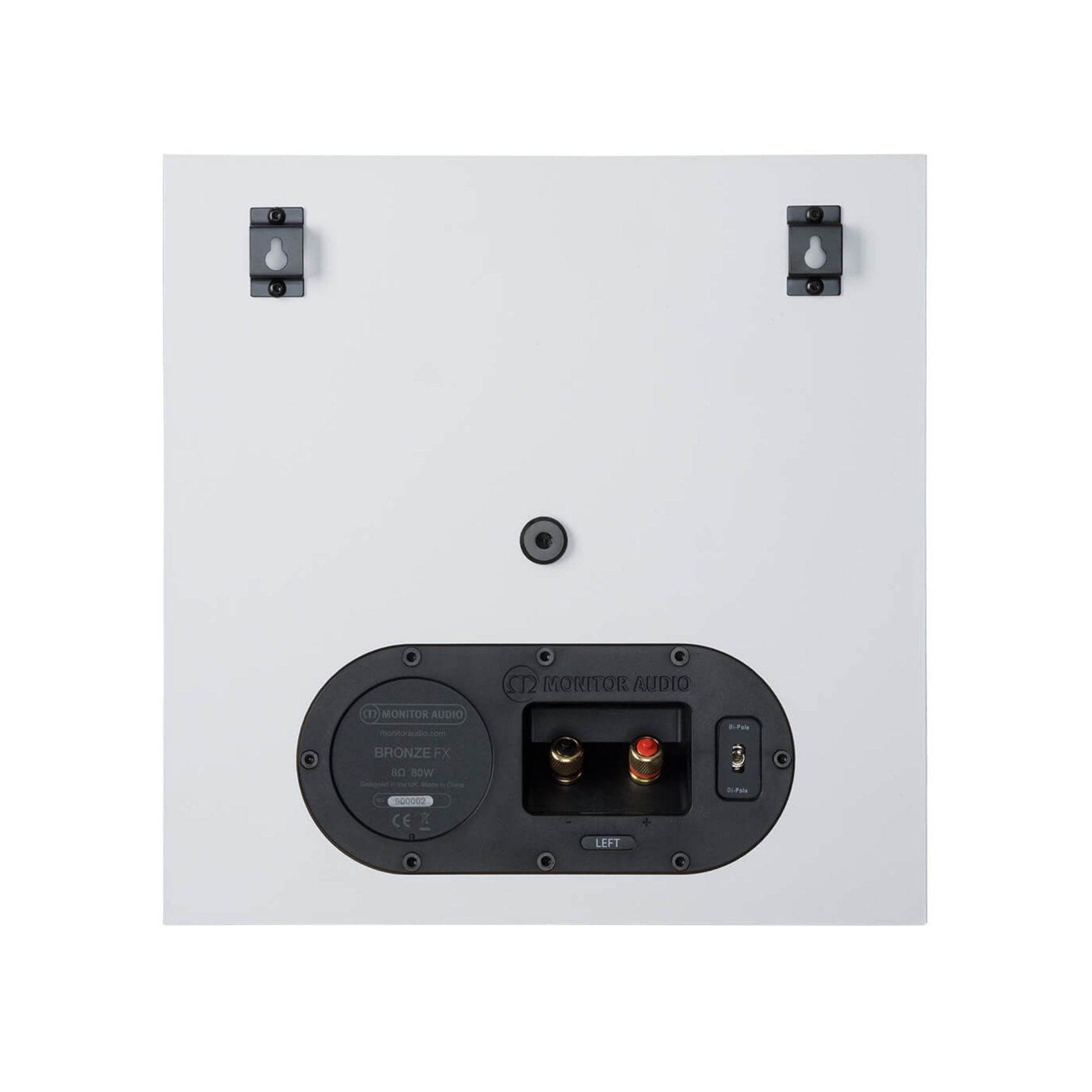

Key features include the Monitor Audio C-CAM Gold Dome tweeter with UD Waveguide, C-CAM mid-bass driver with Damped Concentric Mode (DCM) technology for fuller sound, acoustically transparent hexagonal grille, gold-plated terminals, pureflow silver-plated oxygen-free copper internal wiring, angled baffles for optimal dispersion, recessed terminations for flush wall mounting, and included keyhole wall-mounts. The product ships as a pair with grilles, mounting hardware, manual and wall-mount template.

Monitor Audio Bronze FX — Specifications
SKU 893B6GFXB
System Format 2-Way
Frequency Response (-6 dB) 88 – 25,000 Hz (Free field); 74 – 30,000 Hz (In-room)
Sensitivity (2.83 V @ 1 m) 86 dB
Nominal Impedance 8 ohms
Minimum Impedance 4 ohms
Maximum SPL 108 dBA (pair)
Power Handling (RMS) 80 W
Recommended Amplifier Requirements 20 — 80 W
Bass Alignment Sealed cabinet
Crossover Frequency 2,800 Hz
Drive Unit Complement 1 × 5½” C-CAM mid-range driver; 2 × 25 mm C-CAM Gold Dome tweeter with UD Waveguide
External Dimensions (H × W × D, incl. grille & terminals) 287 × 284 × 124 mm
Sold As Pair
Weight (each) 3.9 kg (8 lb 10 oz)
