Midas DL252 Stage Box with 16 Mic Preamps and 48 Outputs for Live Sound
10,002.30 AED Included (5% UAE VAT)
The DL252 is a 5U rack-mounted I/O unit featuring 16 mic/line inputs, 48 line outputs, and renowned Midas sound quality. It includes award-winning Midas microphone preamps with 2.5 dB gain steps, three AES50 network ports with N+1 redundancy, an Ethernet control port, and a MIDI interface, making it an ideal digital snake partner for Midas M32 and PRO Series digital consoles.
Model number
DL252
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

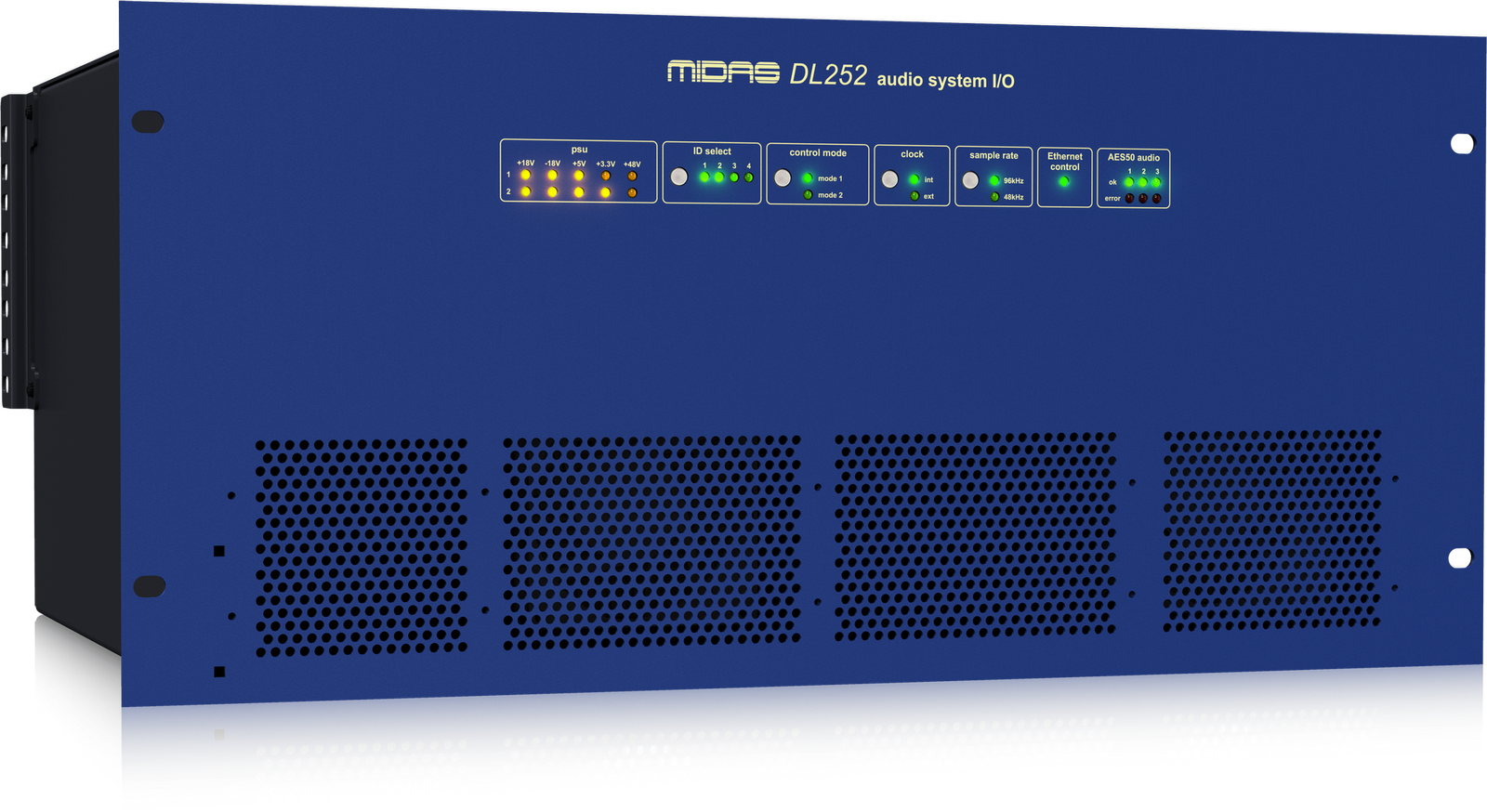

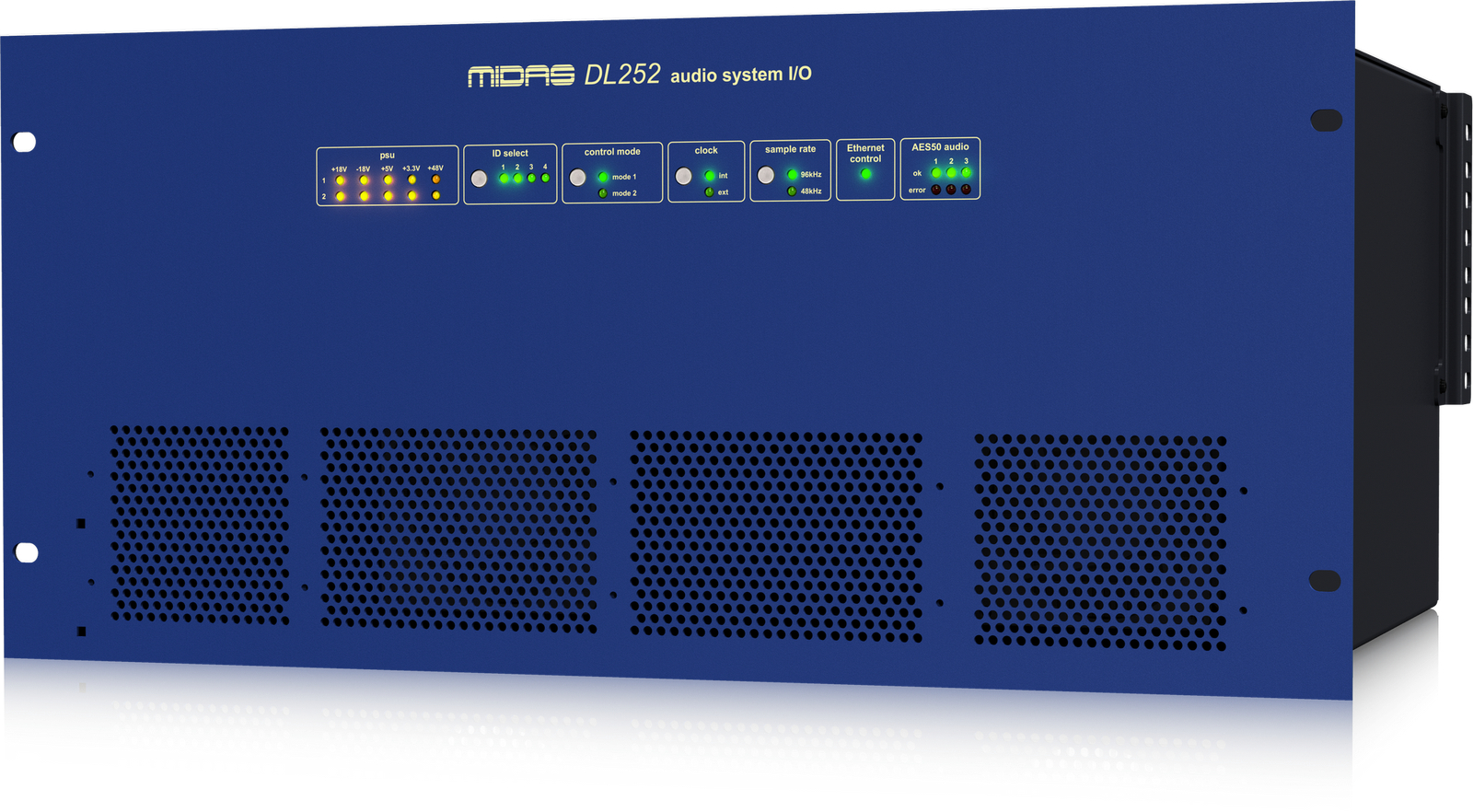

DL252 Audio Interface
The DL252 is a professional-grade, 5U 19″ fixed-configuration rack I/O unit, engineered for high-quality audio performance. Featuring legendary Midas sound utilizing well-proven technologies, the DL252 is perfect for studio and live sound applications. It includes 16 superior microphone preamplifiers and 48 line level outputs, with flexible connectivity options ensuring a reliable operation.
Features
- 16 award-winning Midas microphone preamplifiers with switchable +48 V phantom power
- 48 actively balanced low impedance line level outputs
- Selectable 96 kHz or 48 kHz sample rate operation
- Remote operation up to 100 m via CAT5/5e cable
- All settings programmable from front panel controls or console

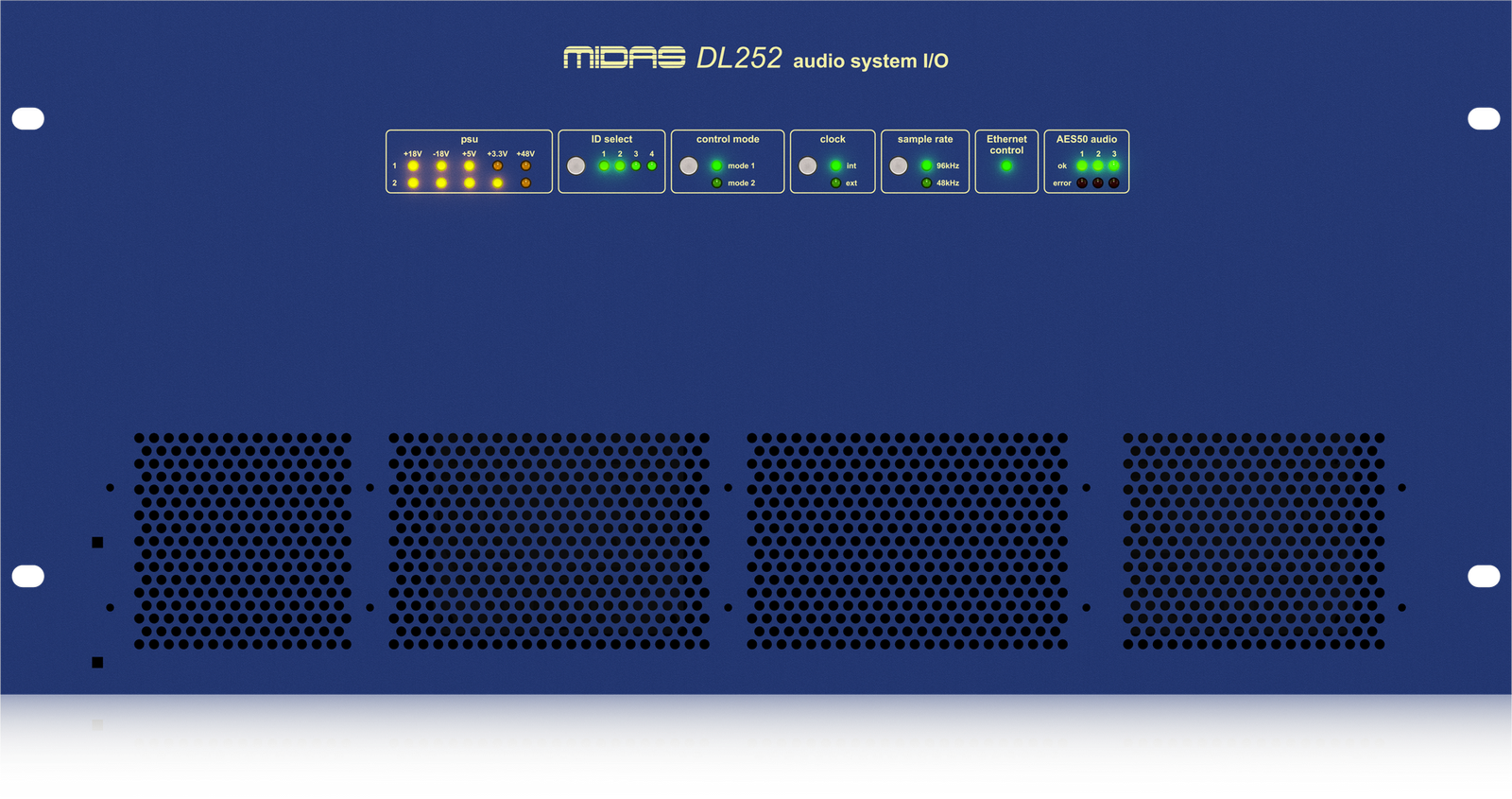

- PSU status indicator LEDs and configuration switches on front panel

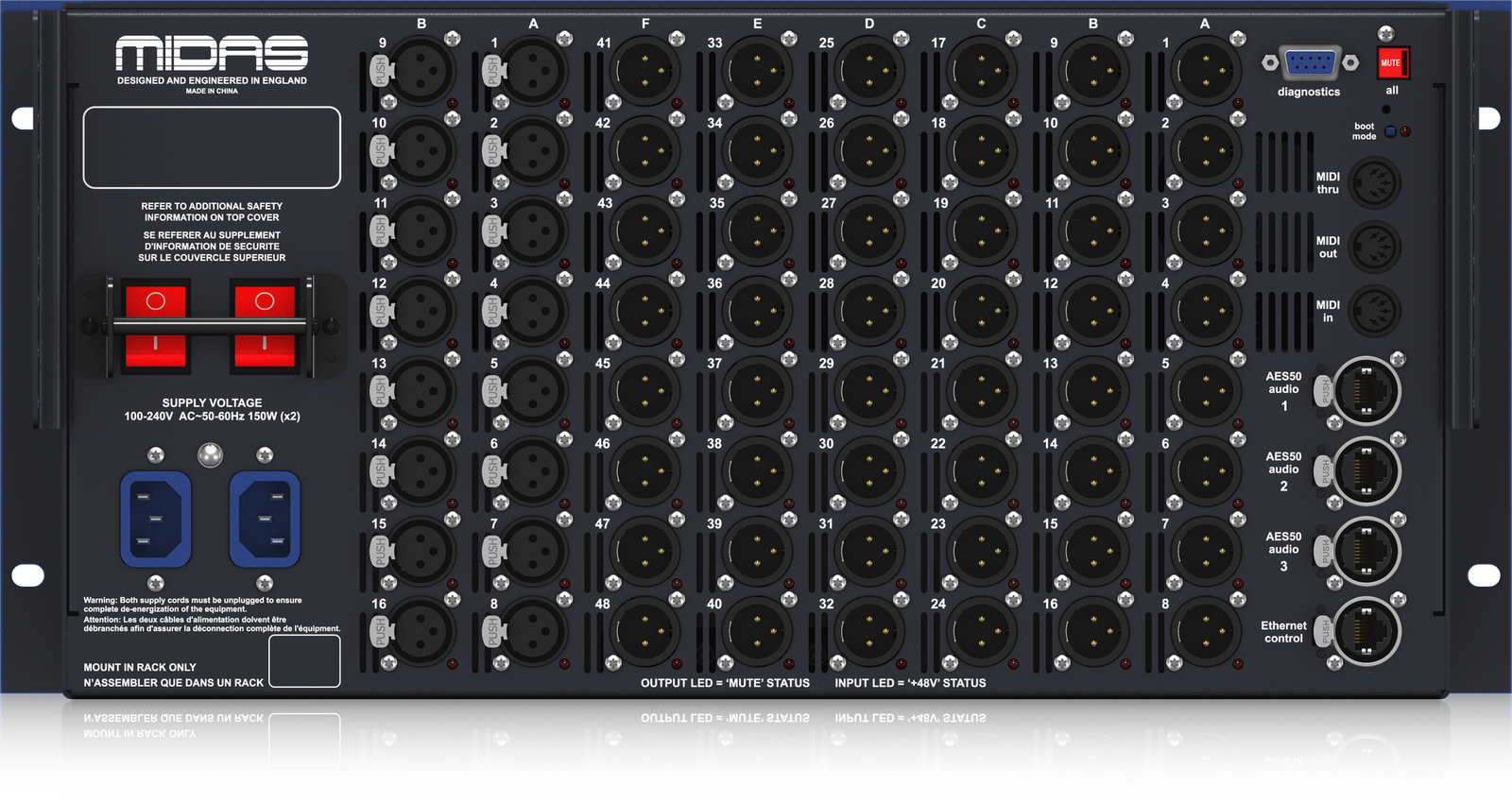

- 3 AES50 network ports for redundant connections
- MIDI In, Out, and Thru connectors
- Features Neutrik etherCON* AES50 network ports
- Rugged 5U rackmount chassis for durability in portable applications
- Dual redundant auto-ranging universal switch-mode power supplies
Specifications
| General Statistics | |
|---|---|
| XLR connections | – |
| Resilience | N+1 cable redundancy and dual redundant PSUs |
| General Specifications | |
|---|---|
| Sampling rate | 48 kHz, 96 kHz |
| Dynamic range | 107 dB, 22 Hz to 22 kHz (no pre-emphasis) |
| Maximum gain | 45 dB |
| Crosstalk at 1 kHz | -100 dB physically adjacent input channels |
| Crosstalk at 10 kHz | -90 dB physically adjacent input channels |
| Dimensions | 5U x 414 mm deep |
| Net weight | 10 kg |
| Shipping weight | 18 kg |
| Power requirements | 100 to 240 VAC, 50 to 60 Hz |
| Power consumption at 115 V | 1 PSU: 85 W, 85 VA; 2 PSUs: 110 W, 110 VA |
| Power consumption at 230 V | 1 PSU: 90 W, 100 VA; 2 PSUs: 110 W, 135 VA |
| Operating temperature range | +5°C to +40°C |
| Storage temperature range | -20°C to +60°C |
| System Inputs and Outputs |
|---|
| I/O box inputs |
| Box analogue outputs |
| MIDI |
| 48 kHz I/O digital system inputs and outputs |
| 96 kHz I/O digital system inputs and outputs |
| Input and Output Characteristics |
|---|
| Analogue input characteristics |
| Analogue output characteristics |
| 48 kHz digital I/O characteristics |
| 96 kHz digital I/O characteristics |
