Lexicon Surround Reverb Processor PCM96 with 6-Channel I/O and 2200+ Presets

Name: Lexicon Surround Reverb Processor PCM96 with 6-Channel I/O and 2200+ Presets
Brand: Lexicon
SKU: PCM96
Price: 16378.00 AED
Availability: InStock

Brand Lexicon

16,378.00 AED Included (5% UAE VAT)

The PCM96 Surround enhances the acclaimed PCM96 with additional presets, configuration options, and expanded I/O capabilities. It offers industry-standard reverbs and effects with exceptional flexibility. Available in two versions: one with 6 XLR Stereo AES I/Os or another with 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions include MIDI and Wordclock features.

Ask a question

Model number PCM96

Availability In Stock

Enquire on WhatsApp

UAE delivery
Timing confirmed at checkout.

Compatibility support
Expert product matching.

Secure payment
Protected checkout in AED.

Secure checkoutProtected payments in AED

Description

Lexicon PCM96 Surround Reverb and Effects Processor

The Lexicon PCM96 Surround builds upon the legacy of its predecessor with enhanced presets, expanded configuration options, and increased I/O flexibility. This powerhouse delivers industry-standard reverb and effects, tailored for both music production and post-production workflows.

Available in two versions, the PCM96 Surround can be fitted with either 6 XLR Stereo AES I/Os or a combination of 2 DB25 6-channel analog I/Os and 1 DB25 6-channel digital I/O. Both models come with MIDI capabilities and a Wordclock interface.

Main Features

2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O
New Parallel Stereo and Surround configurations
50 legendary Lexicon reverbs, delays, and modulation effects
Surround Room algorithm for diverse room effects
New Pitch algorithms
Over 2200 factory presets
32-bit floating point processing
Sample rates up to 96kHz
External BNC Wordclock
MIDI in, out, and thru
768 user presets
Compact Flash for additional storage

Technical Specifications

Specification	Details
Effects Type	Reverb
Channels	6
Effect Variations	Stereo and Surround: Room, Hall, Chamber, Random Delay, Classic (Random Hall), Plate, Dual Delay, Ambience, Resonant Chords, Chorus/Flange, Concert Hall, Signal Generator, Pitch
Presets	2200+
User Memory	768 internal, 2048 on optional memory card

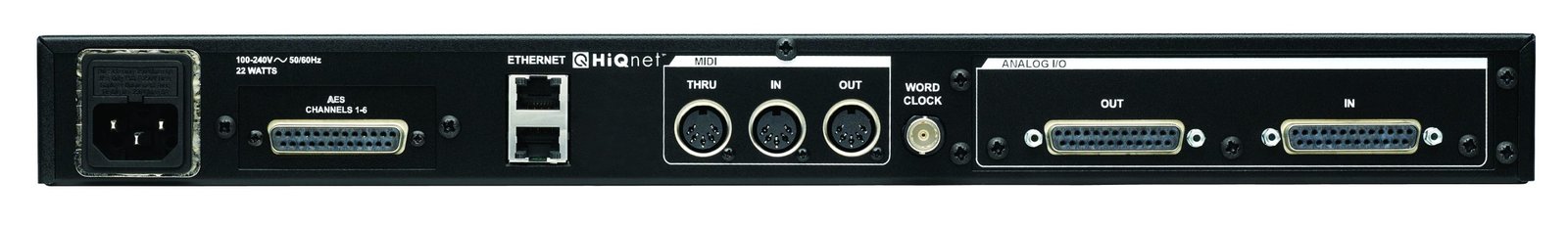

Analog Input	1 x 25-pin D-Sub
Analog Output	1 x 25-pin D-Sub
Digital Input	1 x 25-pin D-Sub (shared with output)
Digital Output	1 x 25-pin D-Sub (shared with output)
Other Connectors	2 x FireWire, 2 x RJ-45, 1 x BNC Wordclock input
AD/DA Conversion	24-bit
MIDI	In/Out/Thru
External Storage	Type I Compact Flash
Display	High-resolution, high-contrast OLED
Frequency Response	20Hz to 46kHz, +0/-0.5dB @ 96kHz
Dynamic Range	112dB unweighted, 115dB A-weighted
Noise	THD: <0.002% 20Hz to 20kHz @ +4dBu
Power Requirements	100/120~220/240VAC, 50/60Hz
Dimensions	19 x 12.5 x 1.75″ (483 x 318 x 45mm)
Weight	14.25 lbs (6.5 kg)
Specialties	Seamless automation and control via Ethernet or FireWire
Package Weight	16.3 lb
Box Dimensions (LxWxH)	24 x 19 x 4.5″
