Lexicon BOB-32 BLU Link Breakout Box with 32 Analog Outputs
11,419.00 AED Included (5% UAE VAT)
The Lexicon BOB-32 breakout box transforms up to 32 channels from the BLU link digital audio bus into analog audio, compatible with the QuantumLogic™ Immersion processor (QLI-32). It features rear-mounted DIP switches for easy configuration of 32 consecutive channels from the 256 available on the BLU link. Front panel LEDs indicate signal presence and power status.
Model number
BOB-32
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Lexicon BOB-32 Breakout Box

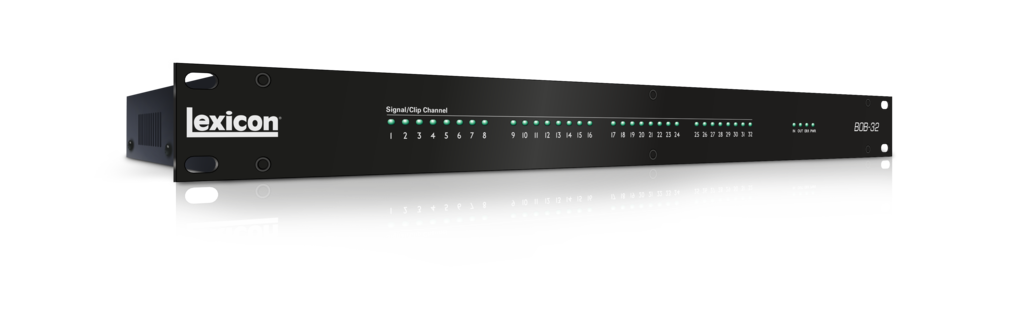

The Lexicon BOB-32 breakout box provides a reliable solution for converting up to 32 channels of the BLU link digital audio bus to analog audio, ensuring seamless integration with Lexicon’s QuantumLogic™ Immersion processor (QLI-32). Designed with practicality in mind, the BOB-32 features straightforward configuration through six rear-mounted DIP switches, allowing users to select 32 consecutive channels from a total of 256 available on the BLU link. The status of signal presence and power are readily visible via front panel LED indicators, enhancing operational clarity.
Key Features
- 32 analog audio outputs for comprehensive audio connectivity.

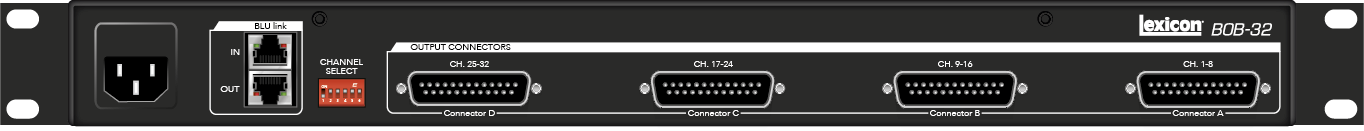

- Equipped with 4 DB-25F connectors.
- User-friendly DIP switches for channel range selection.
- Supports 256 channels at 48k sampling rate or 128 channels at 96k sampling rate.
- Clear and informative front panel LED indicators.
- Compact design with a single rack space chassis.
Specifications
| Specification | Details |
|---|---|
| Analog Outputs | 4 DB-25F Connectors |
| Maximum Output Level | +19dBu |
| Frequency Response | 20Hz – 20kHz (+0.5dB/-1dB) |
| THD | < 0.01% 20Hz to 20kHz, +10dBu output |
| Dynamic Range | 108dB typical, 22Hz – 22kHz unweighted |
| Crosstalk | < -75dB |
| D/A Latency | 28/Fs (0.58ms @ 48K, 0.29ms @ 96K) |
| Connectors | 2 x RJ45 Ethernet |
| Max Cable Length | 100m/300ft on Category 5e cable |
| Max # of Nodes | 60 |
| Latency per Node | 4/Fs (0.08ms @ 48K, 0.04ms @ 96K) |
| Required AC Mains (+/- 10%) | 100Vrms – 240Vrms, 50/60Hz |
| BTU | 170 BTU/hour |
| Dimensions (H x W x D) | 1.75″ (45 mm) x 19″ (483 mm) x 7.75″ (197 mm) |
| Weight | 5.13 lbs (2.33 kgs) |
