Lab Gruppen PD3000 3000W 2-Channel Class-D Amplifier for Live Sound
3,238.20 AED Included (5% UAE VAT)
The PD3000 is a two-channel amplifier that delivers 2 X 1500W of power, suitable for entry to mid-level live sound applications. It features the unique IDEEA Class-D output stage, ensuring optimal match with the rated power output. With each channel providing adequate voltage swing and current capacity, it drives any impedance load without extra configuration, while its permanently bridged output design ensures low thermal loss and high voltage swing.
Model number
PD3000
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

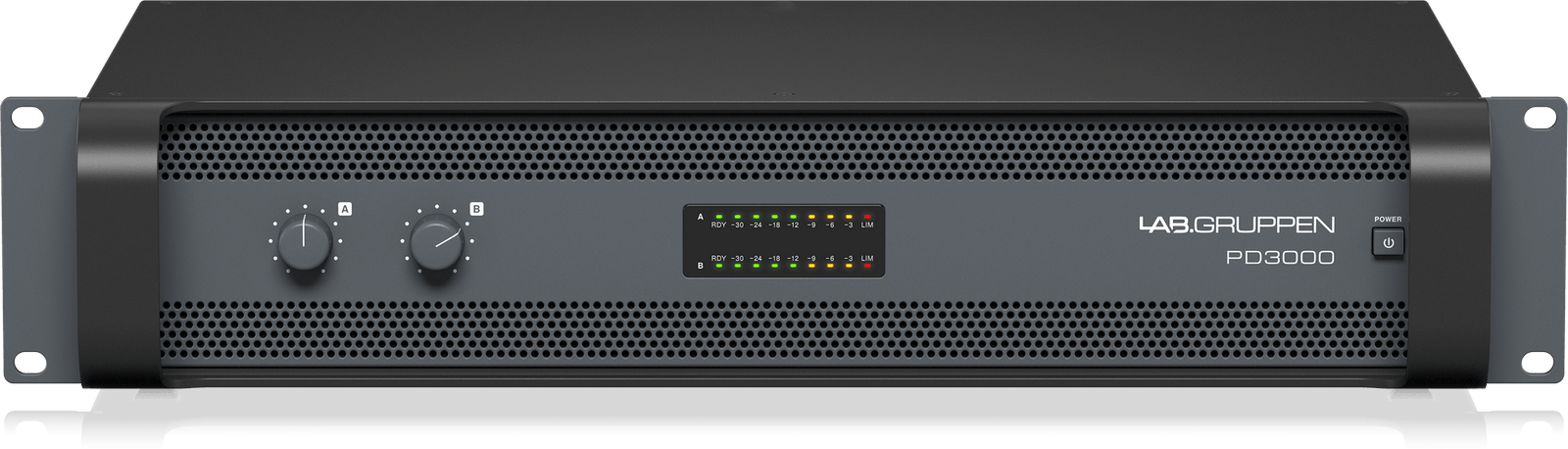

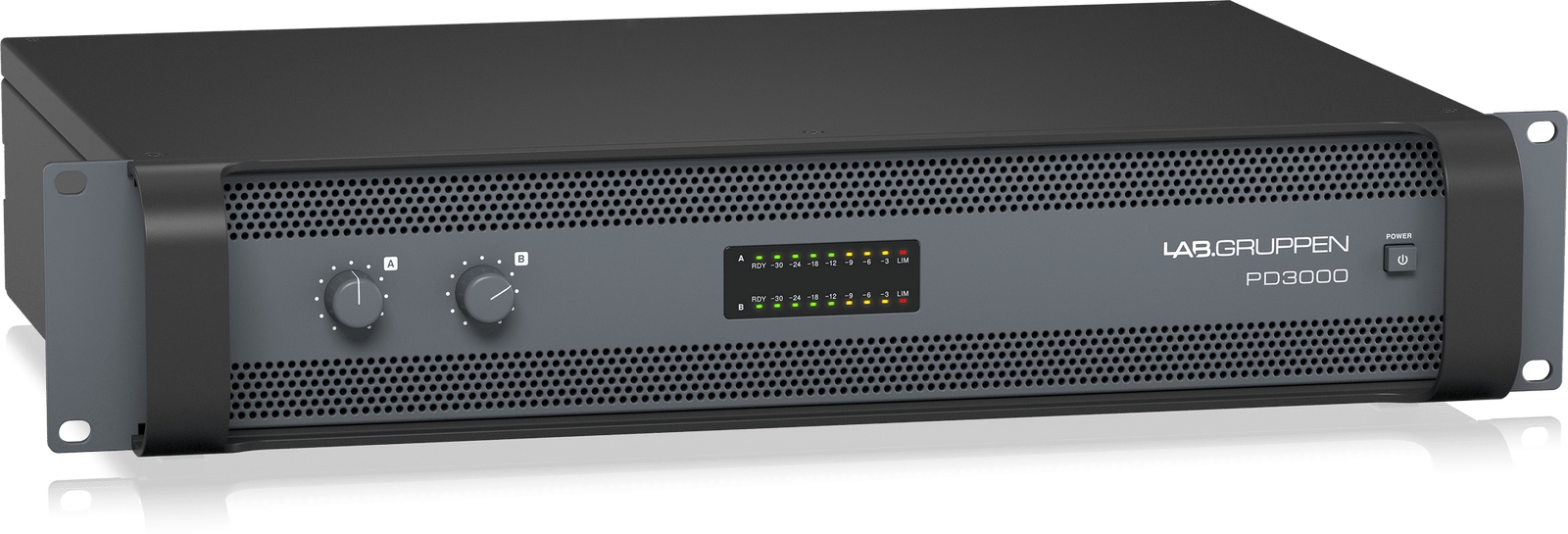

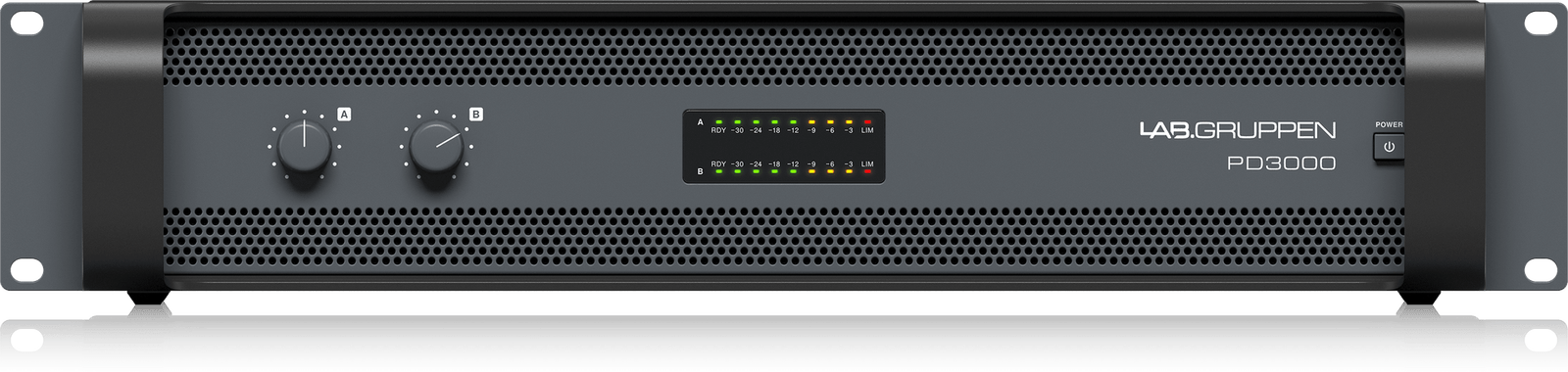

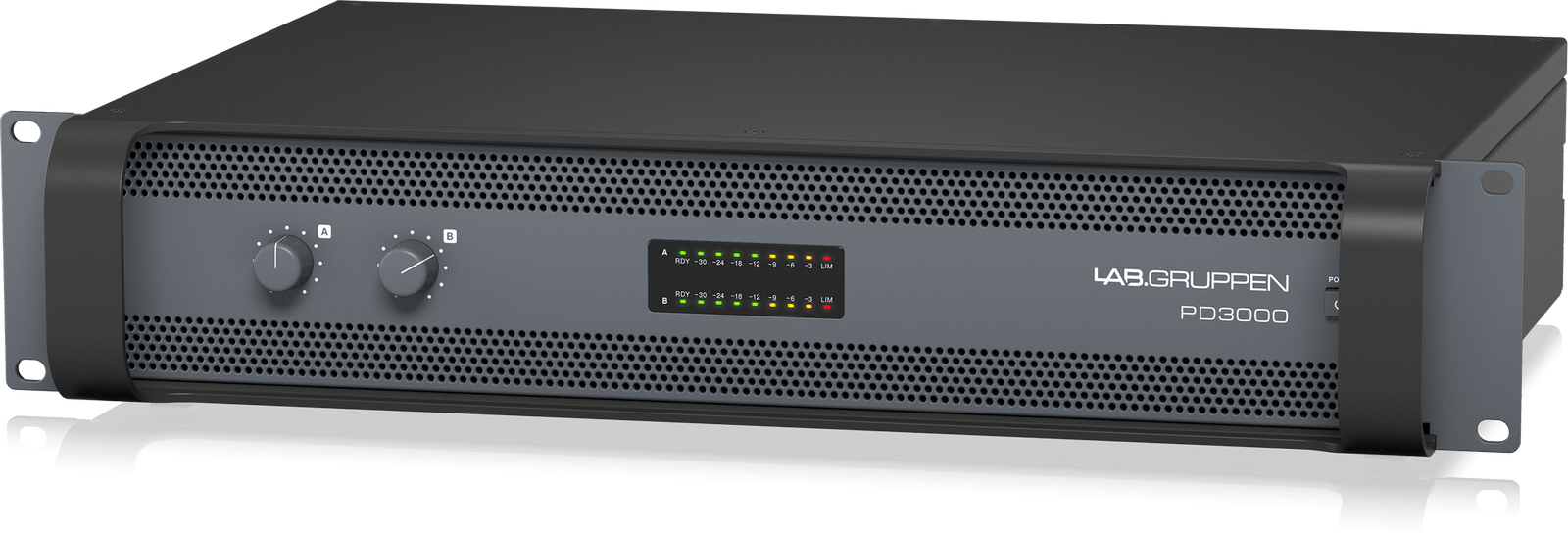

PD3000 Two-Channel Amplifier
The PD3000 is a versatile and powerful two-channel amplifier, perfect for entry to mid-level live sound applications, delivering a substantial 2 x 1500W of power. This amplifier ensures optimal efficiency with its unique IDEEA Class-D output stage, providing consistent performance across various impedance loads. The permanently bridged output design minimizes thermal losses while ensuring high voltage swing, making it a reliable choice for rigorous sound environments.
Features
- 2 x 1500W power output for robust sound coverage
- Accurate 8-segment signal and limit LEDs for performance monitoring
- Class-D amplifier for high efficiency and reliability
- Integrated crossover with multiple modes
- Comprehensive circuit protection
- Speaker Protect Limiter for safe operation
- Balanced XLR and TRS inputs
- Rugged and lightweight chassis
Specifications
| Category | Specification | Details |
|---|---|---|
| General | Number of amplifier channels | 2 |
| General | Peak total output all channels driven | 3000 W |
| General | Peak output voltage per channel | 115 V |
| General | Peak output current per channel | 32 A |
| Amplifier Outputs | 2 Ω per channel, stereo | 1000 W |
| Amplifier Outputs | 4 Ω per channel, stereo | 1500 W |
| Amplifier Outputs | 8 Ω per channel, stereo | 800 W |
| Audio Performance | THD+N 20 Hz – 20 kHz @ 1 W | < 0.1% |
| Audio Performance | Signal-to-noise | >90 dB |
| Audio Performance | Frequency response | 10 Hz to 20 kHz, +0.5/ -1 dB |

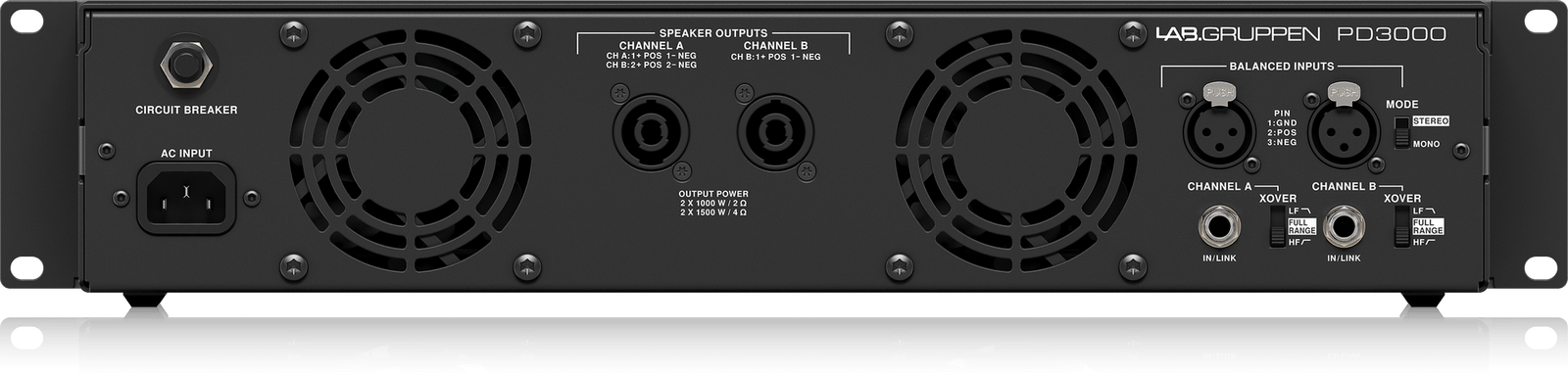

| System | Controls (Front) | Power switch, Gain controls (channels A and B) |
| System | Controls (Rear) | Stereo/Mono switch, Xover: LF/full range/HF switch |
| System | Indicators | Power, Limit, Signal, Thermal Warning, Fault LEDs |
| System | Connectors (Inputs/Link) | 2 x XLR, 2 x 1/4″ TRS |
| System | Outputs | Neutrik speakON (2 x NLT4) |
| System | Mains connector | Locking IEC appliance inlet, C14 |
| Power Supply | Voltage | Separate 230 V and 115 V versions available |
| Power Supply | USA/Canada/Japan | 100-120 V, 50/60 Hz |
| Power Supply | UK/Australia/Europe/Korea/China | 220-240 V, 50/60 Hz |
| Dimensions / Weight | Dimensions (H x W x D) | 93 x 483 x 326 mm (3.7 x 19 x 12.8″) |
| Dimensions / Weight | Weight | 6.5 kg (14.3 lbs) |
| Dimensions / Weight | Finish | Black painted aluminium chassis and grey front |
| Approvals | Compliance | CE, cTUVus, PSE, RCM, CCC, FCC |
