Lab Gruppen E 12:2 1200W 2-Channel Amplifier Energy Star Certified
4,814.25 AED Included (5% UAE VAT)
The E 12:2 showcases advanced smart green credentials with an emphasis on cost-effective ownership, featuring low current draw during operation, reduced power consumption during idle periods, and adherence to Energy Star certification standards, all while maintaining high output levels and the exceptional sonic performance expected from Lab Gruppen products.
Model number
E 12:2
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The E 12:2 Amplifier
The E 12:2 is designed with smart green credentials to deliver a low lifetime cost of ownership.
It maintains minimal current draw during high output levels and reduces power consumption during non-operational cycles.
This Energy Star certified amplifier harnesses superior Lab Gruppen sonic performance and robust power output while meeting rigorous efficiency standards.
Features
- 1200 W amplifier with 2 flexible output channels in a 1 rack unit form factor
- Energy efficient with Energy Star certification for low lifetime running costs
- Flexible IntelliDrive for 2 x 600 W at constant voltage 70 V or low impedance (2, 4, and 8 Ohms)
- Asymmetric channel loading to maximize system efficiency
- Low power consumption and minimized heat generation
- IDEEA output stage with state-of-the-art Class-D amplifier technology
- Comprehensive fail-safe circuit protection
- Auto-standby and auto-power-on functions
- Rail Sense Limiter (RSL) to reduce signal clipping
- Built-in 50 Hz high pass filter selectable per channel

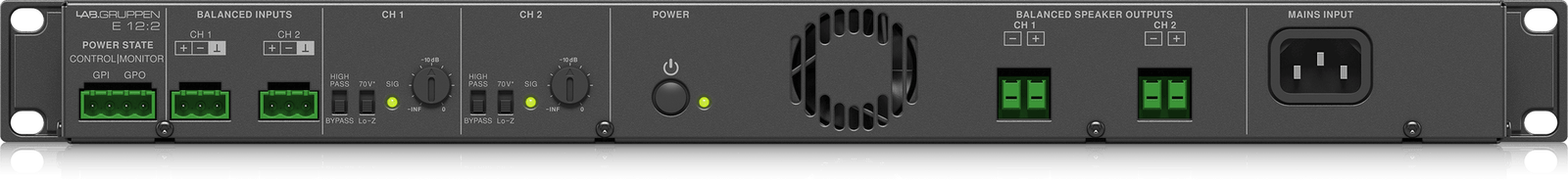

- Per-channel attenuation knob and signal LED on rear panel
- Efficient cooling with temperature-controlled fan

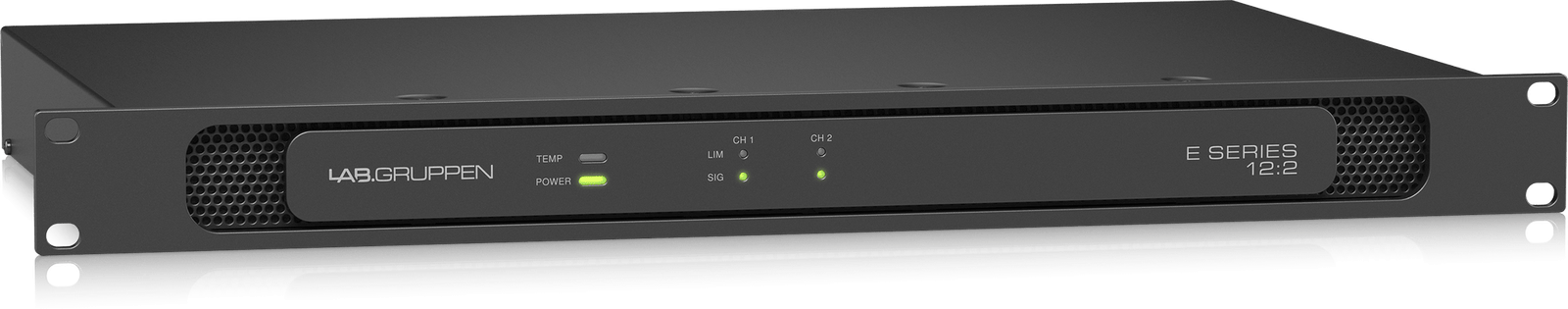

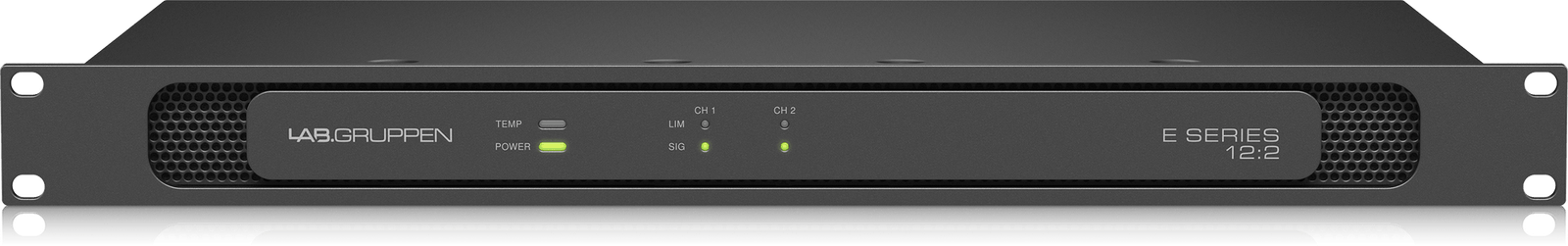

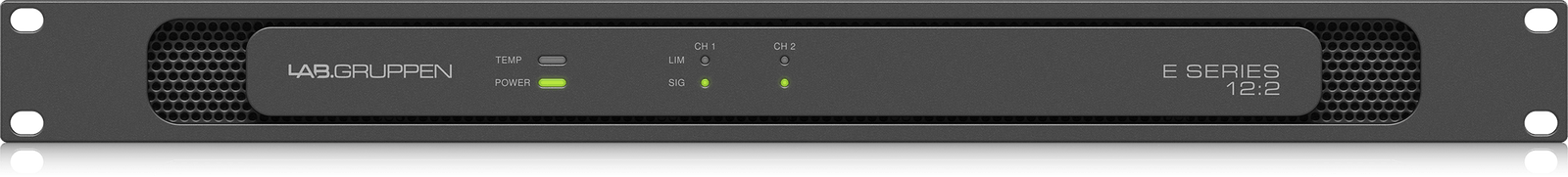

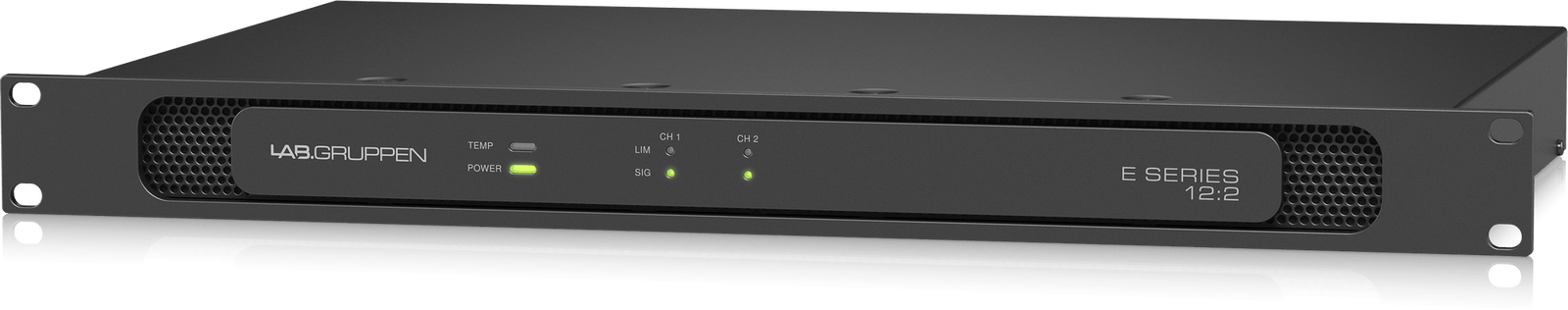

- Aluminum front panel with power and temperature LEDs
- GPIO connector with power control and indication
- Balanced analog inputs and outputs on detachable screw terminals
Specifications
| Specification | Details |
|---|---|
| Number of amplifier channels | 2 |
| Max total output all channels driven | 1200 W |
| Peak output voltage per channel | 100 V / 70 Vrms |
| Max. output current | 18 Arms |
Max output power (all channels driven)
| Load | Power Output |
|---|---|
| 2 ohms | 600 W |
| 4 ohms | 600 W |
| 8 ohms | 600 W (70 V mode) |
| 16 ohms | 310 W (70 V mode) |
| 70 V | 600 W |
| 100 V | 600 W (100 V load tapped at 1200 W) |
Performance
| Specification | Details |
|---|---|
| THD 20 Hz – 20 kHz at 1 W | <0.1% |
| THD at 1 kHz and 1 dB below clipping | <0.05% |
| Signal to Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Frequency Response | 2 Hz – 40 kHz |
| Input impedance | 20 kOhm |
| Common Mode Rejection (CMR) | 50 dB |
| Output impedance | 25 mOhm |
Dimensions & Weight
| Specification | Details |
|---|---|
| Dimensions | W: 483 mm (19”), H: 44 mm (1 U), D: 276 mm (10.9”) |
| Weight | 4.2 kg (9.3 lbs) |
Approvals
| Specification | Details |
|---|---|
| Approvals | CE, RoHS, WEEE, UL (UL 60065), CSA C22.2 NO. 60065, FCC Part 15 Subpart B Class A, PSE, CCC Energy Star |
