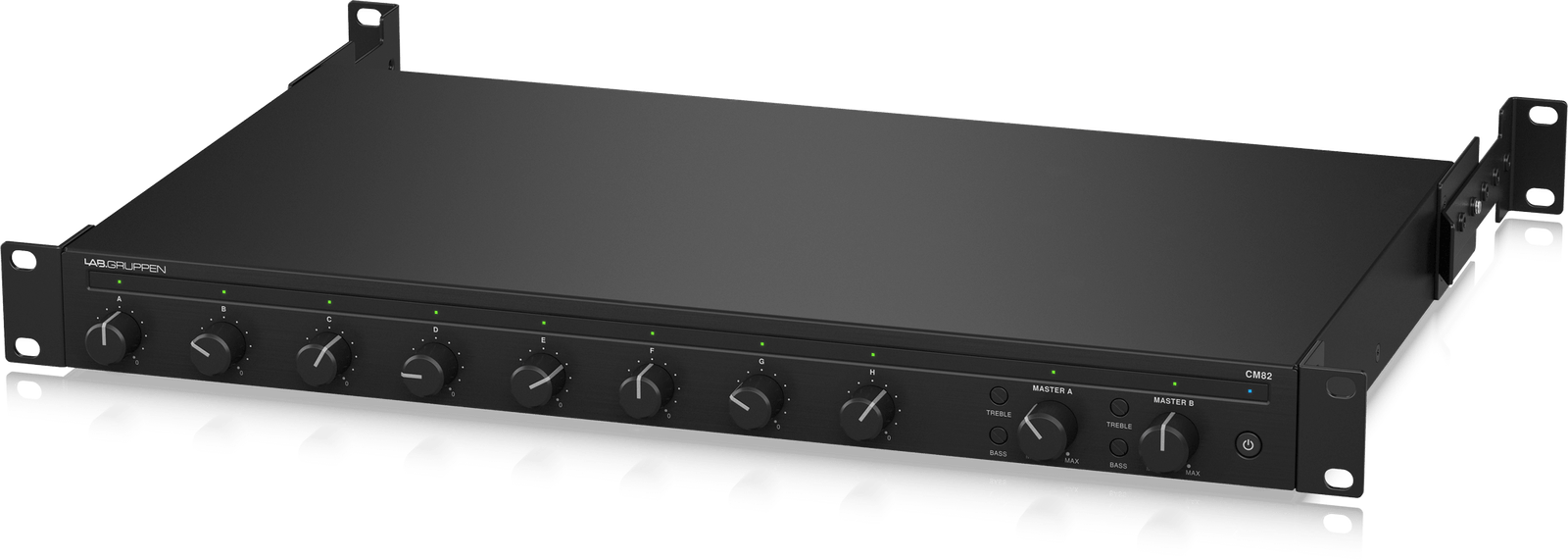

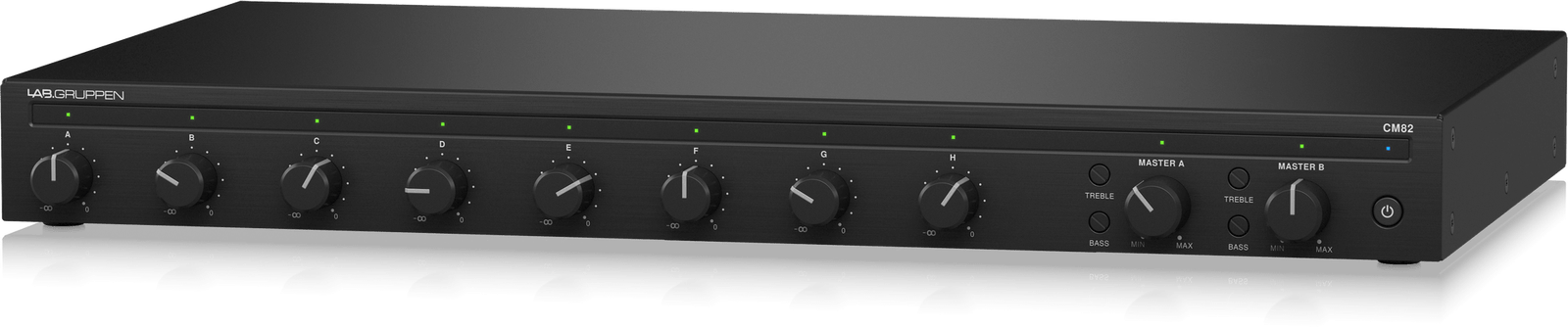

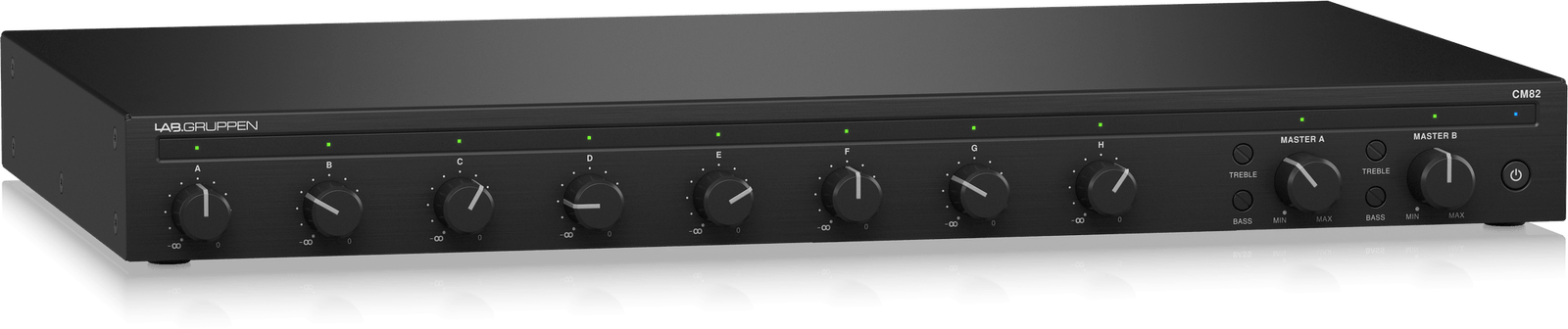

Lab Gruppen Commercial Mixer CM82 8-Input 2-Output for Venues
1,791.30 AED Included (5% UAE VAT)
The Commercial Mixer CM82 offers a reliable solution for distributing high-quality audio in various commercial and industrial settings, such as bars, restaurants, retail spaces, hotels, corporate offices, and educational facilities. Designed for easy installation and operation by non-technical users, it is perfect for background music and public address systems.
Model number
CM82
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Commercial Mixer CM82 is the ultimate solution for venues that require a reliable and high-quality distributed audio system. It is perfect for commercial and industrial applications, making it ideal for bars, restaurants, retail stores, hotels, corporate offices, educational institutions, and any other venue needing background music or a public address system. With an intuitive design that is easy to install and operate, even for non-technical personnel, the CM82 stands out in the market.
Features
- 8 input / 2 output mixer for versatile audio distribution.
- 8 mic/line inputs with individual volume controls and output routing for customized sound management.

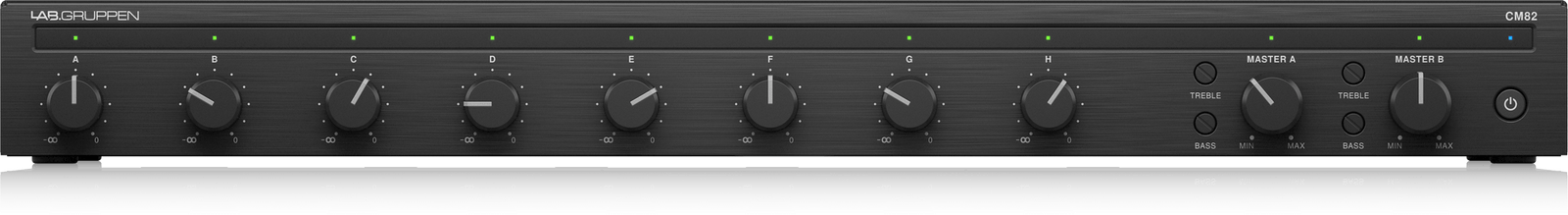

- Master volume and bass/treble controls for each output from the front panel.
- Configurable priority muting for background music override.
- Remote volume control using a standard RJ-45 connector and Ethernet cable.
- Front panel power button for immediate access and control.
- Aux output for seamless integration with additional amplifiers.
- Rack-mountable 1U, 19″ enclosure with inclusive mounting brackets.

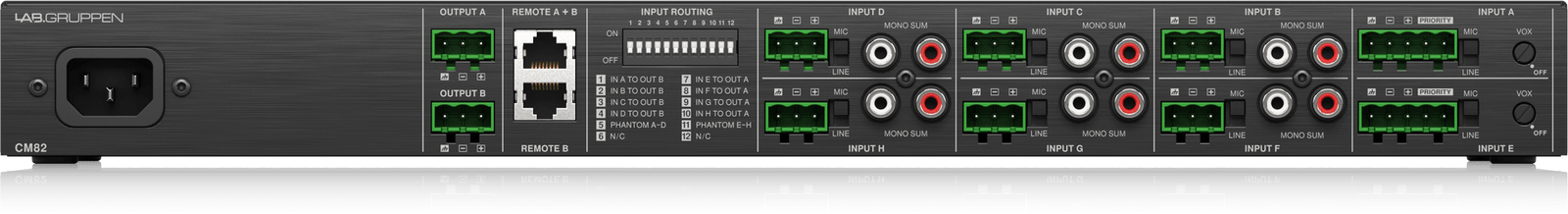

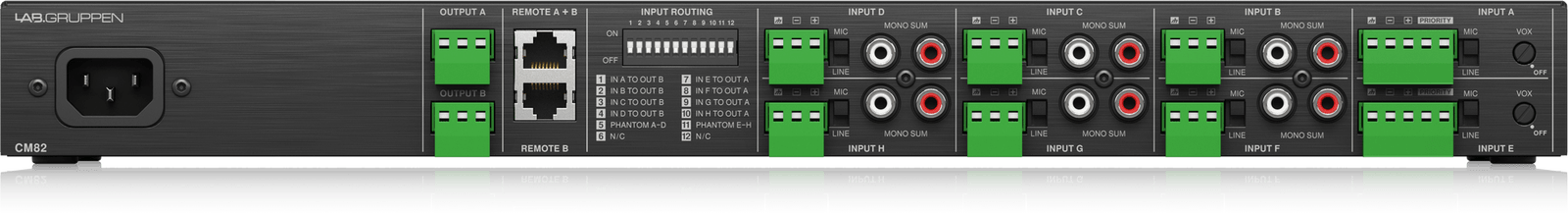

- Euroblock type mic/line input and output connectors for robust connections.
Specifications
| Specification | Details |
|---|---|
| Mixing capability | 8 inputs with configurable routing – 2 outputs |
| Mic/Line Inputs with priority | 2 x 5-pin Euroblock connector (channel A, E) |
| Mic/Line Inputs with RCA | 6 x 3-pin Euroblock, 6 x stereo RCA (channels B, C, D, F, G, H) |
| Impedance | Balanced mic/line: 20 kΩ; Unbalanced line and RCA: 10 kΩ |
| Maximum input level | 4.88 V (+16 dBu) |
| Microphone phantom power | 48 V |
| Output | 2 x 3-pin Euroblock connector |
| Gain range | -∞ to +10 dB |
| Output max level | 9.6 V (+22 dBu) |
| Front controls | Power standby button, input and output gain control, bass and treble tone controls |
| Rear controls | mic/line switch, VOX/ducking threshold control, phantom power, input routing (2-channel models only) |
| Tone control | Bass: ±10 dB @ 100 Hz; Treble: ±10 dB @ 10 kHz |
| Power indicators | On: blue; Standby: yellow; Force standby: red |
| Input signal indicators | Signal: >12.3 mV (-36 dBu) green LED; Clip: 4.88 V (+16 dBu) red LED |
| Master signal indicators | Signal: >-50 dBu green LED; Limit: 3 V (+12 dBu) red LED |
| Remote connector | 2 x RJ45 Ethernet connector |
| Distortion | <0.05% |
| Frequency response | 20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk | >70 dB |
| Signal-to-noise ratio | >97 dBA |
| Main voltage | Universal 100-240 V~, 50/60 Hz |
| Fuse | T 3.15 A H 250 V |
| Power consumption | 20 W |
| Dimensions (H x W x D) | 44 x 437 x 248 mm (1.7 x 17.2 x 9.8 inches) |
| Weight | 2.4 kg (5.3 lbs) |
| Finish | Brushed black anodized aluminum chassis with black painted steel bottom |
| Compliance | CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B |
