Lab Gruppen Commercial Mixer CM41 4-Input 1-Output with Priority Muting
1,373.40 AED Included (5% UAE VAT)
The Lab.Gruppen CM41 is a versatile four-input, one-output commercial mixer designed for distributed audio in various venues, including bars, restaurants, retail locations, hotels, corporate settings, and educational institutions. It features a configurable priority muting function for seamless background music override, ideal for announcements.
Model number
CM41
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

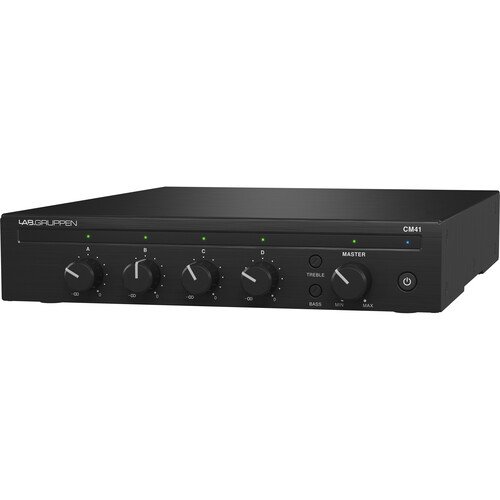

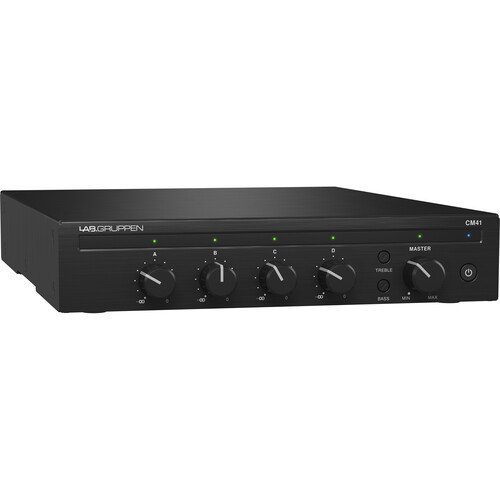

Lab.Gruppen CM41 Commercial Mixer
The Lab.Gruppen CM41 is a four-input, one-output commercial mixer well suited for distributed audio in bars, restaurants, retail destinations, hotels, corporate, education, or other venues needing background music and/or a public-address system. The mixer offers a configurable priority muting function for background music override, great for making announcements.

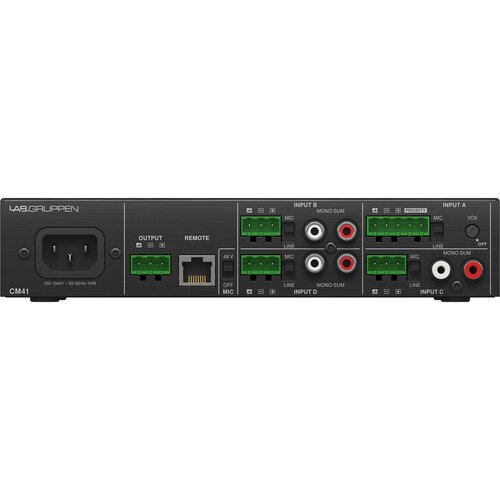

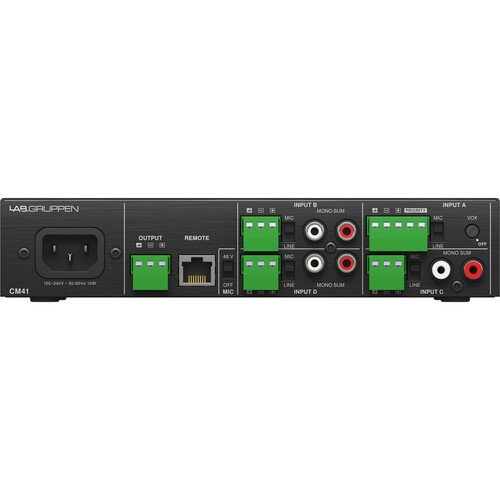

The rear panel offers four mic/line input channels that sum to mono. Channel A features a 3-pin Euroblock input with two additional pins that activate the priority function when shorted together. Channels B, C, and D offer balanced 3-pin Euroblock connectors and a pair of unbalanced RCA connectors (summed to mono) for connecting stereo sources such as players, phones, computers, and more. A 3-pin Euroblock output is provided for connecting to additional devices. The RJ45 port allows the mixer to be controlled via Ethernet from a broad range of remote-control options, such as the CRC-V Series of wall-mount controllers and the stylish tabletop controller, the LAB.Level (sold separately).
Key Features
- 4 input / 1 output mixer for commercial and industrial applications
- 4 mic/line inputs with individual volume controls

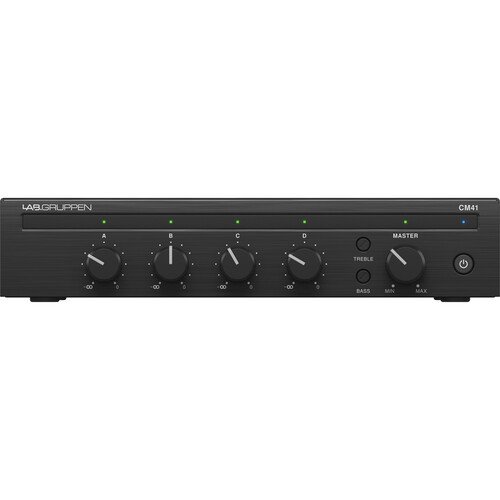

- Individual front panel master volume and bass/treble controls
- Configurable priority muting function for background music override
- GPI remote volume control using standard RJ-45 connector and Ethernet cable
- Front panel power control button for direct access
- Aux output for expansion to connect with amplifiers

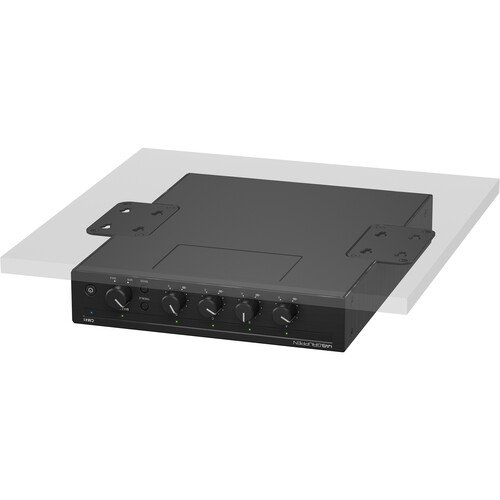

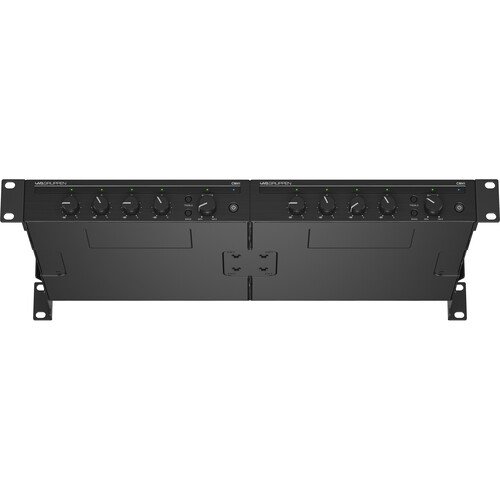

- Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
- Euroblock type mic/line input and output connectors
Specifications
Mixer
| Mixing capability | 4 inputs – 1 output |
Audio Inputs
| Mic/Line with priority/ducking input | 1 x 5-pin Euroblock connector (channel A) |
| Mic/Line with summed RCA | 3 x 3-pin Euroblock connector, 3 x stereo RCA (channel B, C, D) |
| Impedance | Balanced mic/line: 20 kΩ Unbalanced line and RCA: 10 kΩ |
| Maximum input level | 4.88 V (+16 dBu) |
| Microphone phantom power | 48 V |
Audio Outputs
| Output | 3-pin Euroblock connector |
| Gain range | — infinity sign – +10 dB |
| Output max level | 9.6 V (+22 dBu) |
Controls
| Front | Power standby button, input and output gain control, tone controls – bass and treble |
| Rear | mic/line switch, vox/ducking threshold control, phantom power, input routing (2-channel models only) |
Tone Controls
| Bass | ±10 dB @ 100 Hz |
| Treble | ±10 dB @ 10 kHz |
Indicators
| Power | On (blue), force standby (red), standby (yellow) |
| Inputs | |
| Signal (green LED) | >12.3 mV (-36 dBu) |
| Clip (red LED) | 4.88 V (+16 dBu) |
| Master | |
| Signal (green LED) | >-50 dBu |
| Limit (red LED) | 3 V (+12 dBu) |
System
| Remote connector | 1 x RJ45 Ethernet connector |
Performance
| Distortion | <0.05% |
| Frequency response | 20 Hz to 20 kHz, +0.5 / -1 dB |
| Crosstalk (2 channel models) | >70 dB |
| Signal-to-noise | >97 dBA |
Power Supply, Voltage (Fuse)
| Power Supply, Voltage (Fuse) Main voltage | Universal 100-240 V~, 50/60 Hz |
| Fuse | T 3.15 A L 250 V |
| Power consumption | 10 W |
| Mains connector | Standard IEC connector |
Dimensions / Weight
| Dimensions (H x W x D) | 44 x 218 x 299 mm (1.8 x 8.6 x 11.8″) |
| Weight | 2.1 kg (4.6 lbs) |
| Finish | Brushed black anodized aluminum chassis with black painted steel bottom |
| Approvals | CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B |
