Lab Gruppen CA602 2x60W Commercial Amplifier Energy Star Certified
1,230.60 AED Included (5% UAE VAT)
The CA602 2 x 60-Watt Commercial Amplifier offers an efficient solution for commercial audio needs with its 2 independent channels, supporting both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations. Ideal for venues such as bars, restaurants, hotels, and educational institutions, it delivers high-quality sound with ease of installation and operation.
Model number
CA602
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
CA602 2 x 60-Watt Commercial Amplifier
Discover the CA602, the ideal amplifier designed for commercial and industrial environments. With its exceptional audio quality and energy-saving features, this amplifier is perfect for various applications, including restaurants, hotels, and educational institutions. The CA602 is straightforward to install and operate, offering robust performance and versatility.
Key Features
- 2 x 60 Watt power output
- Compatible with both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations
- Energy Star certified for reduced operational cost
- Direct drive technology for enhanced audio performance
- Remote volume control via GPI using a standard RJ-45 connector

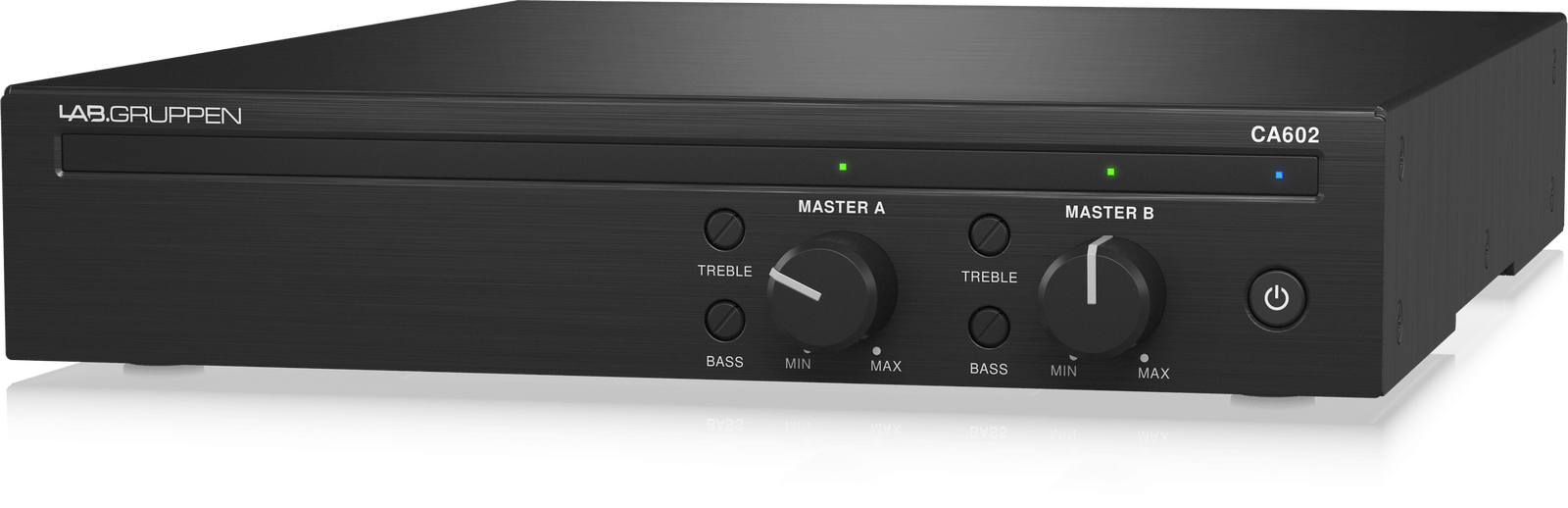

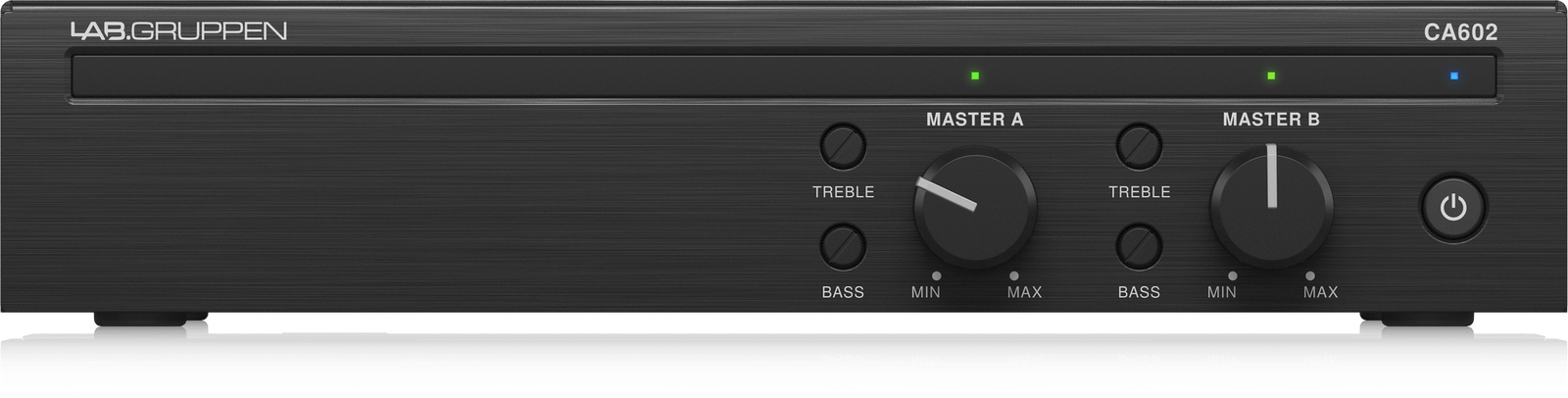

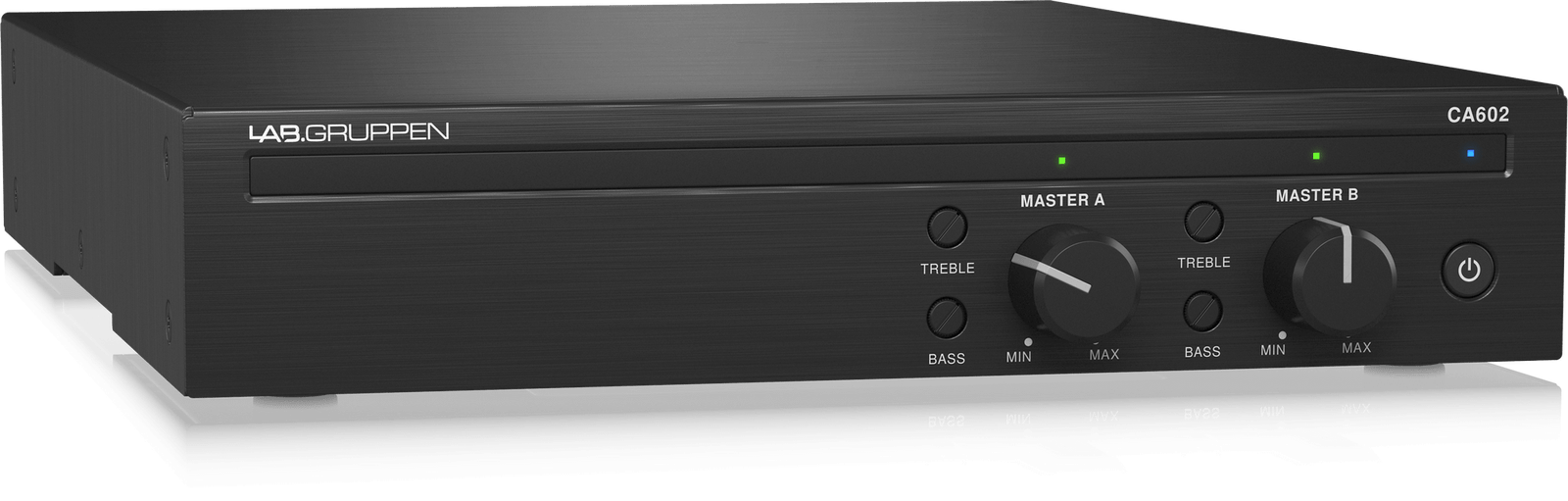

- Front panel master volume and bass/treble controls
- Auto Ramp circuitry for efficient power management
- Convection-cooled with fan-less design for low noise
Specifications
| Category | Specification | Details |
|---|---|---|
| Amplifier | Number of Channels | 2 |
| Amplifier | Power Rating | 2 x 60 W Peak |
| Amplifier | Amplifier Class | Class-D |
| Amplifier | Load Impedance / Voltage | 4/8 Ohms and 70/100 V per Channel |
| Performance | Protections | DC Fault, Overcurrent, Thermal, Ultrasonic |
| Performance | Frequency Response | 20 Hz to 20 kHz +0.5/-1 dB |
| Performance | Input Sensitivity | Euroblock Line: 1.23 V, RCA Line: 0.62 V |
| Performance | Input Impedance | 20 Kilohms (Balanced), 10 Kilohms (Unbalanced) |
| Performance | Max Input Level | +22 dBu / 9.75 V |
| Performance | SNR | > 97 dBA |
| Performance | Distortion | < 0.05% |
| Performance | Crosstalk | > 85 dB |
| Signal Processing | Crossover | Yes |
| Signal Processing | EQ | 2-Band Shelving EQ per Channel |
| Signal Processing | Filters | 1 x High-Pass at 80 Hz |
| Signal Processing | Ducking/Muting | No |
| Signal Processing | Limiting | Output |

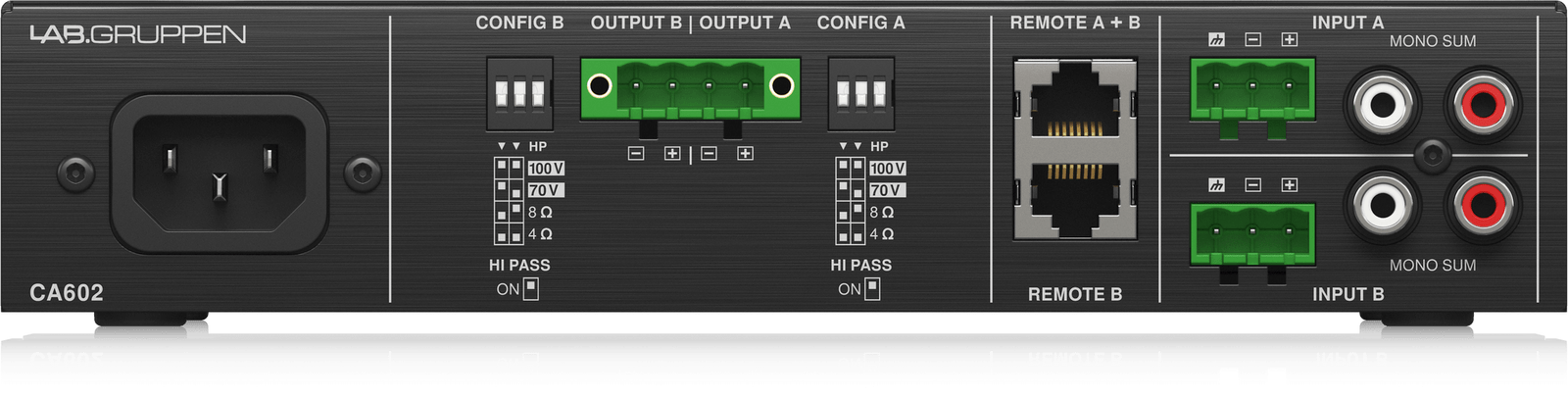

| Connectivity | I/O | 2 x Block 3-Pin Female Balanced Line Input, 2 x 2RCA TS Female Unbalanced Line Input |
| Connectivity | Digital I/O | None |
| Connectivity | USB | None |
| Power | AC Input Power | Universal: 100-240 VAC, 50/60 Hz |
| Power | AC Power Connector | 1 x IEC 15 A / NEMA 5-15 |
| Power | Power Consumption | 60 W (1/8 Power at 4 Ohms) |

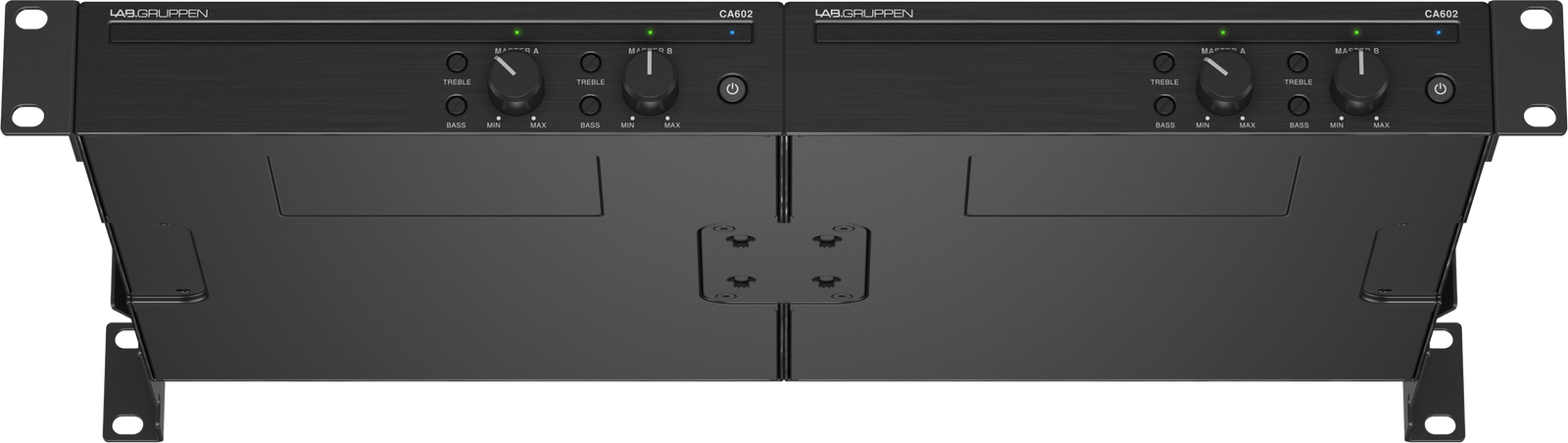

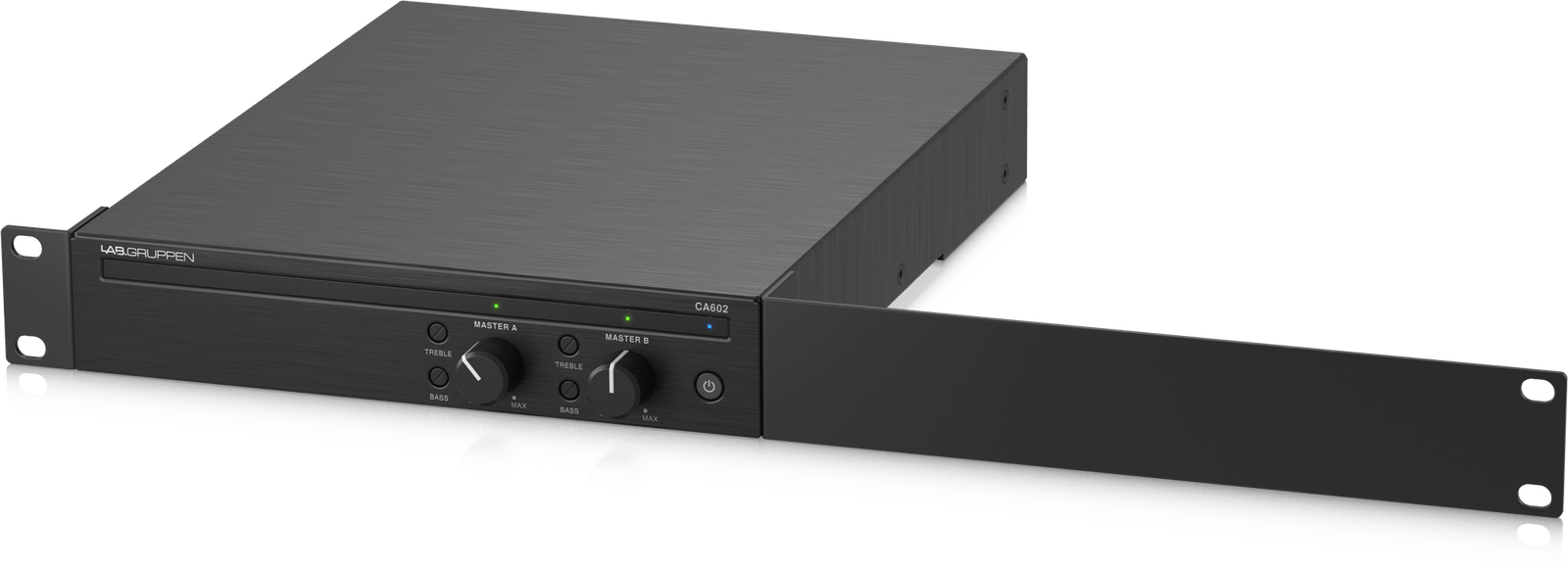

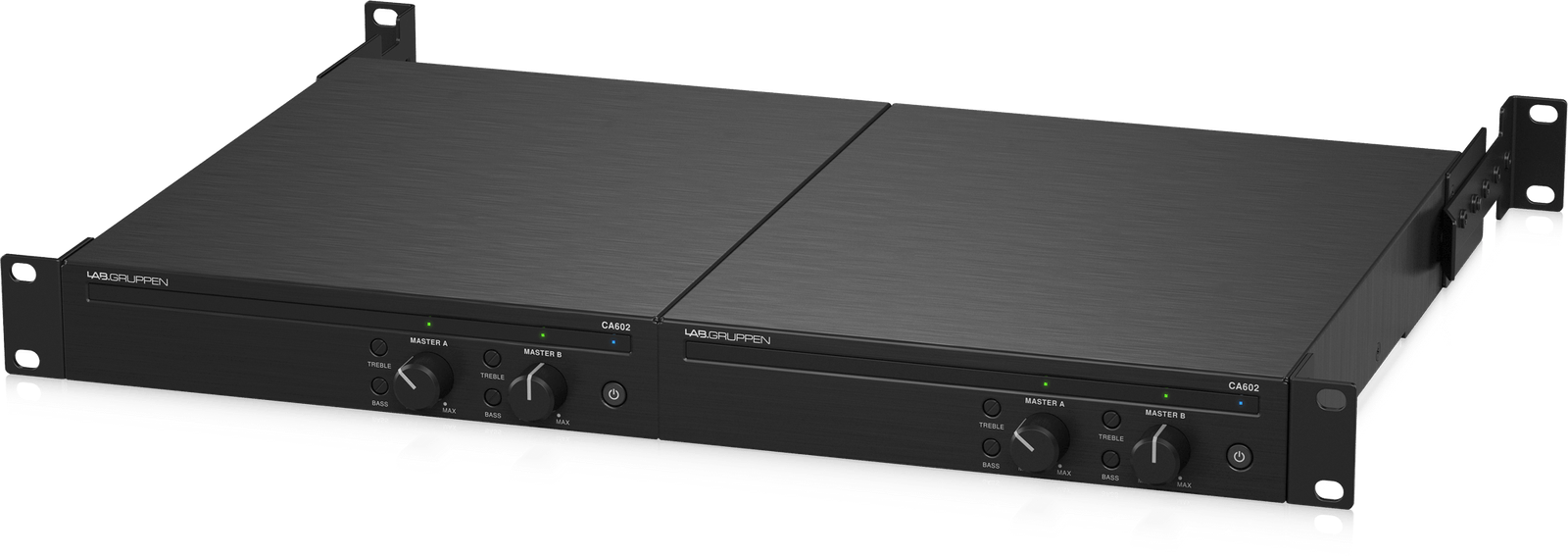

| Physical | Rackmount Size | 1 RU (with Included Hardware) |
| Physical | Cooling | Convection |
| Physical | Certifications | CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus |
| Physical | Dimensions | 8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7 mm |
| Physical | Weight | 4.9 lb / 2.2 kg |
| Packaging Info | Package Weight | 6.56 lb |
| Packaging Info | Box Dimensions (LxWxH) | 15.6 x 11.4 x 4.5″ |
