Lab Gruppen CA1201 120W Commercial Amplifier Energy Star Certified
1,403.85 AED Included (5% UAE VAT)
The CA1201 120-Watt Commercial Amplifier is designed for versatile audio distribution in various commercial settings, delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) configurations. Its ease of installation and operation make it suitable for non-technical users, ideal for venues such as bars, restaurants, retail spaces, and educational institutions where background music or public address systems are needed.
Model number
CA1201
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The CA1201 120-Watt Commercial Amplifier provides the perfect solution for commercial and industrial applications requiring great sounding distributed audio coupled with power conservation and reduced operating expense. Capable of delivering high-quality sound over both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations offering extreme flexibility on every channel. The CA1201 is easy to install and operate – even for non-technical personnel. Simply put, the CA1201 is ideal-suited for bars & restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
Key Features
- 120 Watt amplifier for commercial and industrial applications
- Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
- Energy Star* certified design conserves energy and drastically reduces operational cost
- Direct drive, constant power technology for superior audio performance and reliability
- GPI remote volume control using standard RJ-45 connector and Ethernet cable

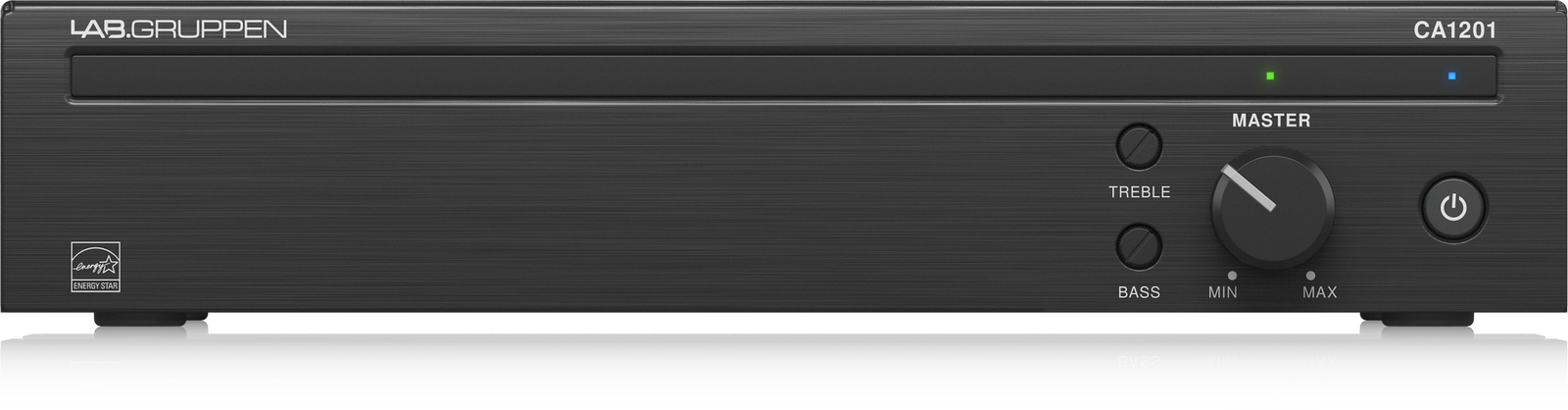

- Individual front panel master volume and bass/treble controls
- Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
- Front panel power control button for direct access

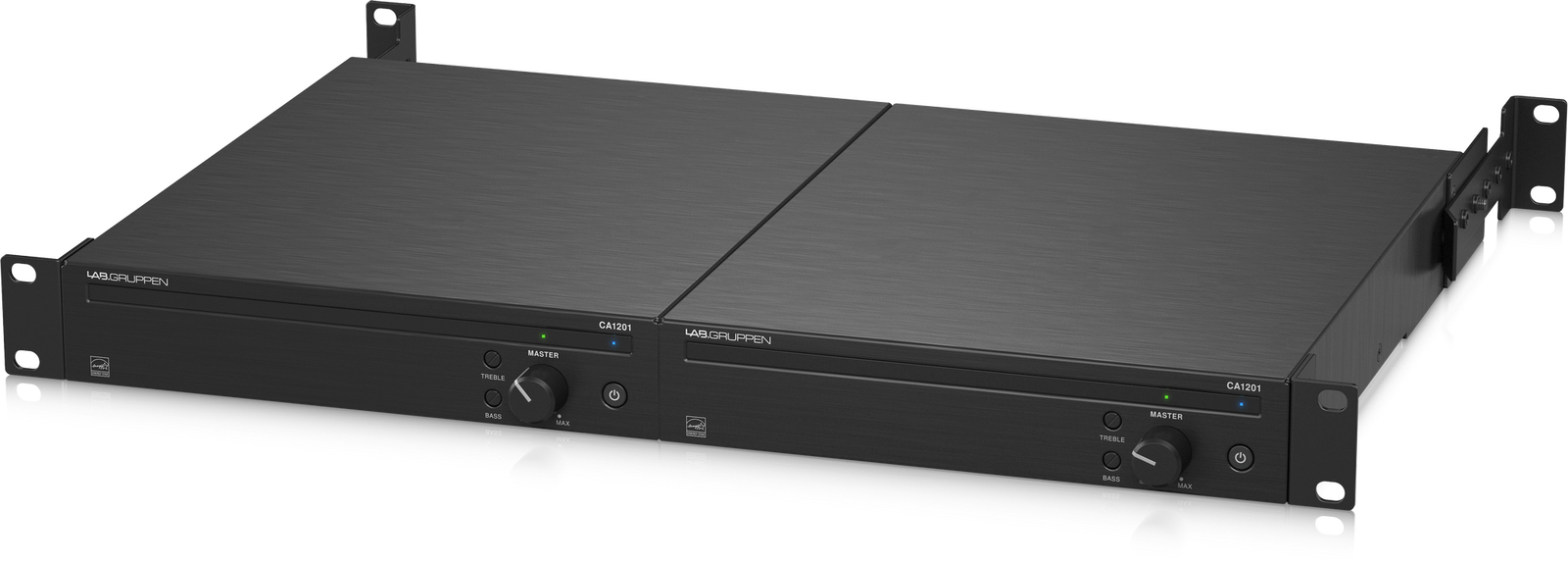

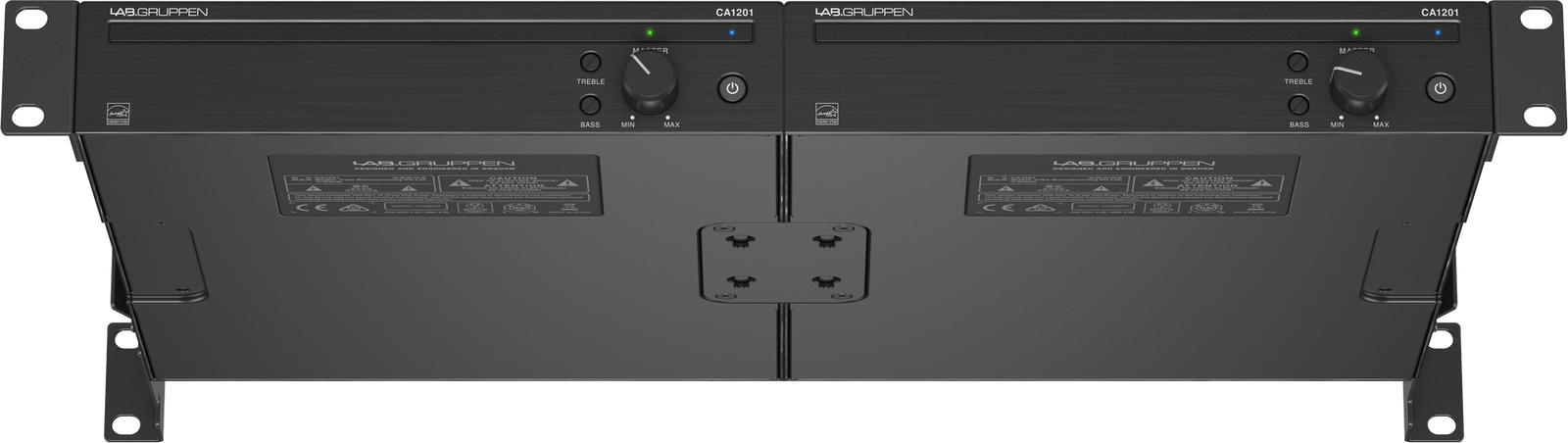

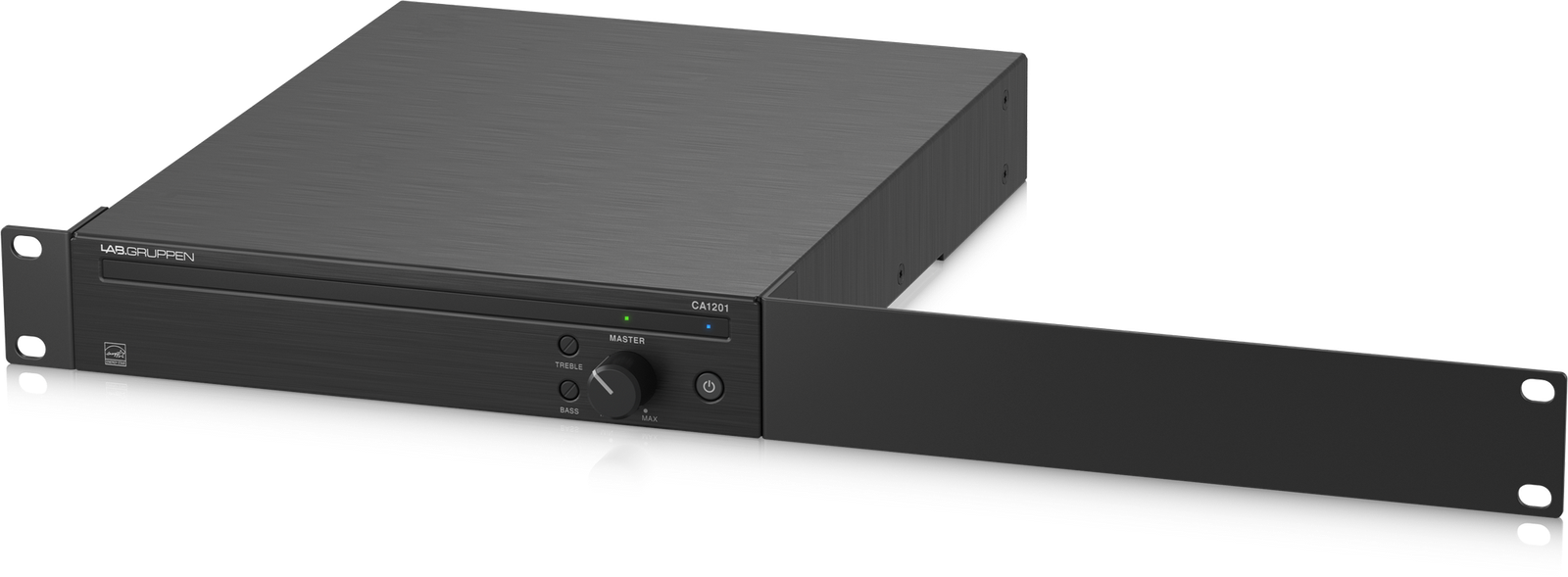

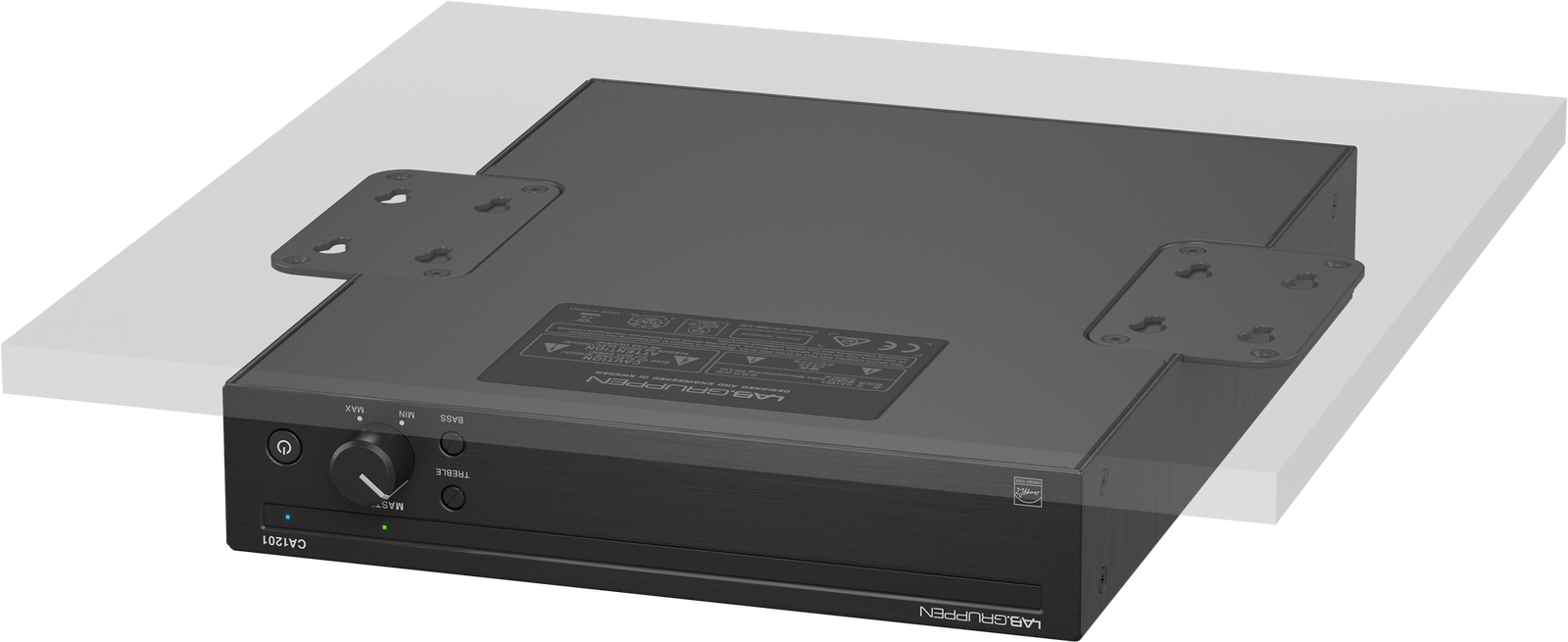

- Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
- Euroblock type amplifier input and output connectors
- Convection-cooled, fan-less amplifier technology for low noise
Specifications
| Specification | Details |
|---|---|
| Number of Channels | 1 |
| Power Rating | 4 Ohms / 8 Ohms / 70 V / 100 V: 1 x 120 W Peak |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | Mono: 4 / 8 Ohms (Minimum) Mono: 70 / 100 V (Minimum) |
| Protections | DC Fault, Overcurrent, Thermal, Ultrasonic |
| Frequency Response | 20 Hz to 20 kHz +0.5/-1 dB |
| Input Sensitivity | Euroblock Line: 1.23 V RCA Line: 0.62 V |
| Input Impedance | Euroblock Line: 20 Kilohms (Balanced) Euroblock, RCA Line: 10 Kilohms (Unbalanced) |
| Max Input Level | +22 dBu / 9.75 V |
| SNR | > 97 dBA |
| Distortion | < 0.05% |
| Crossover | Yes |
| EQ | 2-Band Shelving EQ per Channel |
| Filters | 1 x High-Pass: 80 Hz |
| Ducking/Muting | No |
| Limiting | Output |

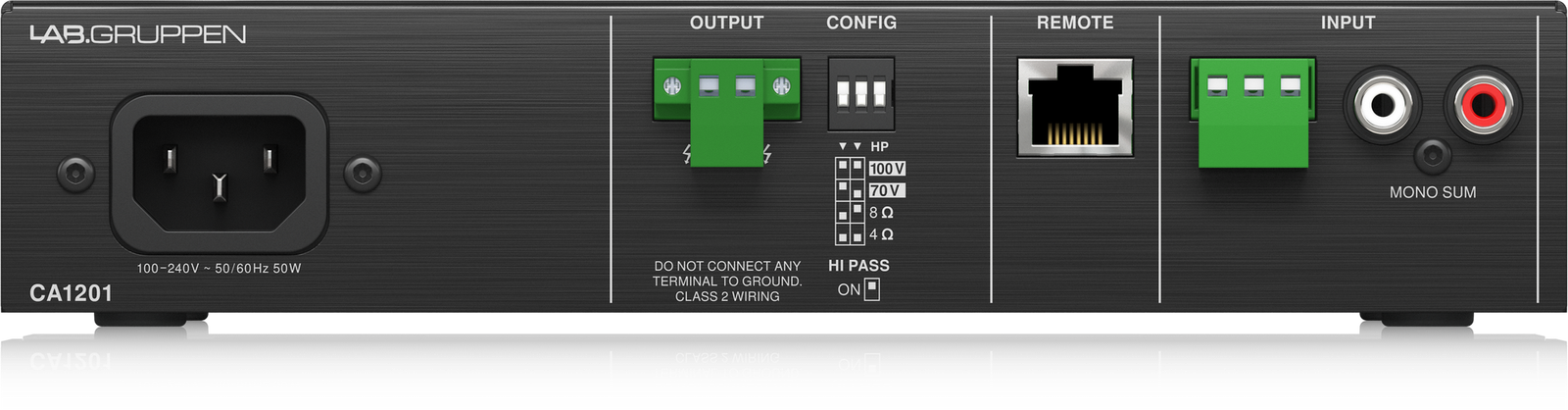

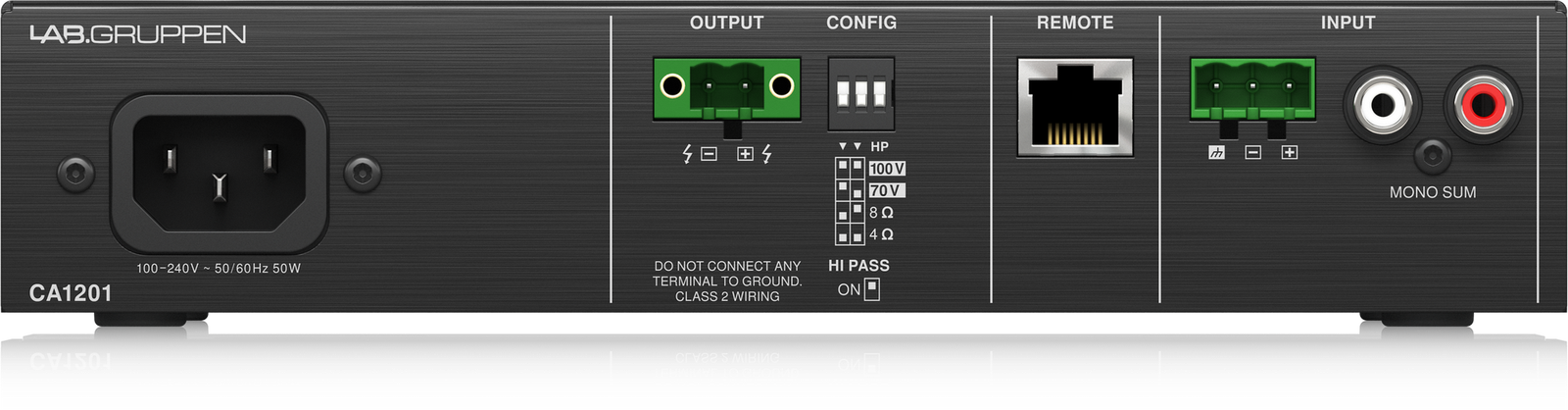

| I/O | 1 x Block 3-Pin Female Balanced Line Input 1 x 2RCA TS Female Unbalanced Line Input |
| Digital I/O | None |
| USB | None |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz (T 3.15 A L 250 V) |
| AC Power Connector | 1 x IEC 15 A / NEMA 5-15 |
| Power Consumption | 4 Ohms: 50 W (1/8 Power) |
| Rackmount Size | 1 RU (with Included Hardware) |
| Cooling | Convection |
| Certifications | CCC, CE, ENERGY STAR, PSE, RoHS, cTUVus, as per Manufacturer |
| Dimensions | 8.6 x 1.7 x 11.8″ / 218.4 x 43.2 x 299.7 mm |
| Weight | 5.1 lb / 2.3 kg |
| Package Weight | 6.16 lb |
| Box Dimensions (LxWxH) | 15.5 x 11.4 x 4.5″ |
