Proudly designed and assembled in Hope, Arkansas, the Klipsch RF-7 III floorstanding speaker brings Klipsch’s legendary high-efficiency sound to demanding home audio and home theatre systems. The RF-7 III upgrades include an all-new 1.75″ titanium diaphragm compression driver, a redesigned 90°x90° compressed molded-rubber Tractrix horn, dual 10″ cast-basket Cerametallic woofers, a redesigned bifurcated cabinet and dual Tractrix ports for superior bass output and low distortion.

Key features

  • All-new 1.75″ titanium diaphragm compression driver
  • 90° × 90° compressed molded-rubber Tractrix® horn
  • Redesigned bifurcated cabinet for improved imaging
  • Dual Tractrix ports for efficient low-frequency transfer
  • Dual 10″ cast-basket Cerametallic woofers
  • Premium furniture-grade wood veneers (Black Ash, Cherry, Walnut)
  • Assembled in Hope, Arkansas, USA

Specifications

Specification Details
Frequency Response 32 – 25,000 Hz ±3 dB
Sensitivity 100 dB @ 2.83V / 1m
Power Handling (continuous / peak) 250 W / 1000 W peak
Nominal Impedance 8 ohms compatible
Crossover Frequency 1,300 Hz
High-Frequency Driver 1.75″ (4.45 cm) titanium diaphragm compression driver
High-Frequency Horn 8.5″ square 90° × 90° Tractrix® horn mated to K-703-M horn
Low-Frequency Driver Two 10″ (25.4 cm) Cerametallic cone woofers (cast-basket)

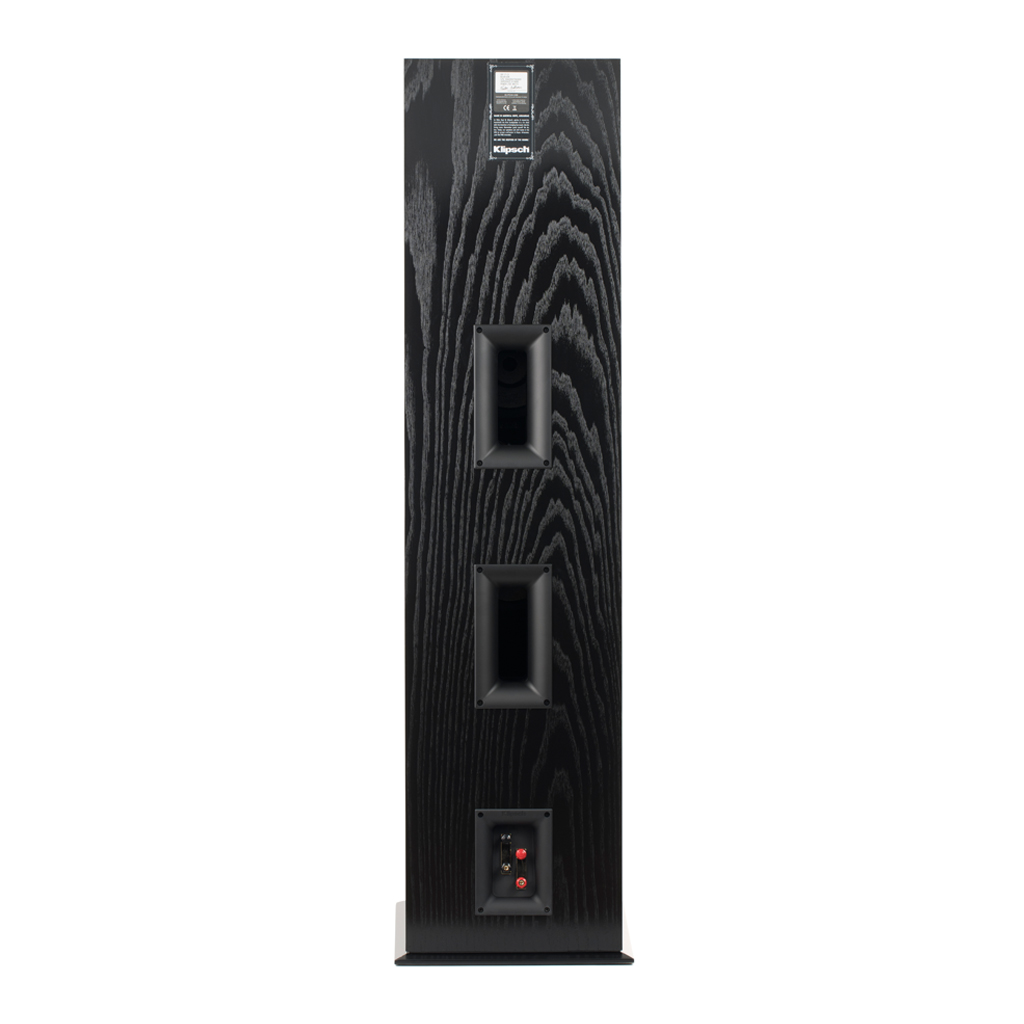

Enclosure Type Dual-chambered, bass-reflex — via dual rear-firing Tractrix ports
Inputs Dual binding posts (bi-wire / bi-amp)
Height 49″ (124.5 cm) including plinth
Width 3.875″ (35.2 cm) including plinth
Depth 17.875″ (45.4 cm) including plinth
Weight 97 lbs (44.1 kg)
Finish / Colour options Black Ash, Natural Cherry, Walnut (furniture-grade veneers)
Manufacturer Klipsch (Reference Series)
Country of assembly Assembled in Hope, Arkansas, USA
