Klark Teknik DS 50 Passive Signal Splitter 1-In 5-Out High Headroom
248.85 AED Included (5% UAE VAT)
The KLARK TEKNIK DS 50 PRO SPLITTER 5 is designed for routing balanced XLR signals to up to five destinations such as FOH and monitor consoles, active monitor loudspeakers, and broadcast mixers. This passive device delivers high headroom, dynamic response, and sonic clarity without the need for external power, making it ideal for professional audio and multimedia applications.
Model number
DS 50
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

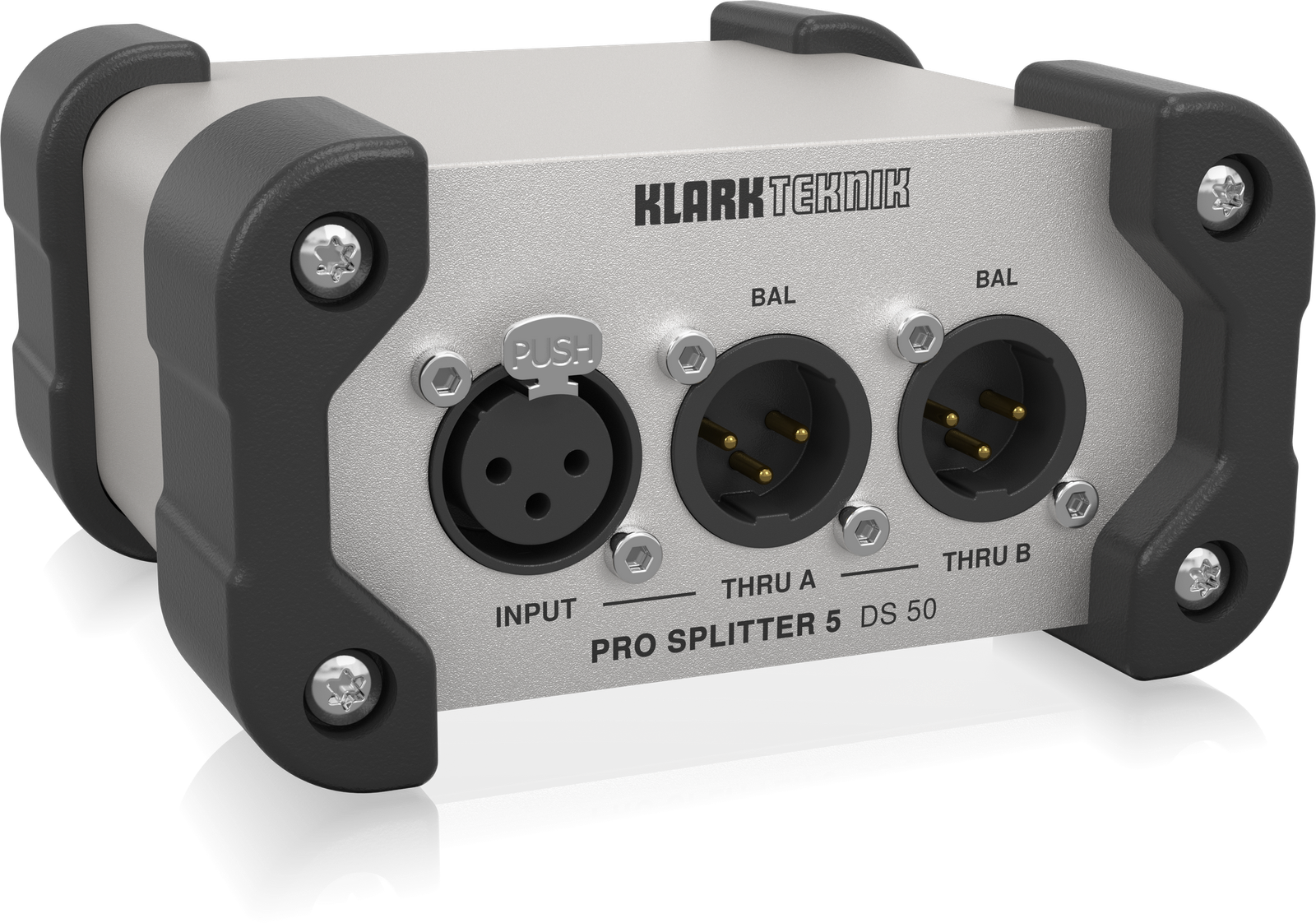

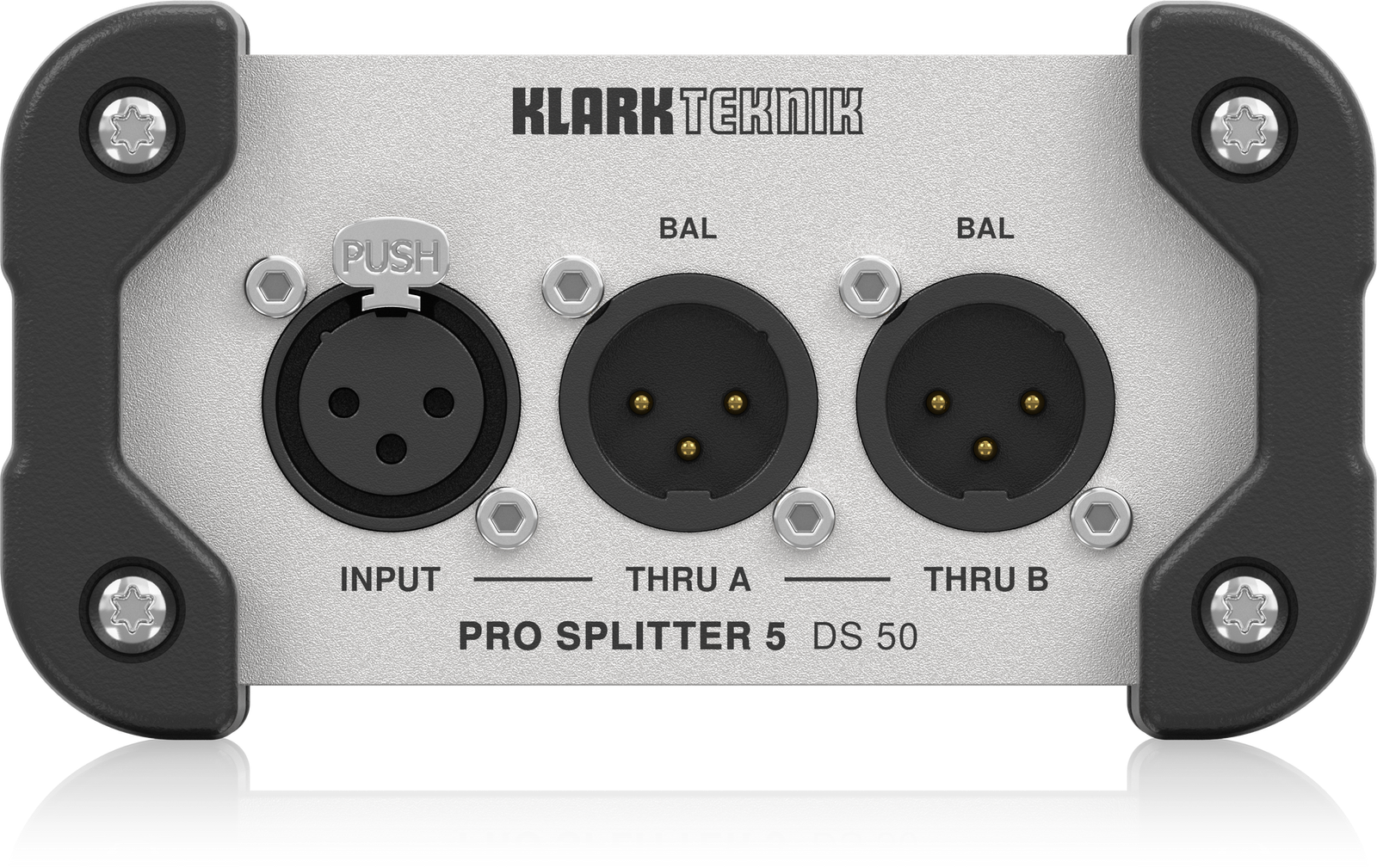

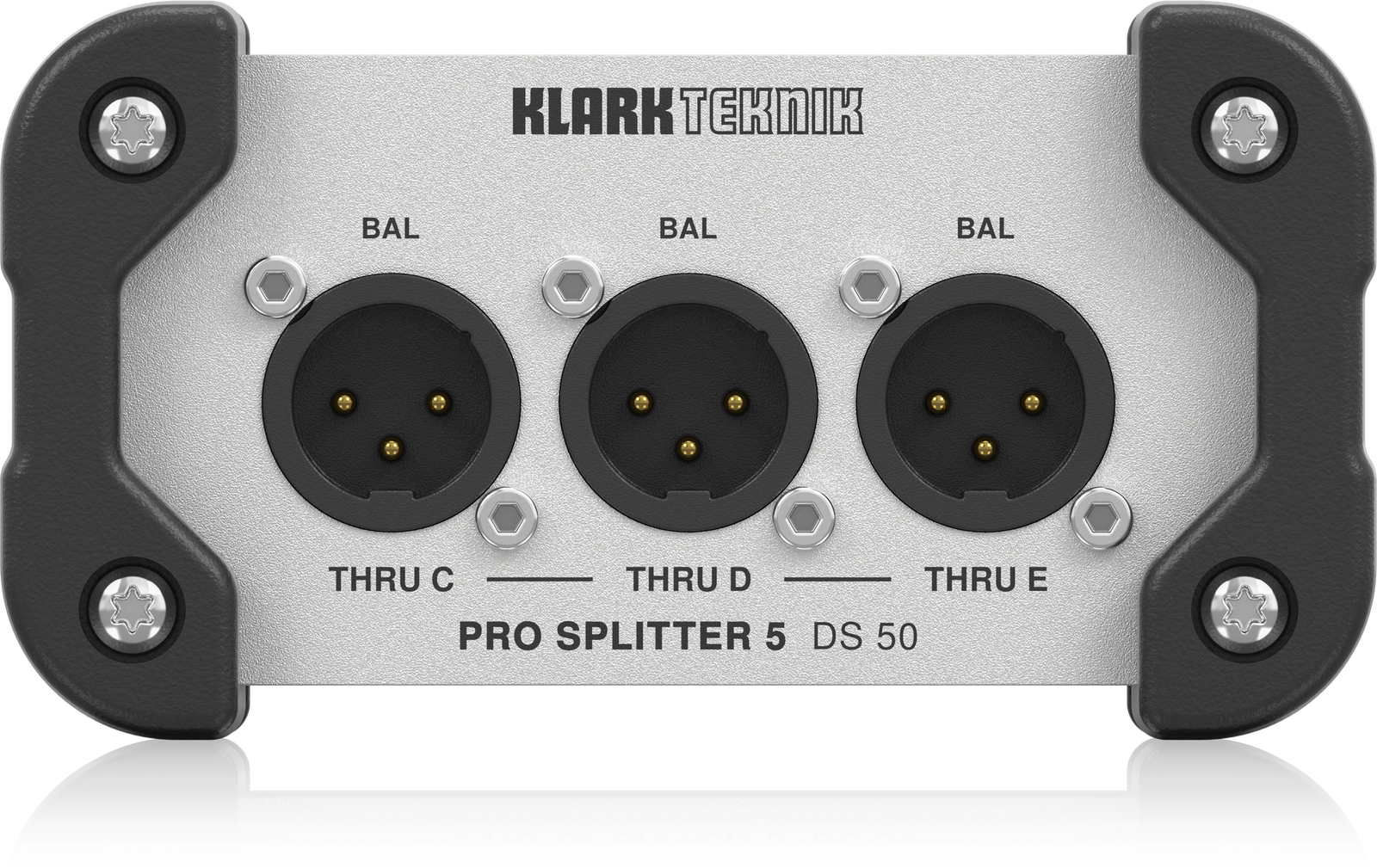

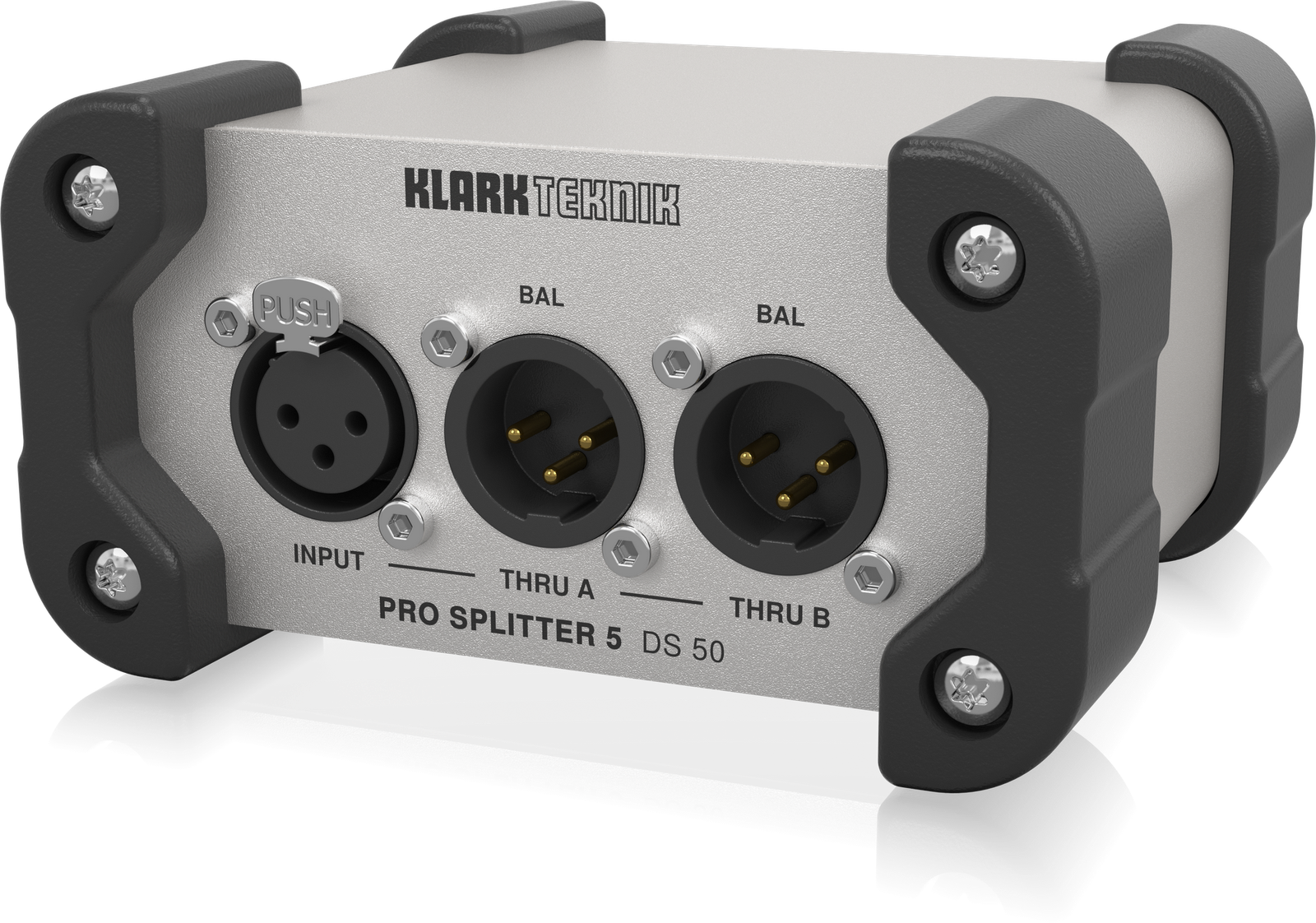

KLARK TEKNIK DS 50 PRO SPLITTER 5
The KLARK TEKNIK DS 50 PRO SPLITTER 5 is an exceptional device for audio professionals who demand high headroom, dynamic response, and unparalleled sonic clarity. Faithfully delivering these qualities, the DS 50 enables the routing of balanced XLR signals to up to 5 discrete destinations, including front-of-house (FOH) and monitor consoles, active monitor loudspeakers, broadcast mixers, and more. This versatile passive splitter does not require any external power, making it an ideal choice for a broad spectrum of professional audio and multimedia applications.
Features
- Line level splitter that distributes a single input signal to 5 outputs
- High headroom design for superior sound quality
- Requires no external power supply due to its passive design
- Equipped with high-quality Neutrik* XLR connectors
- Ultra-low noise and ultra-linear system ensures highest signal integrity
- Durable aluminium extrusion casing with protective rubber corners
- Compact and rugged design for easy and reliable use
Specifications
| Category | Details |
|---|---|
| Input Connector | XLR, balanced |
| Output Connectors | 5 x XLR, balanced |
| Frequency Response | 20 Hz to 22 kHz (± 0.05 dB) |
| THD + N (Distortion) | < 0.01% @ 1 kHz, +4 dBu |
| Signal-to-Noise Ratio | 121 dB |
| CMRR | 98 dB typical |
| Insertion Loss | 0.05 dB @ 100 kΩ, 0.7 dB @ 600 Ω |
| Power Requirement | Passive |
| Dimensions (W x D x H) | 118 x 112 x 64 mm (4.6 x 4.4 x 2.5″) |
| Weight | 0.43 kg (0.9 lbs) |
