Klark Teknik DN9680-MM Multi-Mode Optical Fibre Module, 500m Range, 192 Channels
1,495.20 AED Included (5% UAE VAT)
The DN9680-MM kit upgrades KLARK TEKNIK DN9680 units for multi-mode fibre, supporting 192 channels of 24-bit digital audio at 96 kHz over 500 meters using dual fibre cable, allowing bidirectional optical communication.
Model number
DN9680-MM
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

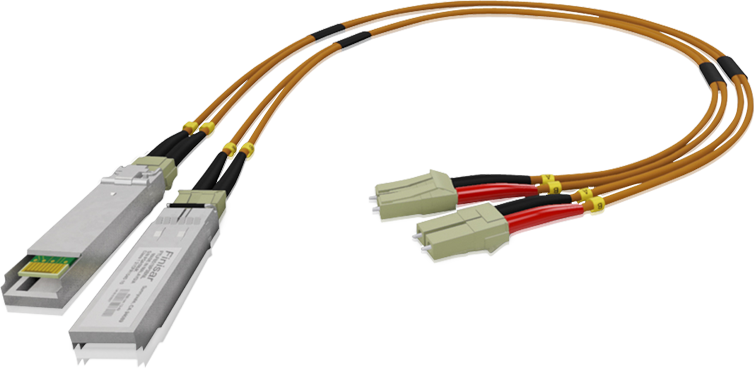

DN9680-MM Multi-Mode Optical Fibre Transceiver Module Kit

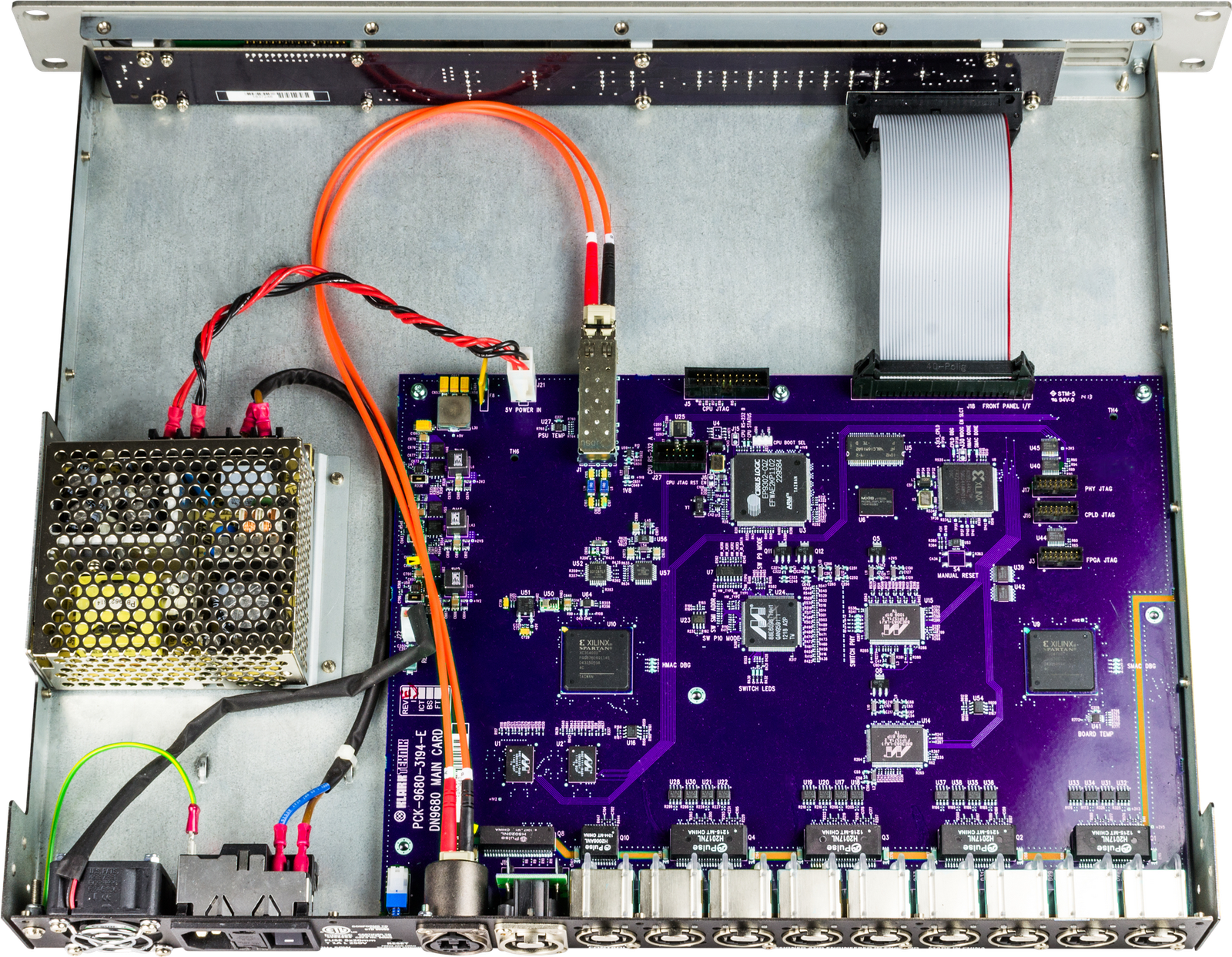

The DN9680-MM multi-mode optical fibre transceiver module kit is a retrofit replacement designed to convert two KLARK TEKNIK DN9680 8 Port AES50 Extender and Multiplexer units from single mode fibre to multi-mode fibre operation. A pair of DN9680 units fitted with DN9680-MM modules enables a bidirectional optical link on one multi-mode dual fibre cable and supports the transmission of 192 bidirectional channels of 24-bit digital audio at a 96 kHz sample rate over a 500-metre range.
Features
- Multi-mode optical fibre module with a 500 metre range
- Converts DN9680 from single mode fibre to multi-mode fibre operation
- Dual-fibre Neutrik opticalCON DUO connector used for optical fibre snake connection
Specifications
| Specification | Details |
|---|---|
| Intended Use | Retrofit replacement in the KLARK TEKNIK DN9680 8 Port AES50 Extender and Multiplexer |
| Bidirectional Operation | Enabled with one dual multi-mode optical fibre cable over a 500 metre range |
| Channel Capacity | 192 bidirectional channels |
| Audio Quality | 24-bit digital audio at 96 kHz sample rate |

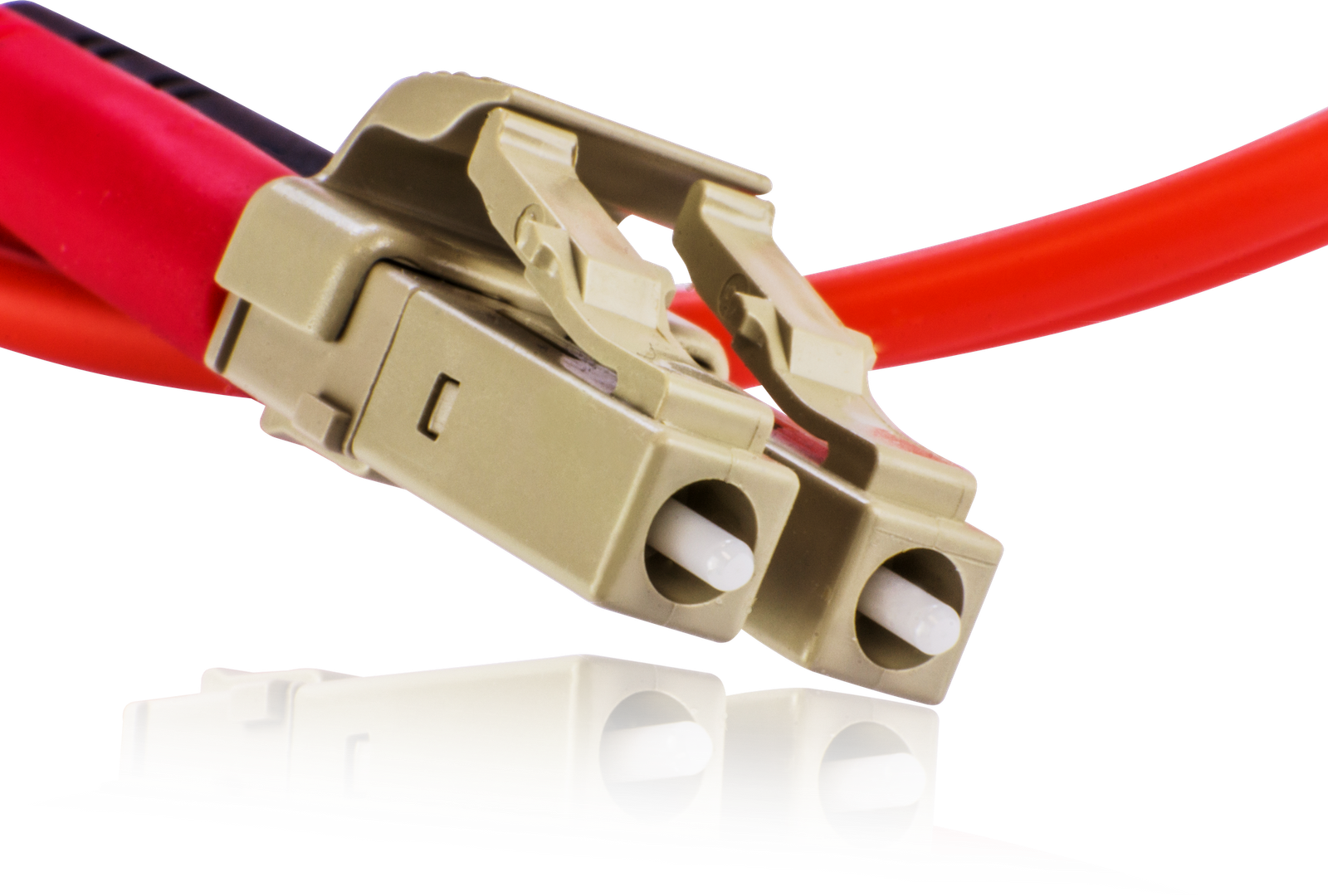

| Internal Cable | 0.5 m internal dual multi-mode optical fibre cable terminating in LC-Duplex connectors |

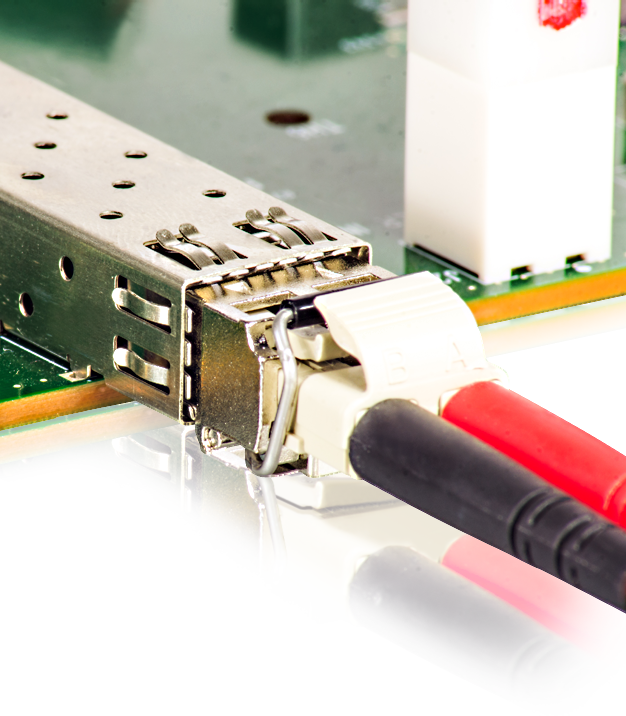

| Manufacturer | Finisar (Part number: FTLF8519P3BNL) or approved equivalent |

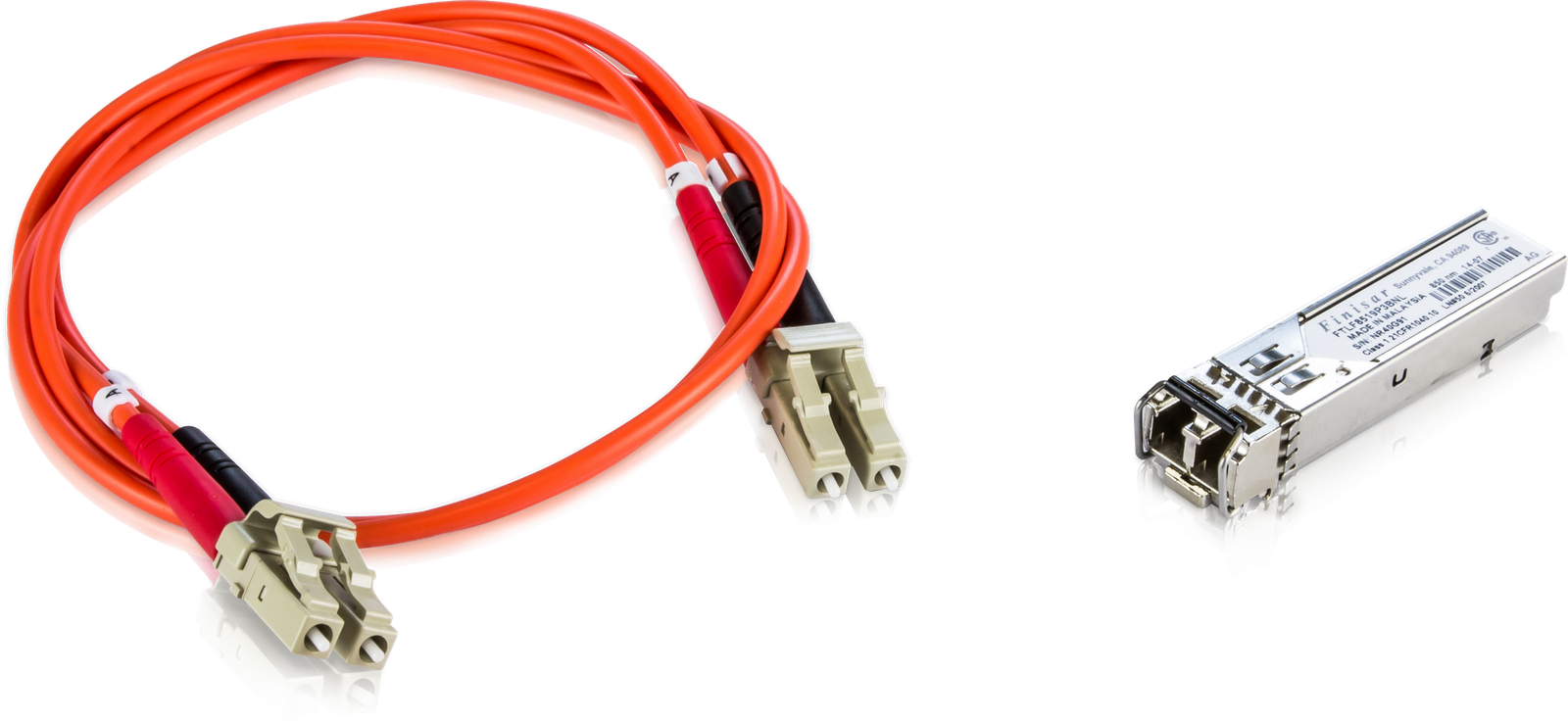

| Kit Contents | Two optical fibre modules and two 0.5 m internal dual multi-mode optical fibre cables |
| Model | KLARK TEKNIK DN9680-MM |
