Klark Teknik DN9652 Dual Network Bridge Converter with 64 Channels ASRC
6,575.10 AED Included (5% UAE VAT)
DN9652 features a multichannel interface connecting two third-party digital audio networks and point-to-point interfaces using Klark Teknik technology. With bidirectional asynchronous sample rate conversion, it supports up to 64 bidirectional channels across separate clock domains and different sample rates. Currently, it integrates MADI and Audinate Dante through the Klark Teknik KT-MADI and KT-DANTE64 modules. The device also supports future protocols via an industry-standard expansion slot compatible with the Cirrus CM-1 format, making it adaptable in the evolving digital audio networking landscape.
Model number
DN9652
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Product Overview
The DN9652 by Klark Teknik boasts an advanced multichannel interface between third-party digital audio networks and point-to-point interfaces. Featuring a bidirectional asynchronous sample rate converter (ASRC), this innovative device supports the integration of up to 64 bidirectional channels across independently clocked domains at varying sample rates.
Features
- Supports up to 64 bidirectional channels
- Compatible with KT-AES50, KT-DANTE64, KT-MADI, and KT-USB modules
- Bidirectional ASRC on each channel with bypass option
- Redundant network systems with audio clock inhibit feature
- Operates at 24-bit with 96 kHz and 48 kHz sample rates
- Video synchronization for standard and high definition
- Temperature-compensated word clock (1 ppm)
- Web server for browser-based configuration via Ethernet

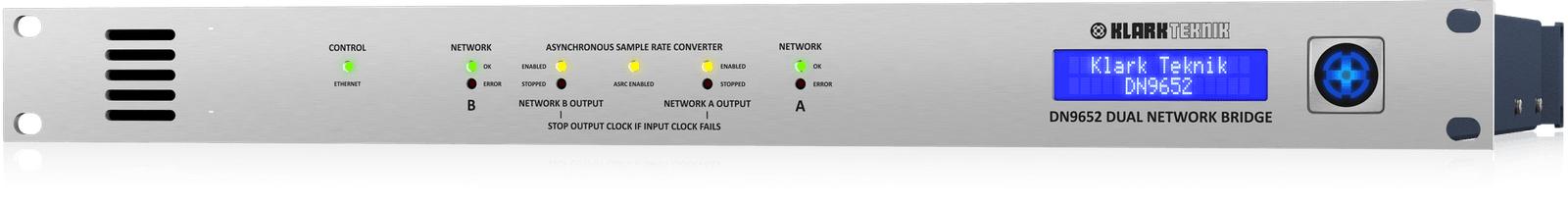

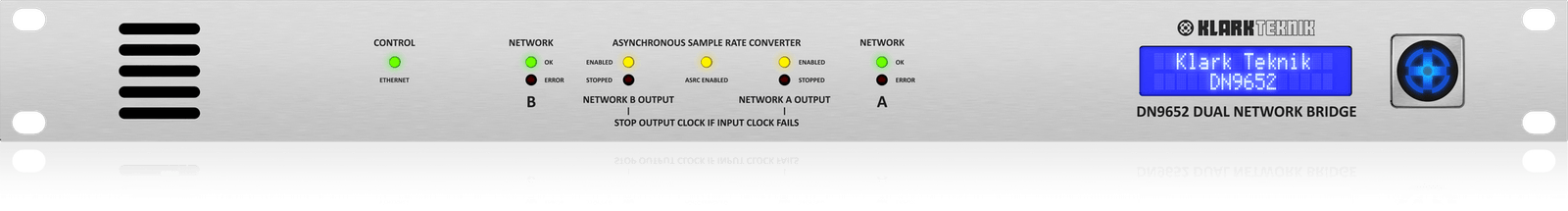

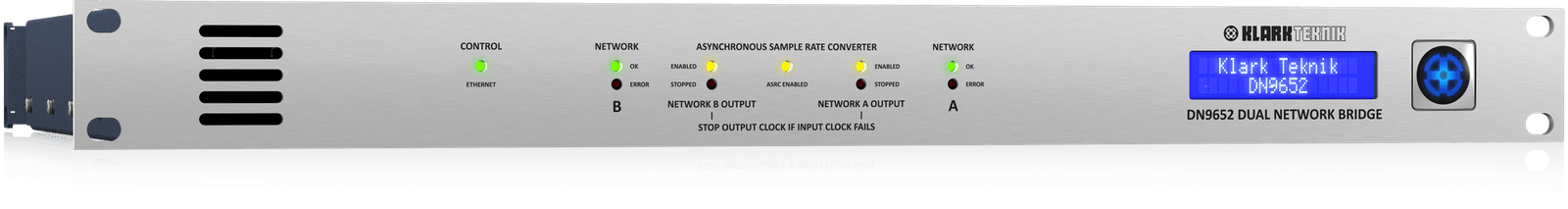

- Status LEDs and LCD display on the front panel
- Neutrik etherCON network ports
- Durable 1U rackmount chassis
- Auto-ranging universal power supply
Specifications
| Specification | Detail |
|---|---|
| Control Port | 1 |
| Word Clock Input | 1 |
| Word Clock Output | 1 |
| Black Burst Input | 1 |
| Module Expansion Slots | 2 |
| Bidirectional Channels | 64 |
| Clock Stability | 1 ppm (Temperature-compensated crystal oscillator) |
| Network Clock Source Options | External network clock, onboard oscillator, video black burst input |
| Word Clock Output Options | Either network clock domain, word clock input |
| Power Requirement | 100-240 VAC, 50-60 Hz |
| Power Consumption | <50W |
| Dimensions (H x W x D) | 44 mm x 483 mm x 411 mm |
| Net Weight | 5.0 kg |
Module Options
| Module | Description |
|---|---|
| KT-MADI | MADI Network Module with up to 64 bidirectional channels |
| KT-DANTE64 | Audinate Dante Network Module with up to 64 bidirectional channels |
