JBL Professional Mixer Amplifier CSMA280 8-Input 2x80W Commercial Use
4,810.00 AED Included (5% UAE VAT)
The JBL CSMA 280 Commercial Series Mixer/Amplifier is designed for commercial and industrial applications, featuring eight mixer-channel inputs and two output channels with a peak power of 80W. It offers illuminated volume controls for easy operation in dark environments, bass and treble adjustments, and support for both 70V and 100V distributed audio systems. It includes euroblock and RCA inputs, speaker connections, RJ45 connectors for in-wall volume controls, and features such as voice-activated ducking, priority muting, and an automatic sleep mode. Two auxiliary outputs allow connection to an additional amplifier.
Model number
CSMA280
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

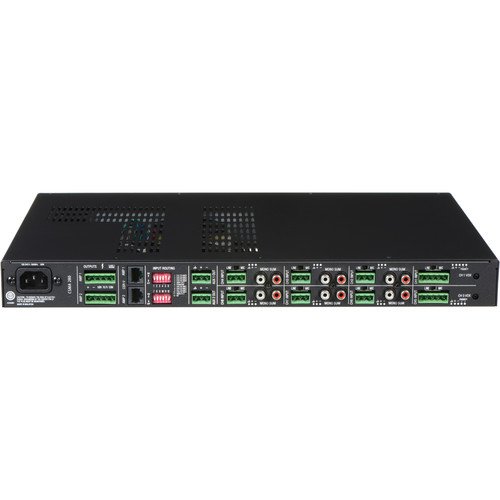

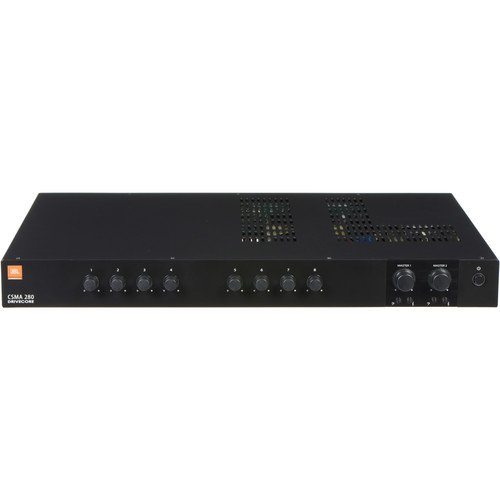

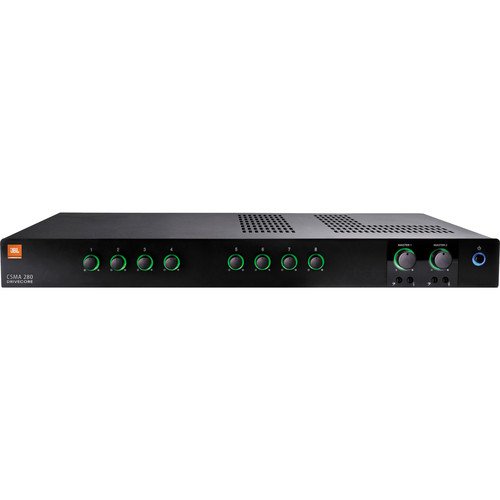

JBL CSMA 280 Commercial Series Mixer/Amplifier
The JBL CSMA 280 Commercial Series Mixer/Amplifier is a versatile and reliable audio solution engineered for commercial and industrial environments. With eight mixer-channel inputs and two robust output channels, this unit is capable of delivering 80W of peak power. Both its simple front panel interface and extensive back-panel connectivity make it suitable for a variety of applications.
Key Features
| Specification | Details |
|---|---|
| Power Rating | 80W peak per channel, 10W RMS per channel |
| Inputs/Outputs | 8 Input / 2 Output channels |
| Control Panel | Illuminated volume controls, bass and treble adjustment |
| Load Compatibility | Drives both 4 Ohm and 8 Ohm loads; supports 70V and 100V systems |
| Input Connections | Euroblock, RCA, Mic/Line inputs |
| Remote Control | Compatible with JBL CSR-V in-wall volume controls via RJ45 |
| Additional Features | Voice activated ducking, priority muting, sleep mode |
Detailed Specifications
| Category | Specification | Details |
|---|---|---|
| Amplifier | Form Factor | Rackmount |
| Power Rating | 4/8 Ohms: 80W peak per channel, 10W RMS per channel | |
| Load Impedance | 4 Ohms minimum, 70V (60 Ohms minimum), 100V (120 Ohms minimum) | |
| SNR | Greater than 90 dB | |
| Performance | Frequency Response | Amplifier: 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±2 dB (70/100 V) |
| Mic Input Sensitivity | 3 mVrms | |
| Line Input Sensitivity | 775 mVrms | |
| RCA Input Sensitivity | 300 mVrms | |
| Output Level | Line Output: 5 Vrms | |
| THD | Less than 0.5% (20 Hz – 20 kHz, Main Output), 0.05% (Line Output) | |
| Connectivity | Audio I/O | 2 x Euroblock 5-Pin (Balanced Line/Mic), 6 x Euroblock 3-Pin (Balanced Line/Mic), 6 x RCA (Unbalanced Summed-Mono), 2 x Euroblock 3-Pin (Aux Output) |
| Other I/O | 2 x RJ45 (Remote/Volume) | |
| Phantom Power | 27 VDC | |
| AC Input Power | 100 to 240 VAC, 50/60 Hz | |
| AC Power Connector | 1 x IEC | |
| Dimensions | 17.2 x 1.7 x 11.9″ (436.9 x 43.2 x 302.3 mm) | |
| Weight | 11.9 lb (5.4 kg) | |
| Operating Temperature | 32 to 95°F (0 to 35°C) | |
| Storage Temperature | -4 to 185°F (-20 to 85°C) |
