JBL Professional Mixer Amplifier CSMA1120 4 Inputs 120W for Commercial Use
4,310.00 AED Included (5% UAE VAT)

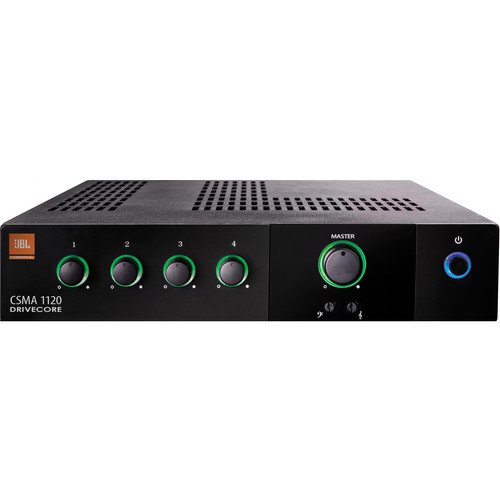

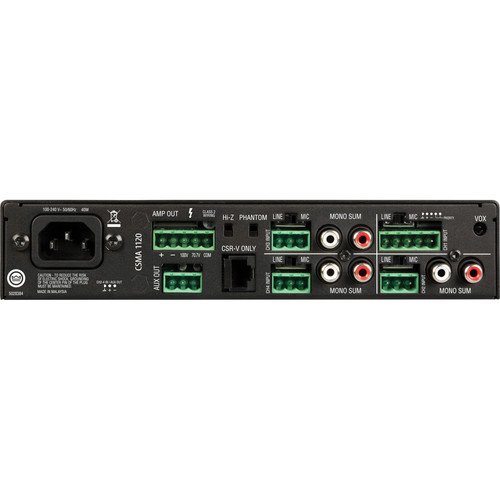

The JBL CSMA 1120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, featuring four mixer-channel inputs, one output channel, and 120W peak power. The front panel includes illuminated volume controls, a master volume knob, bass and treble controls, and a power switch. Suitable for 8 and 4 Ohm loads as well as 70V and 100V systems, it includes mic/line inputs, RCA inputs, speaker connections, and a RJ45 connector on the back panel. Additional features include voice-activated ducking, priority muting, sleep mode, and an auxiliary output for connecting to an additional amplifier.
Model number
CSMA1120
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
JBL CSMA 1120 Commercial Series Mixer/Amplifier
The JBL CSMA 1120 Commercial Series Mixer/Amplifier is designed for commercial and industrial use, integrating a versatile control system with robust power output and a range of connectivity options. With four mixer-channel inputs and a single output channel, it delivers up to 120W of peak power, making it an ideal solution for a variety of audio environments.
Key Features
| Specification | Details |
|---|---|
| Channels | 4 Mixer-Channel Inputs, 1 Output Channel |
| Power Output | 120W Peak (15W per channel) |
| Load Compatibility | Drives both 8 and 4 Ohm loads, 70V/100V systems |
| Controls | Independent Bass, Treble, Input Level, and Master Volume |
| Hi-Z Switch | Allows the unit to drive 70V or 100V speaker systems |
| Phantom Power | 27 VDC |
| VOX Function | Voice activated ducking on input channel 1 |
| Priority Muting | Uses input channel 1 for priority channel muting |
| Remote Volume Control | Using CSR-V controller via RJ45 connector |
| Sleep Mode | Activates after 30 minutes of no signal |
| Auxiliary Output | Connects to additional amplifiers, mixed input channels |
Technical Specifications
| Specification | Details |
|---|---|
| Form Factor | Rackmount |
| Frequency Response | 20 Hz to 20 kHz ±2 dB (Low-Z), 80 Hz to 15 kHz ±2 dB (70/100V) |
| Input Sensitivity | Mic: 3 mVrms, Line: 775 mVrms, RCA: 300 mVrms |
| Output Level | 5 Vrms (Line Output) |
| Physical Dimensions | 8.6 x 1.7 x 11.9″ / 21.9 x 4.3 x 30.3 cm |
| Weight | 7.1 lb / 3.2 kg |
