JBL Professional Stereo Public Address Mixer CSM32V with 3×2 Inputs and Phantom Power
3,840.00 AED Included (5% UAE VAT)
The JBL CSM-32 3 x 2 Stereo Public Address Mixer is designed for conferencing, retail, and hospitality, featuring three stereo music inputs with equalizers, one line input for alarm integration, and a microphone input with phantom power and a ducker. It includes two stereo outputs, active crossovers, subwoofer outs, a mono output for hold systems, and an analog control panel with a security plate. Compatible with CSR remote controllers, the unit supports expansion with additional CSM mixers via Cat5 for versatile commercial sound applications.
Model number
CSM32V
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

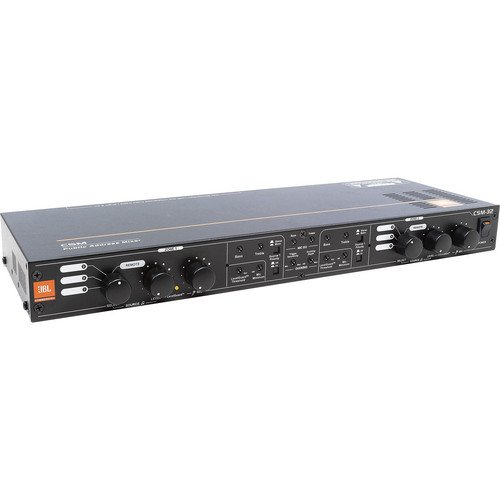

JBL CSM-32 3 x 2 Stereo Public Address Mixer
Enhance your conferencing, retail, and hospitality audio experience with the JBL CSM-32 Mixer, designed to deliver pristine sound and versatile functionality for various commercial settings.
This digital commercial mixer comes equipped with three stereo music inputs featuring bass and treble equalizers, plus a dedicated line input for alarm system integration. Additionally, it includes a microphone input that supports phantom power and features gain control and a ducker to automatically lower the music volume during announcements.
The JBL CSM-32 offers two stereo outputs with zone equalizers and active crossovers, each with its own subwoofer output. It also provides a music-only mono output to cater to telephone music-on-hold systems. The mixer is simple to operate with its analog-style control panel, and offers remote control options through CSR remote controllers for both source selection and volume adjustment per zone.
Key Features
- Three stereo music inputs with bass and treble equalizers
- Microphone input with phantom power, gain control, and a ducker
- Two stereo outputs with zone equalizers and active crossovers
- Music-only mono output for telephone systems

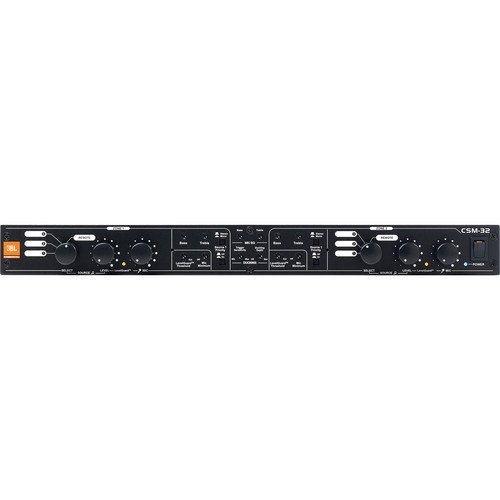

- Simple analog control panel with optional remote control compatibility
- LevelGuard for optimized signal compression
- AutoWarmth for automatic tonal balance adjustment
- Source priority and hold features
- Limiter to prevent signal clipping
- Switchable mono and stereo output
- Adjustable music ducking for announcements
Specifications
| Specification | Details |
|---|---|
| Line Inputs | 3 x stereo, unbalanced RCA connectors |
| Nominal Sensitivity | -10 dBV |
| Input Impedance | 20 kΩ |
| Maximum Input | +12 dBu |
| Equalization | Bass ±10 dB @ 80 Hz, Treble ±10 dB @ 8 kHz, 6 dB/octave shelf |
| Mic Type | 1 x balanced, 0.2″ (5.08 mm) Euroblock connector |
| Mic Input Impedance | 2 kΩ |
| Mic Noise | EIN <117 dB, 150 Ω, DSP band-limited 120 to 8,000 Hz, BW24 |
| Mic Maximum Input | +20 dBu |
| Mic Equalization | Bass ±6 dB @ 250 Hz, Treble ±6 dB @ 2 kHz, 6 dB/octave shelf |
| CMRR | >40 dB, typically >55 dB @ 1 kHz |
| Preamp Overall Gain | +30 dB to +60 dB adjustable |
| Phantom Power | +48 VDC, 10 mA |
| Output Type | 2 x stereo (Left, Right, Sub) balanced 1/8″ (3.5 mm), Euroblock connector |
| Output Impedance | 120 Ω balanced |
| Maximum Output Level | +20 dBu |
| Crossover Frequencies | Left and Right in: 125 Hz high-pass (BW24), Sub in: 125 Hz low-pass (BW24), Left and Right out: 20 to 20,000 Hz, Sub out : 20 to 20,000 Hz (mono summed) |
| LED Indicators | Source inputs: Signal present LED (turns on at -20 dBu), Signal clip LED (turns on at +10 dBu), Mic input: Signal present LED (turns on at -20 dBu), Signal clip LED (turns on at +18 dBu) |
| System Performance | |
| Frequency Response | 20 to 20,000 Hz, ±0.1 dB |
| Dynamic Range | 104 dB, A-weighted, 20 to 20,000 Hz |
| Converter | Mic input implements dbx Type IV conversion system |
| Sample Rate | 48 kHz |
| Crosstalk | >75 dB |
| THD & Noise | 0.005% typical at +4 dBu, 20 to 20,000 Hz, 0 db gain |

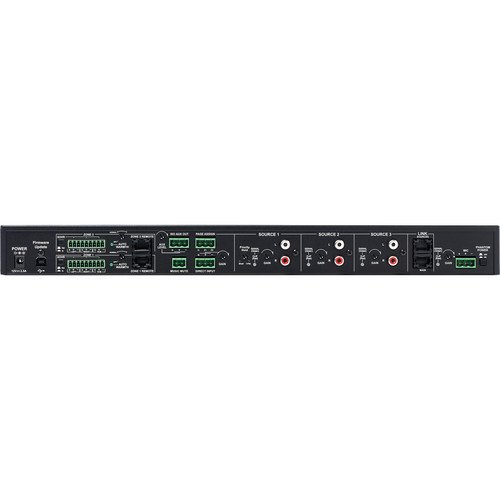

| Rear Panel Connections | |
| Direct Inputs | 1 x Balanced, 1/4″ (5.08 mm) Euroblock connector, Input impedance: 10 kΩ, Maximum input: +20 dBu, Frequency response: 20 to 20,000 Hz |
| Mute | 1 x 2-pin 1/4″ (5.08 mm) Euroblock connector, Connecting the pins mutes all source inputs, does not mute mic input. |
| Paging | 1 x 2-pin 1/4″ (5.08 mm) Euroblock connector, Connecting zone pins to ground assigns page to that respective zone |
| Link | Source: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9′ (2.4 m), Main: 1 x RJ45 port requires CAT3 cable or higher with maximum length 7.9′ (2.4 m) |
| USB | 1 x USB Type B port for firmware updates |
| Power Consumption | 10 W |
| Power Requirements | 100 to 240 V thermal fuse in external transformer |
| Rack Mountable | Yes with included brackets |
| Dimensions | 19.0 x 1.8 x 7.0″ (48.3 x 4.6 x 17.8 cm) |
| Weight | 5.3 lb (2.4 kg) |
