JBL Professional Dual-Channel Amplifier CSA2300Z 2x300W for Commercial Use
4,919.93 AED Included (5% UAE VAT)
The JBL CSA 2300Z Dual-Channel 300W Amplifier is designed for installed sound applications, utilizing Crown’s DriveCore technology for efficient performance and reliability with fewer parts. It supports low impedance, 70V, and 100V outputs, includes a rack mounting kit, and features an RJ45 connector for optional remote volume control through the CSR-V module.
Model number
CSA2300Z
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

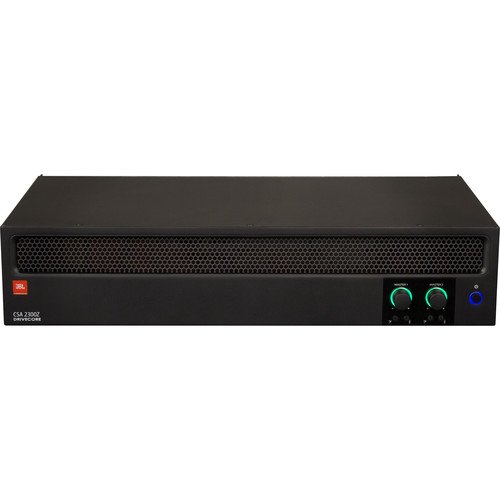

JBL CSA 2300Z Dual-Channel 300W Amplifier
The JBL CSA 2300Z Dual-Channel 300W Amplifier is designed for installed sound applications, providing powerful sound and efficient performance through Crown’s DriveCore technology. This amplifier is easy to configure and offers versatile output options, including low impedance, 70V, or 100V outputs. With its robust design and high-quality components, the CSA 2300Z is perfect for both commercial and industrial use.
Key Features
- Two channels with 300W output each
- Integrated output transformer for 70V or 100V speaker systems

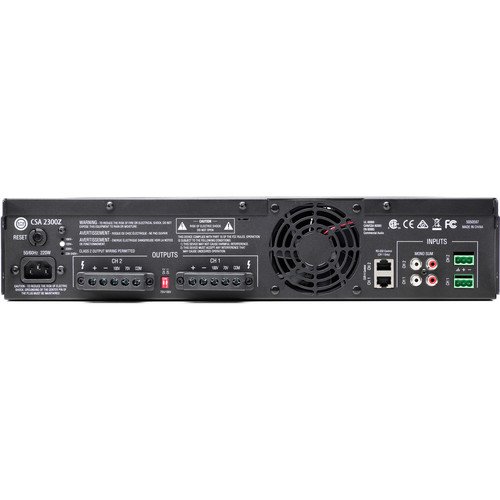

- Euroblock style input connectors
- Barrier strip output connectors
- Independent bass and treble controls for each output channel
- Remote volume control capability using CSR-V module (sold separately)
- RS232 control for volume, standby, and mute
- Energy-efficient design with sleep mode disable function
- Sleek design with illuminated knob rings for easy operation
Specifications
| Number of Channels | 2 |
| Power Rating | 300 W per channel at 4/8 Ohms |
| Load Impedance / Voltage | 4 Ohms (Minimum), 70 / 100 V |
| Frequency Response | 20 Hz to 20 kHz ±1 dB (8 Ohms) |
| Input Sensitivity | Line: 775 mVrms (Balanced, at 8 Ohms); RCA: 300 mV (at 8 Ohms) |
| Input Impedance | Euroblock: 20 Kilohms (Balanced); RCA: 10 Kilohms |
| SNR | > 97 dBA |
| THD | < 0.5% (Full Range, at Rated Power) |
| Crosstalk | < -70 dBA (1 kHz) |
| EQ | 2-Band |
| I/O | Euroblock Balanced/Unbalanced Input, 2RCA Summed-Mono Input, Terminal Block Output |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Dimensions | 17.0 x 11.0 x 3.5″ / 43.0 x 27.0 x 8.9 cm |
| Weight | 17.8 lb / 8.1 kg |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
Packaging Information
| Package Weight | 20 lb |
| Box Dimensions (LxWxH) | 22 x 15 x 6″ |
