JBL Professional CSA 140Z 40W Commercial Audio Amplifier 1-Channel 70/100V
1,309.99 AED Included (5% UAE VAT)
The JBL CSA 140Z Audio Amplifier (1x 40W) offers compact and efficient amplification with a universal power supply and Crown's DriveCore technology, suitable for 70 and 100V installations. It features RJ45 for CSR-V volume controls, mono sum RCA and Euroblock inputs, and Euroblock outputs. It operates on 100 to 240 VAC, 50/60 Hz and supports HARMAN's GreenEdge initiative.
Model number
CSA140Z
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

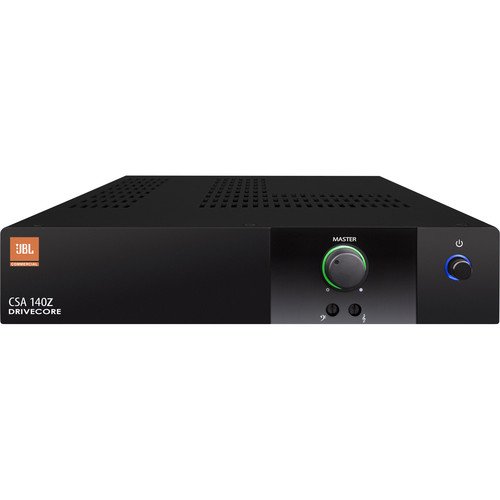

JBL CSA 140Z Audio Amplifier (1x 40W)
The JBL CSA 140Z Audio Amplifier (1x 40W) offers a versatile and powerful solution for amplification in installed sound setups. Integrating Crown’s DriveCore technology and a universal switch-mode power supply, it delivers dependable and efficient sound amplification for various applications.

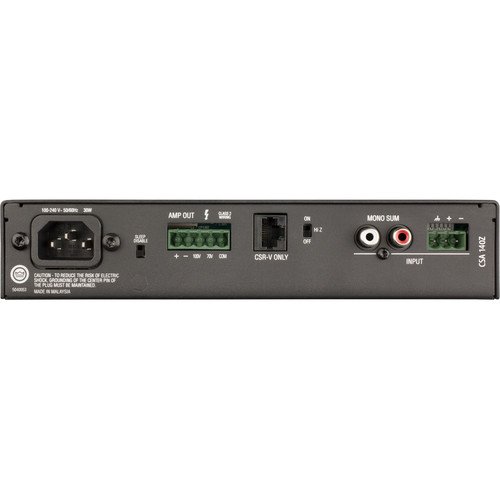

This amplifier is compatible with both 70V and 100V installations, and it features 1 x RJ45 connector for CSR-V in-wall volume controls. Equipped with mono sum RCA connectors for inputs and Euroblock connectors for outputs, it ensures robust connectivity. Illuminated knobs enhance usability, and its universal power supply supports AC voltages from 100 to 240 VAC, 50/60 Hz.
Key Specifications
| Specification | Details |
|---|---|
| Number of Channels | 1 |
| Power Rating | 40 W (1 kHz, 0.5% THD) |
| Load Impedance / Voltage | 4 Ohms (Minimum), 70 / 100 V |
| Frequency Response | 20 Hz to 20 kHz ±0.5 dB (8 Ohms) |
| Input Sensitivity | 1.4 Vrms |
| Input Impedance | Euroblock: 20 Kilohms (Balanced), RCA: 50 Kilohms |
| SNR | > 100 dB |
| THD | < 0.5% |
| Crosstalk | > 70 dB |
| EQ | 2-Band |
| I/O | 1 x 2RCA Summed-Mono Input, 1 x Euroblock Input, 1 x Euroblock Output |
| Digital I/O | 1 x RJ45 (Control) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Storage Temperature | -4 to 185°F / -20 to 85°C |
| Dimensions | 8.6 x 11.9 x 1.7″ / 218.5 x 303.4 x 43.3 mm |
| Weight | 6.3 lb / 2.8 kg |
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 16.2 x 12.1 x 5″ |
