JBL Professional Control 328CT 8in 250W Coaxial Ceiling Speaker 2-Way
2,264.00 AED Included (5% UAE VAT)
The Control 328CT is a ceiling loudspeaker designed to provide high-quality performance through its advanced coaxial point source design.
Model number
CONTROL 328CT
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

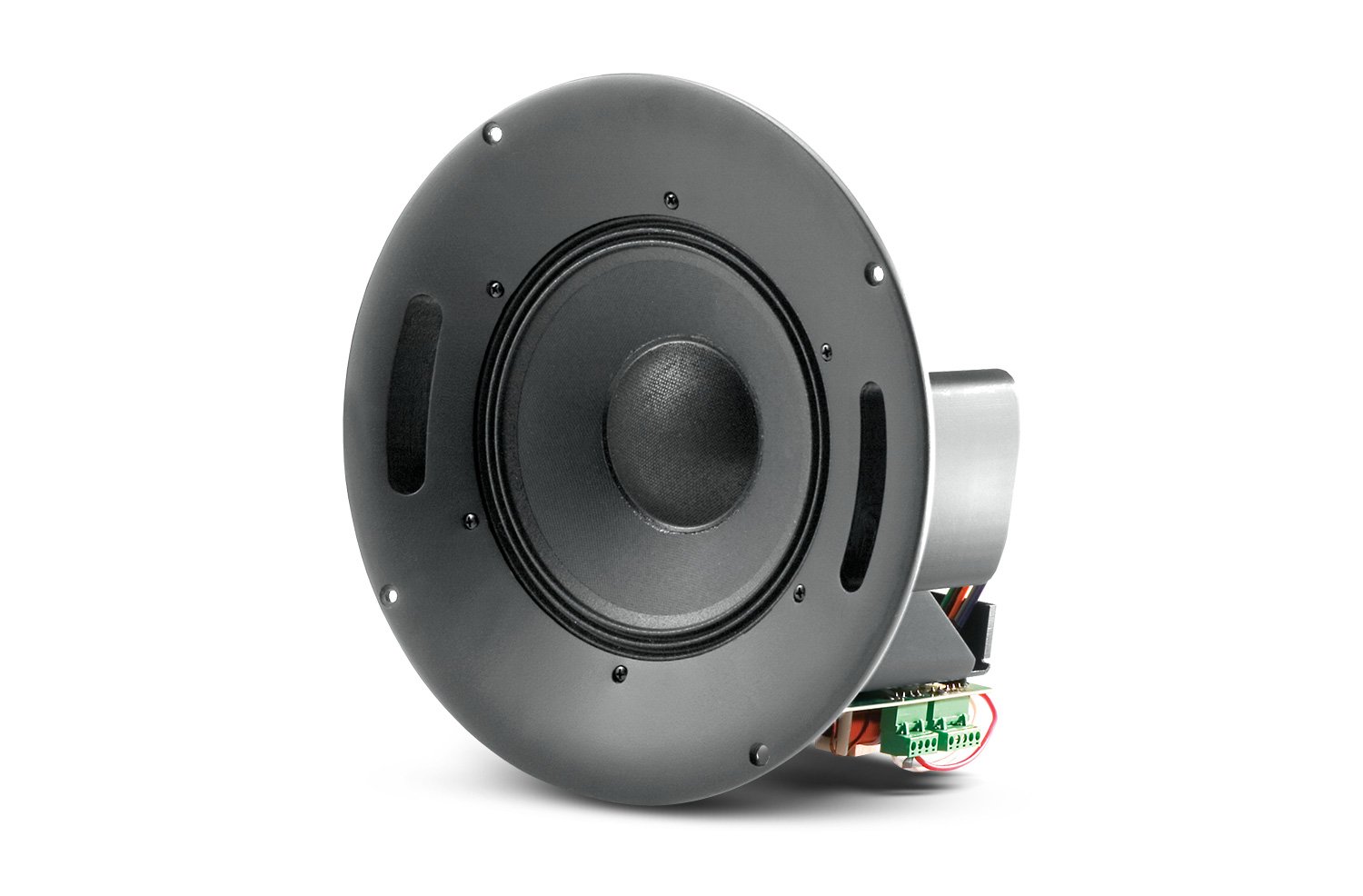

Control 328CT Coaxial Ceiling Loudspeaker
The Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker. With its innovative design, this loudspeaker offers high-quality audio performance, making it an ideal choice for a wide range of applications.
Key Features
- Consistent 120° broadband pattern control covers an extremely large area.
- Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver.
- Components:
- 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice-coil.
- 25 mm (1″ exit) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 250 Watt power handling with very high sensitivity provides high SPL capability.

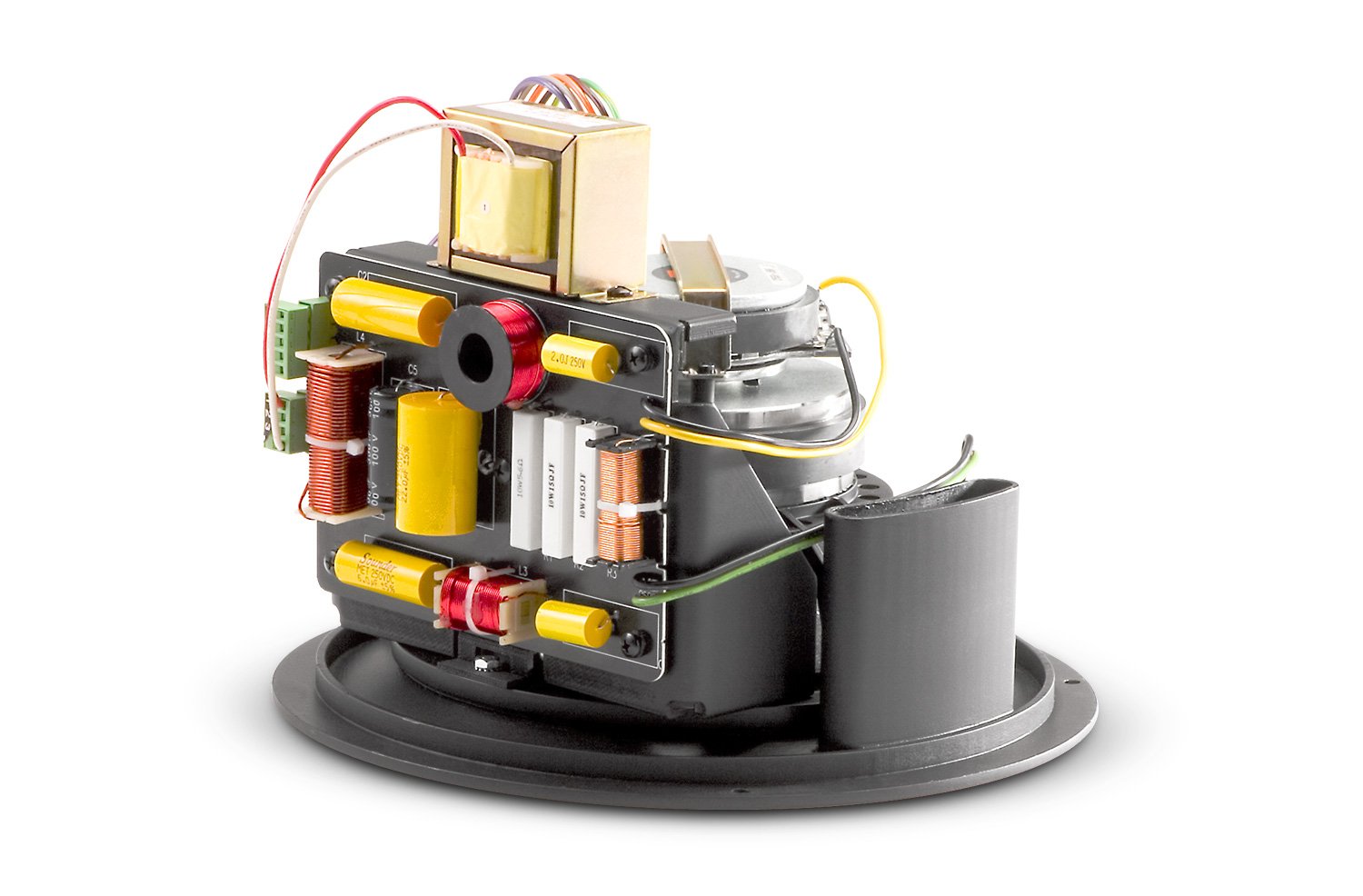

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Clean, contemporary grille and optional backbox available.
Specifications
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 45 Hz – 18 kHz |
| Power Rating | See transformer taps |
| Transformer Taps | 68W, 34W, 17W, (& 8.5W @ 70V) |
| Frequency Response (±3 dB) | 60Hz – 16 kHz |
| Coverage Angle | 120° conical, constant directivity |
| Impedance | 8 ohms |
| Directivity Factor (Q) | 7.0 (Avg 1k – 16kHz) |
| Directivity Index (DI) | 8.5dB (Avg 1k – 16kHz) |
| Sensitivity | 93 dB (1 kHz – 16 kHz) |
| Maximum SPL (1m) | 118 dB (top 70V/100V tap) |
| Crossover Network | 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate |
| Dimensions (H x W x D) | 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Drivers | LF Driver: 200 mm (8 in) HF Driver: Compression driver, 25 mm (1 inch) coil |
| Color | White |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Backcan | Formed steel (wood-lined; accessory) |
| Baffle/Rim | Metal, round, driver pre-mounted to baffle, ported. |
| Ceiling Cutout Size | 310 mm (12.2 in) diameter (for MTC-300BB8 backcan) |
| Included Accessories | Ported baffle pre-attached, plus transformer on 328CT. |
| Optional Accessories | MTC-RG6/8 Grille, round contoured, white. MTC-SG6/8 Grille, square, contoured, white. MTC-300BB8 Backbox, 25 liters (1 cubic feet) |
| Plenum Usage | Yes, with accessory backcan |
