The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.
500 in stock
JBL Professional Control 227CT 6.5in Coaxial Ceiling Speaker 150W
1,894.00 AED Included (5% UAE VAT)
The JBL Professional Control 227C and 227CT are high-quality in-ceiling loudspeakers engineered for professional settings where exceptional sound performance is essential.
Model number
CONTROL 227CT
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Key Features
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design featuring:
- Kevlar-reinforced 165 mm (6.5 in) woofer.
- 25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.

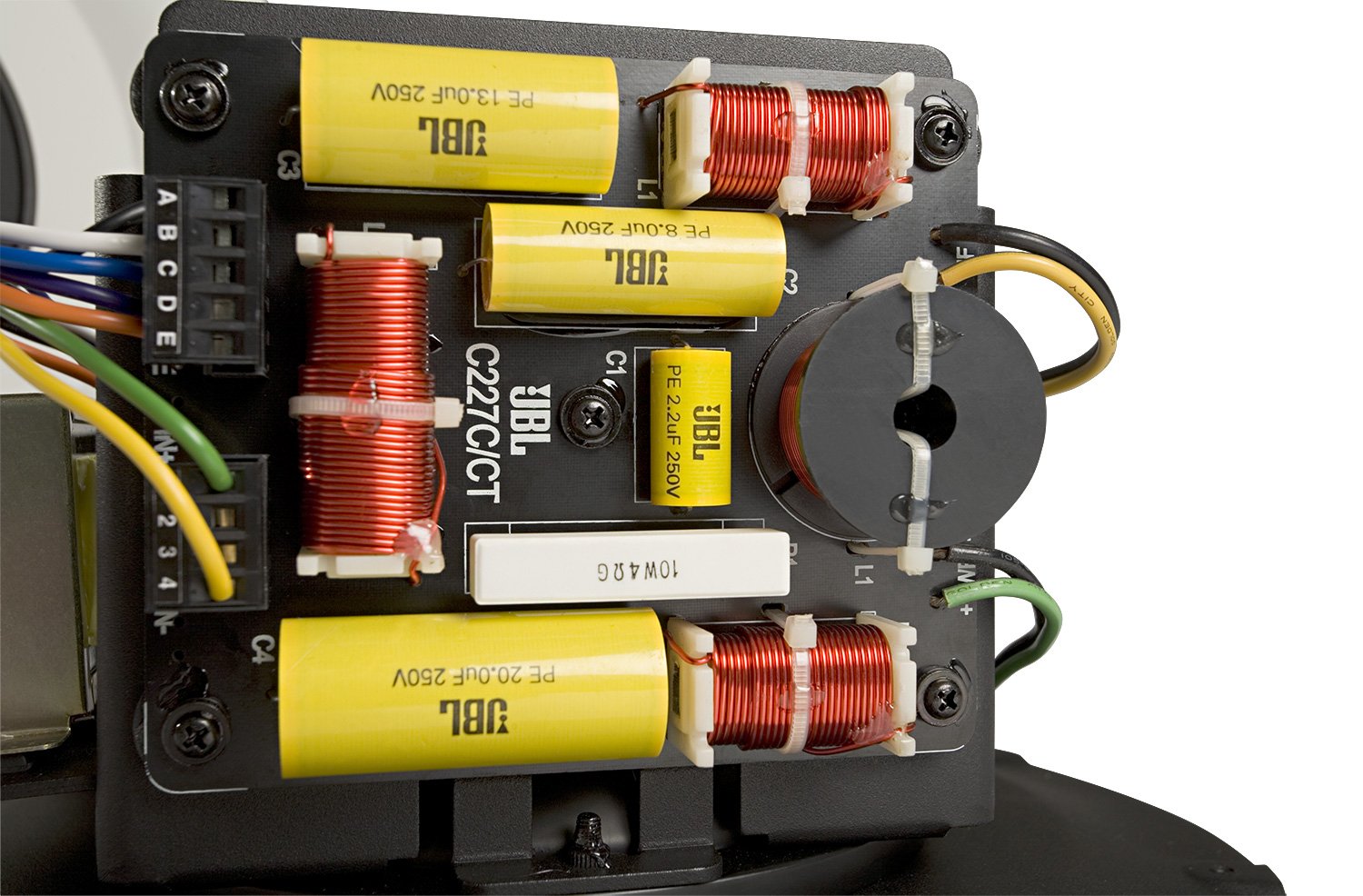

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available (sold separately).
Specifications
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 43 Hz – 19 kHz |
| Transformer Taps | 68W, 34W, 17W (& 8.5W @ 70V) |
| Sensitivity | 90 dB (1 kHz – 16 kHz) |
| Coverage Angle | 120° conical, constant directivity |
| Frequency Response (-3 dB) | 75 Hz – 17 kHz |
| Drivers | LF Driver: 165 mm (6.5 inch) HF Driver: compression driver, 25 mm (1 inch) coil |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70 when installed with UL listed backcan such as JBL MTC-200BB6 or MTC300BB8. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Dimensions (H x Dia) | Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in) |
| Net Weight (each) | 5.2 kg (11.5 lb) |
| Shipping Weight (pair) | 6.6 kg (14.5 lb) |
| Power Rating | See transformer taps |
| Maximum SPL (1m) | 108 dB (top 70V/100V tap) |
| Input Connectors | Screw locking barrier strip for bare wire |
| Color | White |
| Backcan | Formed steel (wood-lined; accessory) |
| Baffle/Rim | Metal, round, driver pre-mounted to baffle, ported. |
| Ceiling Cutout Size | 310 mm (12.2 in) diameter (for MTC-200BB6 backcan) |
| Included Accessories | Ported baffle pre-attached, transformer on 227CT |
| Optional Accessories | MTC-200BB6 Back Can (0.7 cu ft) MTC-RG6/8 Grille MTC-TB6/8 Tile Bridge Also compatible with MTC-300BB8 backcan (1.0 cu ft) |
| Plenum Usage | Yes, with accessory backcan |
