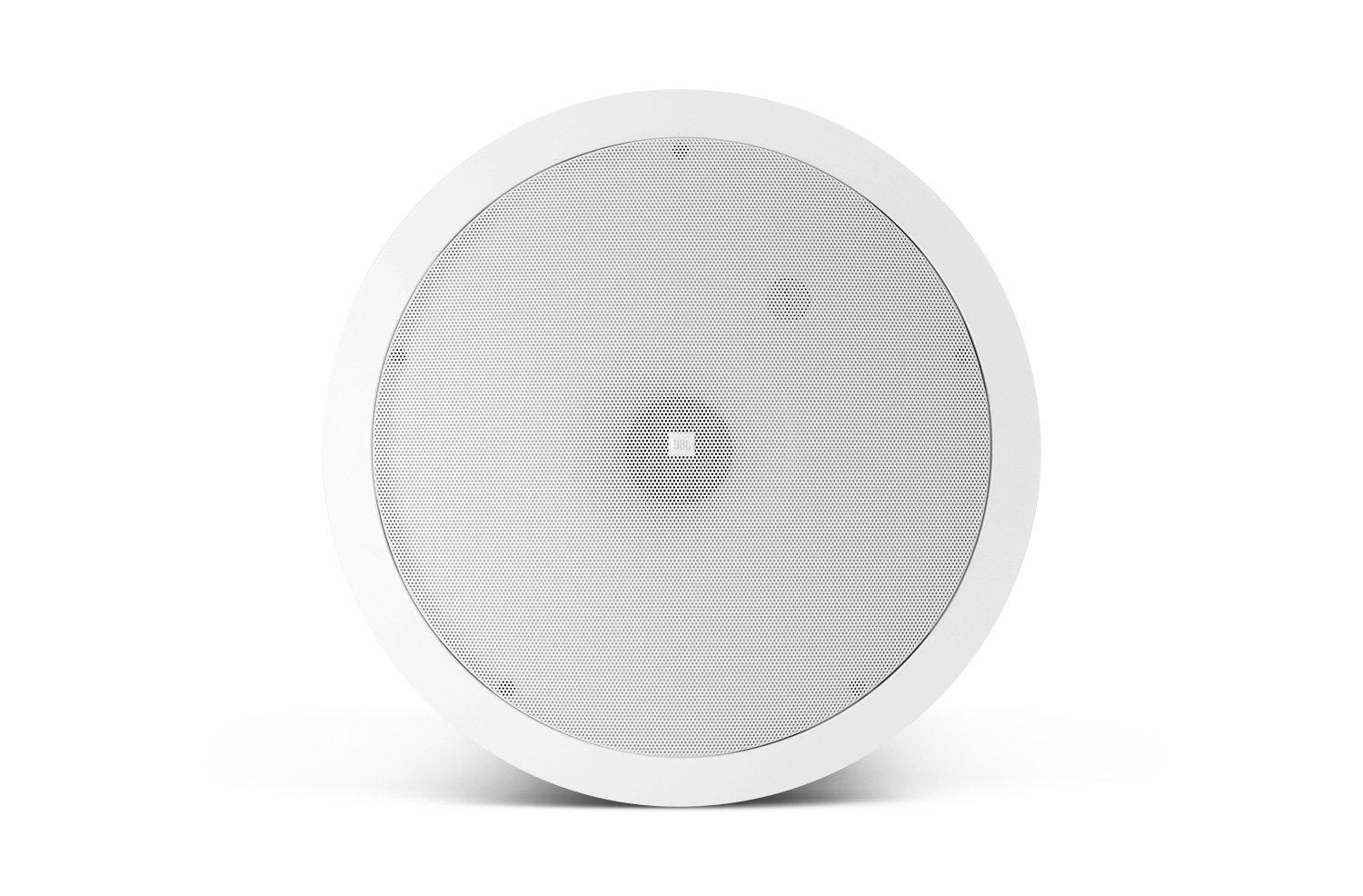

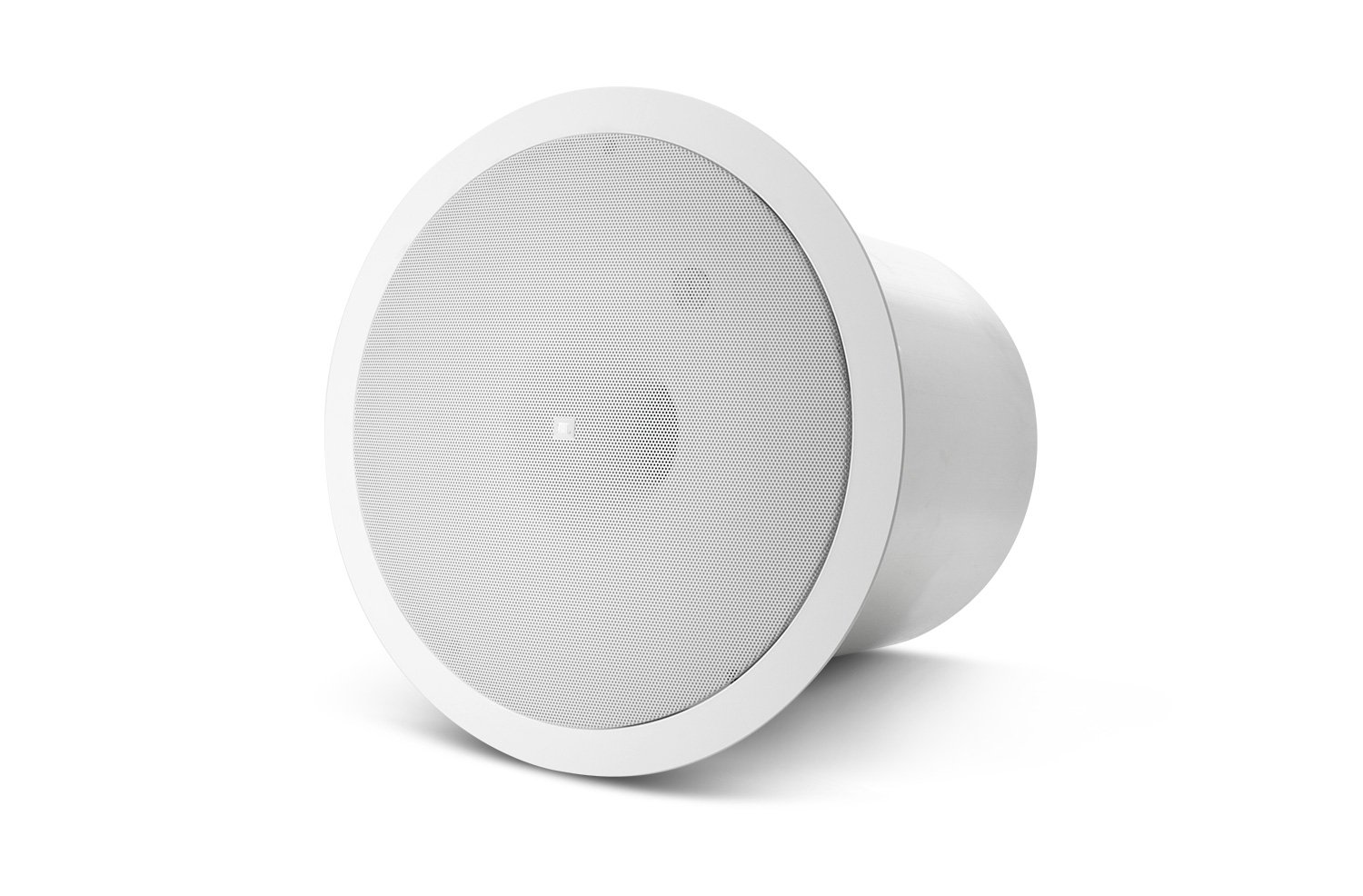

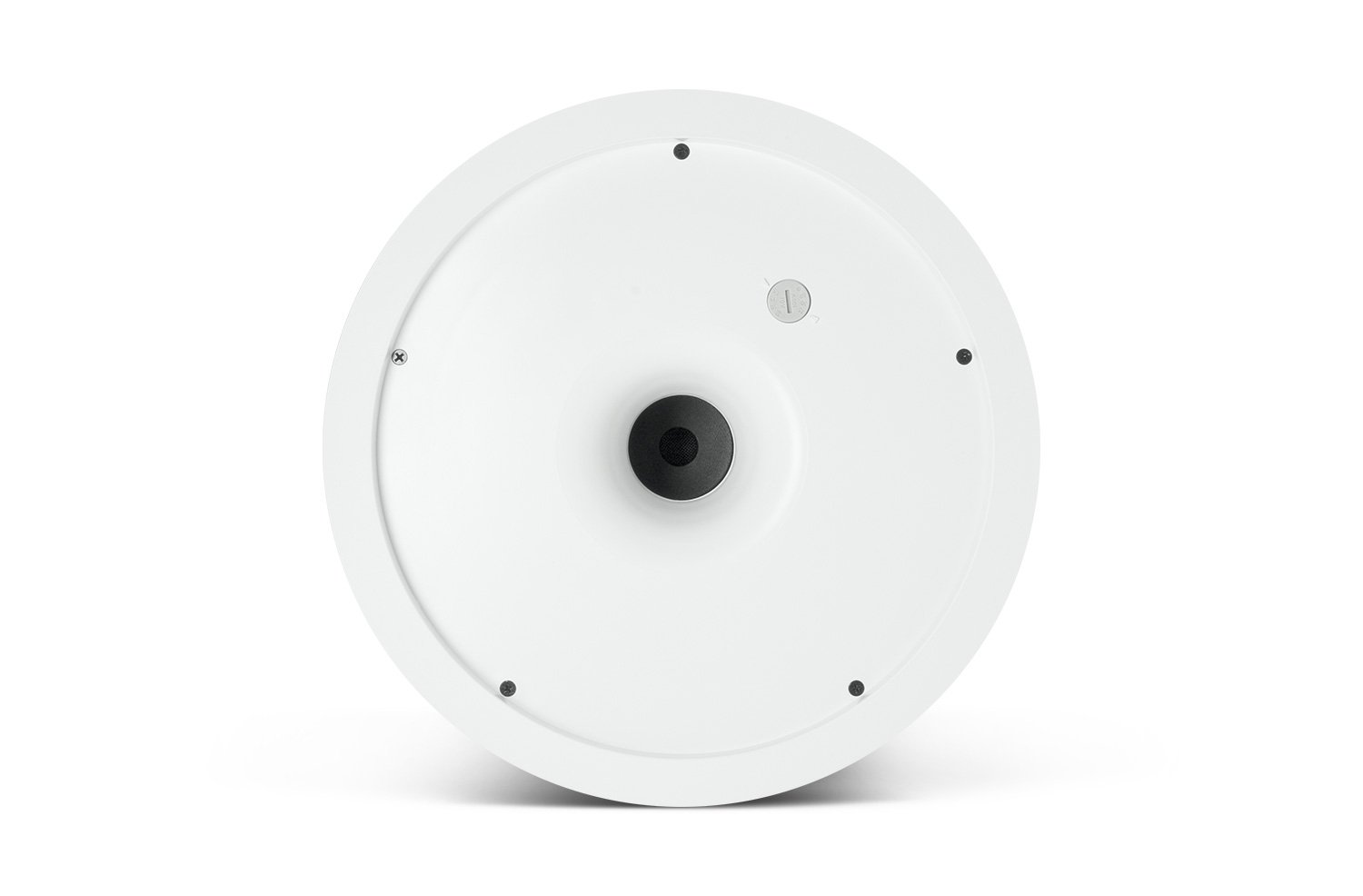

JBL Professional Control 19CST 8in In-Ceiling Subwoofer 200W 70V/100V White
1,602.00 AED Included (5% UAE VAT)
The Control 19CST features advanced proprietary technology, delivering powerful bass performance from a discreet, low-profile in-ceiling design.
Model number
CONTROL 19CST
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
The Control 19CST uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
Features
- Unique Nested Chamber™ design and Linear
- Component: Long excursion 200 mm (8 in) driver.
- Packaged with grille, backcan, and tile rails for fast
- Simple installation and wire connection method.
Specifications
| Frequency Range | 42 Hz – 200 Hz |
| Power Rating | See transformer taps |
| Transformer Taps | 75W, 30W, 15W (& 7.5W @ 70V) |
| Coverage Angle | 180° conical |
| Maximum SPL (1m) | 108 dB (70V/100V, center of ceiling) 114 dB (70V/100V, near corner) |
| Nominal Impedance | 8 ohms |
| Drivers | 200 mm (8.0 in) subwoofer |
| Enclosure Material | Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0 |
| Input Connectors | Removable locking connector with screw-down terminals. |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849. |
| Outside Dimensions (H x Dia) | 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan |
| Ceiling Cutout Size | 305 mm (12.0 in) diameter (cardboard cutout template included) |
| Net Weight (each) | 6.3 kg (14 lb) |
| Shipping Weight (pair) | 14.3 kg (32 lb) |
| Included Accessories | C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), Cutout template, Paint shield, Removable locking wiring connector |
| Sensitivity | 95 dB SPL in ceiling near corner, 89 dB in center of ceiling |
| Color | White |
| Backcan | Formed steel (included “blind-mount”) |
| Baffle/Rim | Medium impact polystyrene, fire rated UL94V-0 |
| Plenum Usage | Yes, backcan included |
