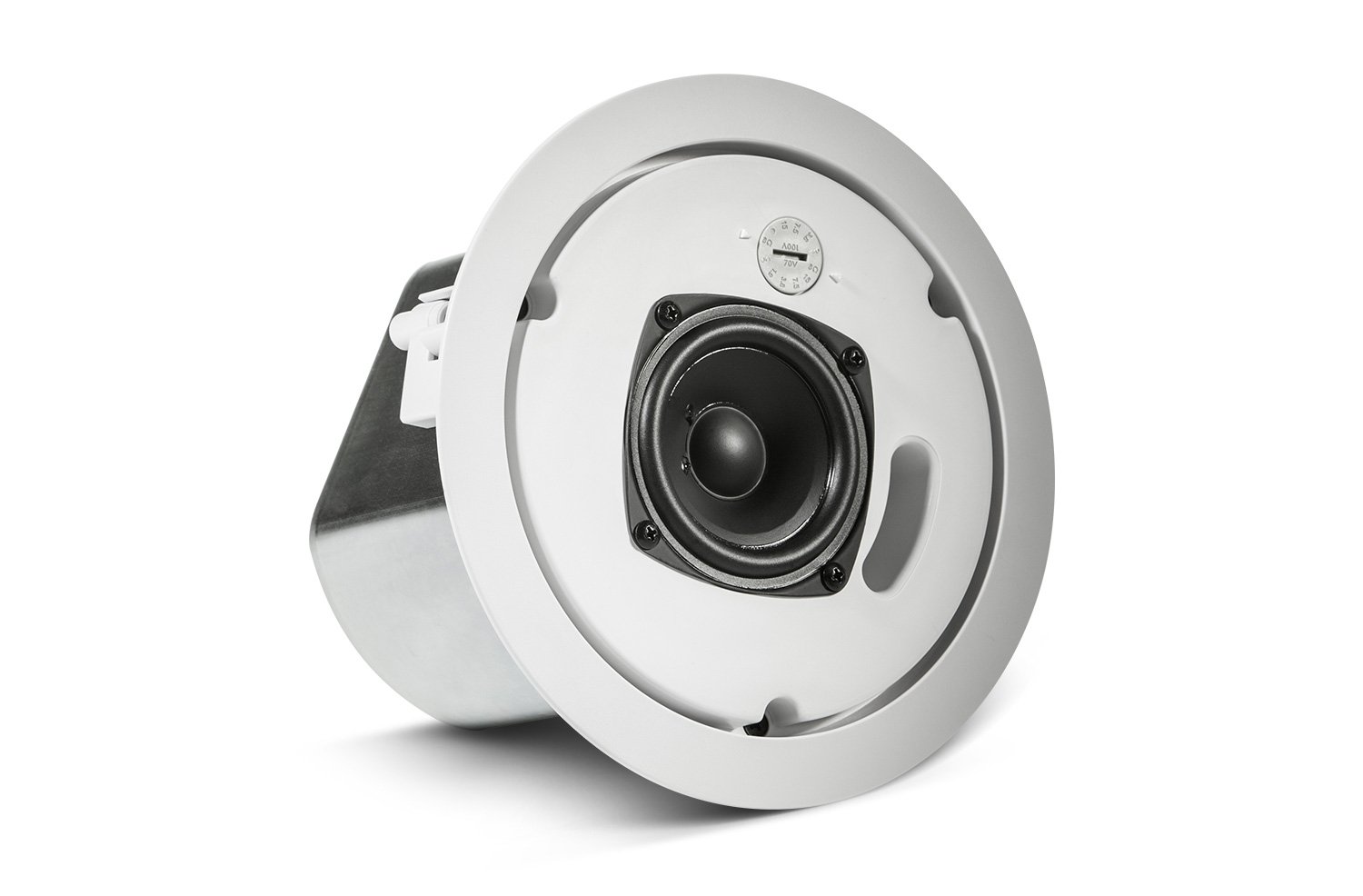

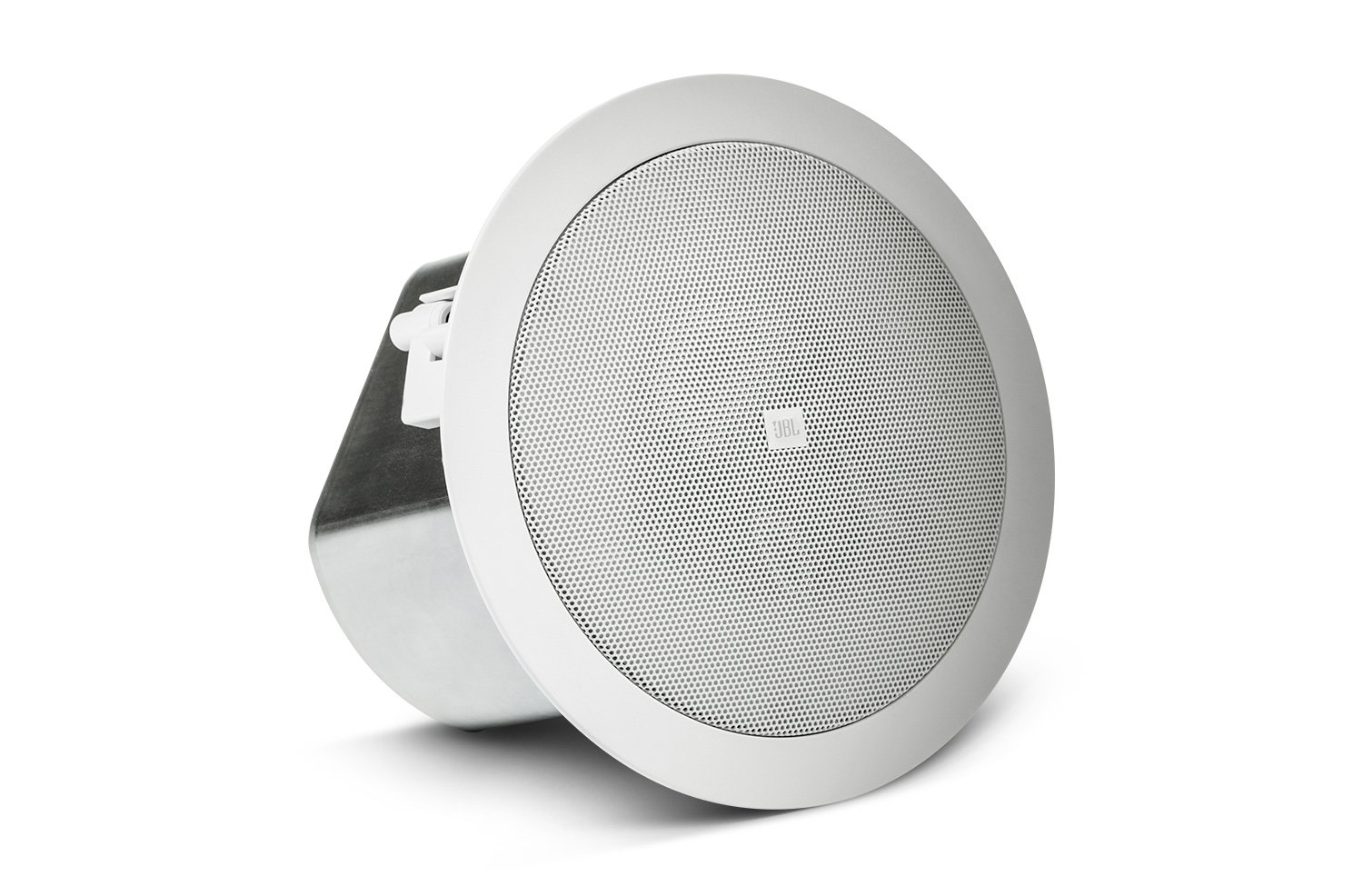

JBL Professional Ceiling Speaker Control 12C/T 3in 40W White
502.00 AED Included (5% UAE VAT)
The Control 12C/T ceiling speaker features a 76 mm (3 inch) wide-bandwidth cone driver in a vented, UV-resistant UL94-V0 paintable baffle, with an integrated blind-mount backcan for effortless installation.
Model number
CONTROL 12C/T
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Control 12C/T: Full-Range Ceiling Speaker
The Control 12C/T is a high-performance ceiling speaker designed to deliver exceptional sound quality with quick and easy installation. Featuring a 76 mm (3 inch) wide-bandwidth cone driver in a vented, paintable baffle, this speaker is suitable for various environments. The backcan is preattached for a swift setup, ensuring reliable sound performance.
Key Features
- 76 mm (3 in) full-range driver
- Quick and easy blind-mount backcan installation
- Combined 70V/100V and low impedance direct operation
- Wide 68 Hz – 17 kHz bandwidth with 130° coverage
Specifications
| Specification | Details |
|---|---|
| Frequency Range (-10dB) | 68 Hz – 17 kHz |
| Power Rating | 40 Watts Continuous Program Power, 20 Watts Continuous Pink Noise |
| Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only) |
| Frequency Response (±3 dB) | 95 Hz – 15 kHz |
| Sensitivity | 84 dB (1kHz – 16 kHz) |
| Coverage Angle | 130° conical |
| Directivity Factor (Q) | 9.8 |
| Directivity Index (DI) | 7.4 dB |
| Maximum SPL (1m) | 97 dB (low-impedance, 103 dB peak) |
| Impedance | 8 ohms |
| Drivers | 76 mm (3 inch) polypropylene cone, butyl rubber surround, high temperature voice coil |
| Input Connectors | Removable locking 4-pin connector with screw-down terminals |
| Connector Wiring | Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru |
| Strain Reliefs | For two cables or two flex conduits |
| Materials | ABS baffle with UL94-V0 fire rating |
| Safety Agency | UL1480, UL2043, NFPA compliant |
| Dimensions | 196 mm diameter x 138 mm depth |
| Ceiling Cutout Size | 170 mm (6.7 in) diameter |
| Ceiling Thickness Range | Up to 35 mm (1.4 in) |
| Net Weight | 1.6 kg (3.5 lbs) |
| Shipping Weight | 6.7 kg (14.7 lbs, pair in master carton) |
| Included Accessories | C-ring, cutout template, paint shield, grille |
| Color | White or Black |
| Backcan | Formed steel |
| Plenum Usage | Yes, backcan included |
