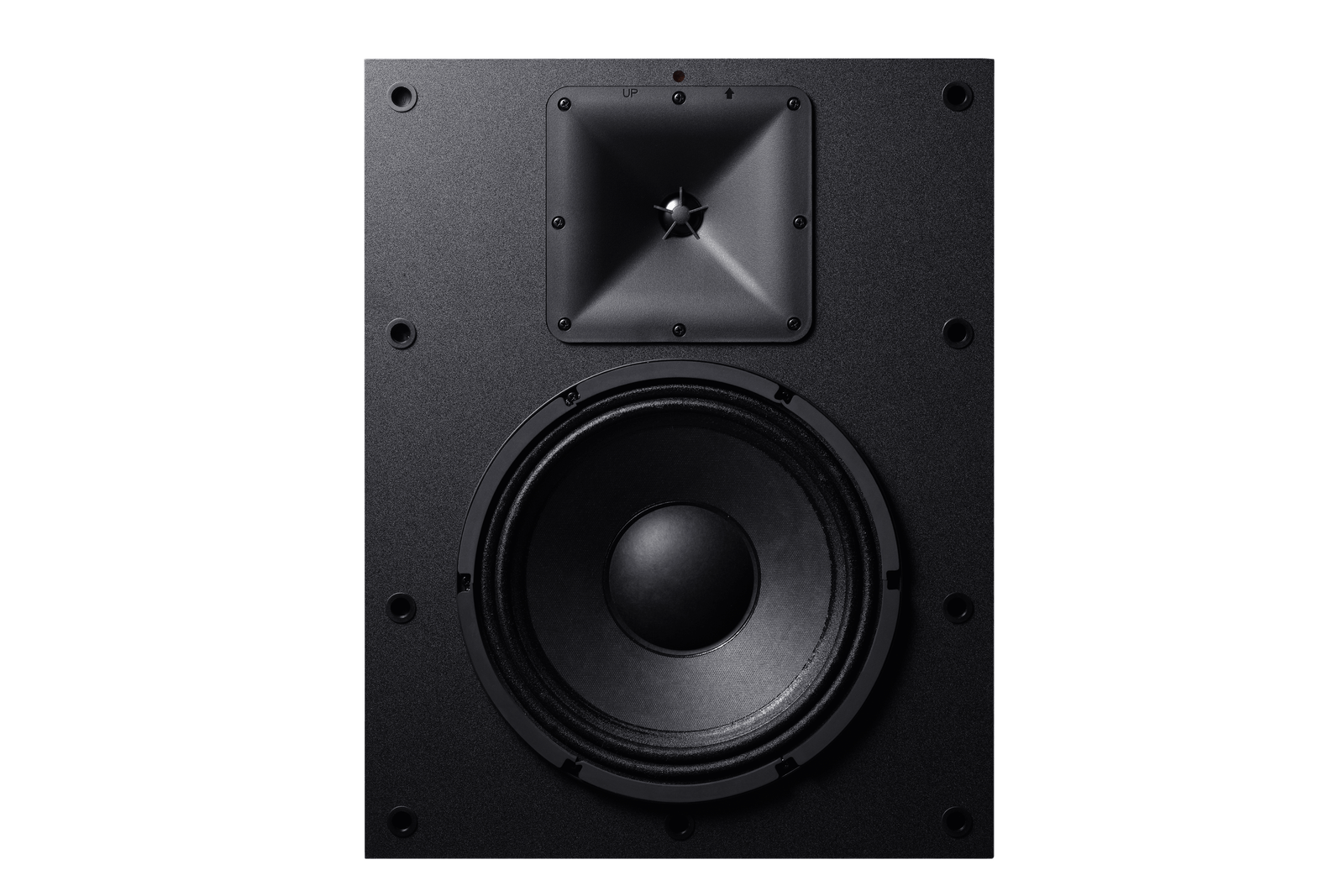

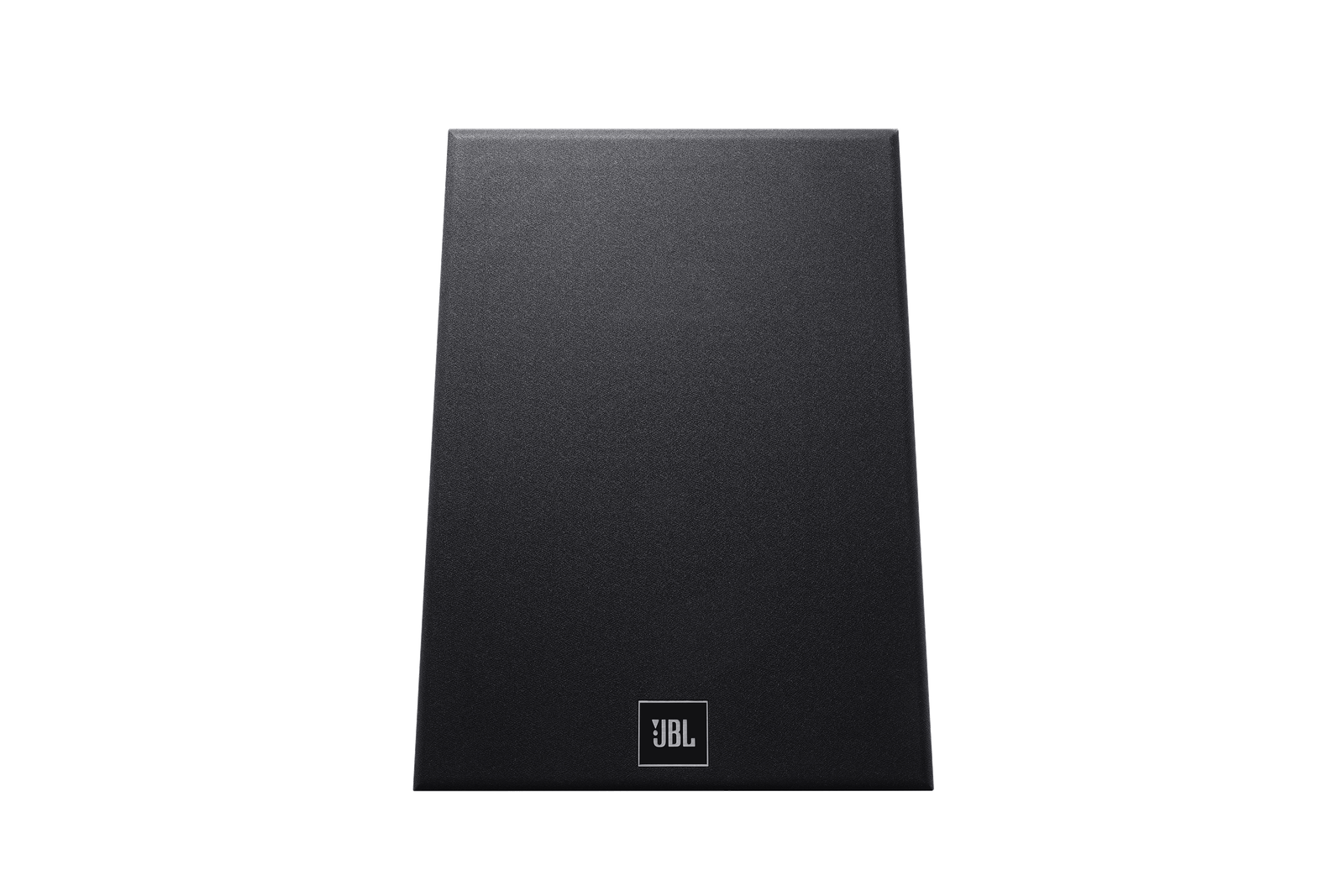

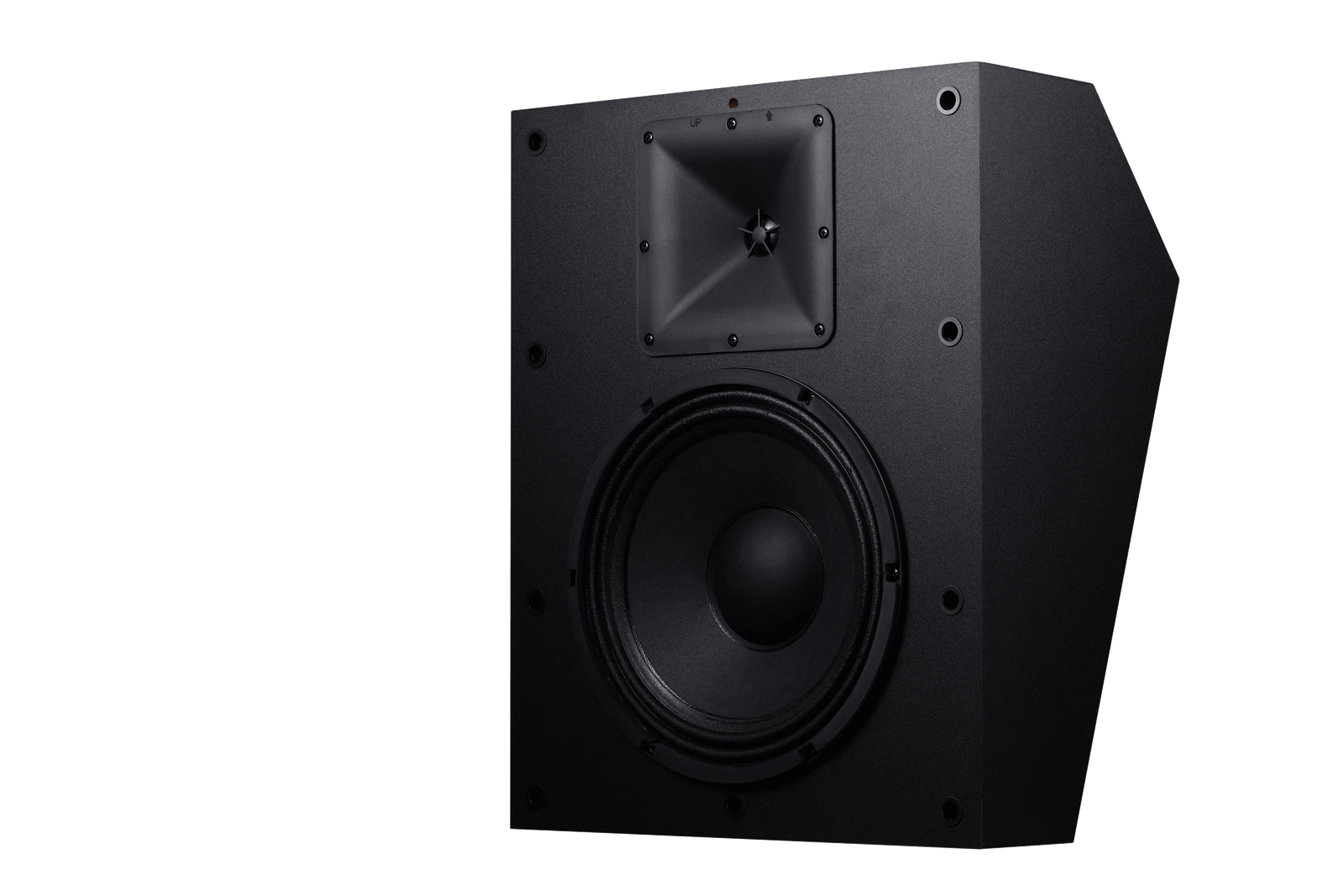

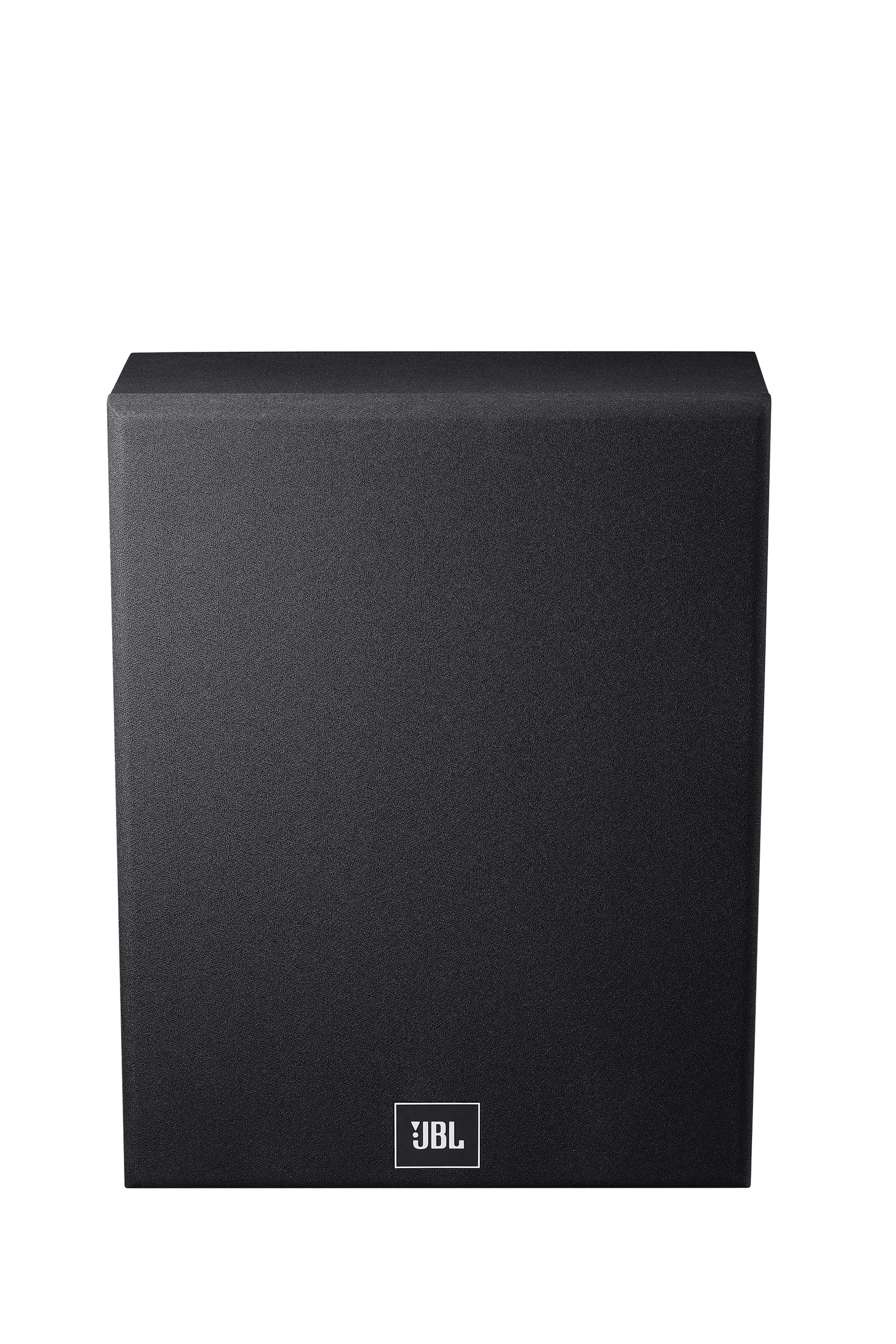

JBL Cinema Series 8102 Surround Speaker

The JBL Cinema Series 8102 high-power professional cinema surround speaker offers exceptional fidelity and performance. Optimized for small- to medium-sized theaters, it provides a premium sound experience at a competitive price point. This 10-inch, 2-way speaker is capable of delivering high SPLs with a throw capability of 40 feet, ensuring maximum coverage and superior headroom for improved performance and long-term stability.

Designed for hassle-free deployment and operation, the 8102 integrates seamlessly with the entire JBL Cinema Series, including the 3-way screen speakers and subwoofers. Creating a fully integrated cinema sound solution is simple when pairing Cinema Series speakers with the JBL CPi2000 cinema processor and Crown XLC Series amplifiers.

Key Features

  • 10-inch transducer, 2-way configuration
  • 260W rated power
  • 8Ω impedance for versatile amplifier wiring
  • 110° x 90° (horizontal x vertical) coverage
  • 20° down-angled front baffle cabinet design
  • 125 dB peak SPL
  • Throw capability of up to 40 ft (12 m)
  • Frequency response: 55 Hz–18 kHz (-10 dB)
  • Quick-access input terminals on enclosure top
  • Compatible with JBL QuickMount™, Omnimount®, or APC Multimount brackets
  • Binding-post connectors for easy wiring
Specification Details
Transducer 10-inch, 2-way
Rated Power 260W
Impedance
Coverage 110° x 90°
Peak SPL 125 dB
Throw Capability 40 ft (12 m)
Frequency Response 55 Hz–18 kHz (-10 dB)
Mounting Options JBL QuickMount™, Omnimount®, APC Multimount brackets
Weight 22.7 kg
