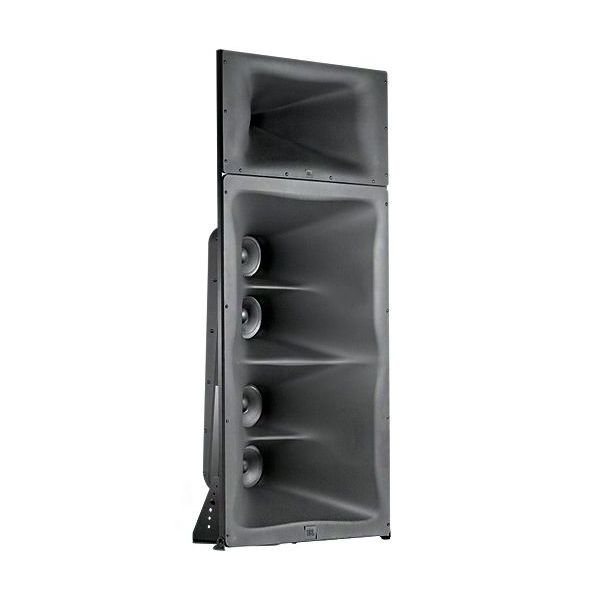

JBL Cinema Three-Way ScreenArray Speaker 4732-M/HF-T with 107 dB Sensitivity
13,853.11 AED Included (5% UAE VAT)
The 4732 ScreenArray is a sophisticated three-way sound system designed for optimal film audio reproduction in medium to large cinema settings, delivering enhanced auditory experiences with precision and clarity.
Model number
4732-M/HFD
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Key Features
The 4732 ScreenArray is designed for precise film sound reproduction in medium to large cinema environments, offering a true three-way system for optimal sound performance.
- Three-way ScreenArray design ensuring maximum output with optimal coverage and minimal distortion
- Triamplified or Biamplified operational capabilities
- Certified for THX applications (4732T)
- Ships fully assembled for easy installation
- Advanced Aperture Waveguide technology providing ultra-low distortion and uniform frequency response
- SSC Screen Spreading Compensation technology
- Focused Coverage Technology for precise audio distribution
- Flat-front waveguide design suitable for baffle wall installation and shallow profile for minimal space requirements
| Specification | Details |
|---|---|
| Frequency Range | 30 Hz – 20 kHz |
| Frequency Response | 40 Hz – 19 kHz (±3 dB) |
| System Sensitivity | 107 dB, 2.83V @ 1m (3.3 ft) |
| Rated Maximum SPL | 130 dB @ 1m (3.3 ft), 136 dB peak |
| System Input Power Rating | LF: 800 W, M/HF: 200 W, 4732-T HF: 85 W |
| Horizontal Coverage Angle | 90° (-6 dB) |
| Vertical Coverage Angle | 20° up, 30° down (-6 dB) |
| Directivity Factor (Q) | 10.0 |
| Directivity Index (DI) | 10 dB |
| Crossover Frequencies | 4732: 250 Hz, 4732-T: 1.2 kHz |
| Dimensions (H x W x D) | 2427 x 762 x 450 mm (95.6 x 30 x 17.75 in) |
| Net Weight | 84.4 kg (186 lbs) |
| Shipping Weight | 103.5 kg (228 lbs) |
