JBL Professional Line Array Column Speaker CBT 100LA-1 325W Black
5,439.00 AED Included (5% UAE VAT)
The CBT 100LA-1 speaker features Constant Beamwidth Technologyâ„¢, delivering advanced pattern control with consistent vertical coverage through innovative analog delay beam-forming and amplitude tapering, eliminating the common issues of narrow vertical beaming and lobing found in traditional column speakers.
Model number
CBT 100LA-1
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

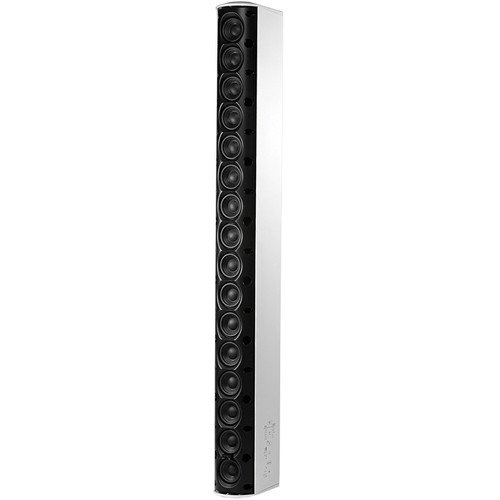

JBL CBT 100LA-1 Line Array Column Speaker
Experience advanced sound reproduction with the JBL CBT 100LA-1, featuring breakthrough Constant Beamwidth Technologyâ„¢. This innovative audio solution provides consistent vertical coverage, eliminating narrow vertical beaming and out-of-coverage lobing typical of traditional column speakers. Ideal for various installations, this speaker is designed to deliver exceptional audio clarity and precision.
| Specification | Details |
|---|---|
| Drivers | Sixteen 50 mm (2 in) Full-Range |
| Frequency Range (-10dB) | 80 Hz – 20 kHz |
| Coverage Angle | Vertical Narrow Mode: 15° (2 kHz – 16 kHz) (±10°), Broad Mode: 40° (1 kHz – 16 kHz) (±10°), Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°) |
| Sensitivity | Narrow: 96 dB (2 kHz – 14 kHz), Broad: 93 dB (2 kHz – 14 kHz) |
| Impedance | 8 ohms (in Thru mode) |
| Power Rating | 325 W (1300W peak), 200 W (800W peak) |
| Maximum SPL (1m) | Narrow: 121 dB cont. ave (127 peak), Broad: 118 dB cont. ave (124 peak) |
| Transformer Taps | 120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch |
| Enclosure | Fiberglass reinforced ABS cabinet, painted aluminum grille |
| Outdoor Capability | IP-55 rated, UV, moisture, and salt-spray resistant |
| Color | Black or White (-WH) |
| Insert Points | 18 M6 insert points on the back panel |
| Mounting | Swivel (pan)/tilt wall bracket included, compatible with third-party brackets |
| Dimensions (H x W x D) | 1000 x 98.5 x 153 mm (39.4 in x 3.8 in x 6.0 in) |
| Net Weight | 7.2 kg (15.8 lb) |
| Included Accessories | Swivel (pan)/tilt wall bracket |
| Optional Accessories | MTC-PC2 terminal panel cover, MTC-CBT-FM1 wall-mount bracket, MTC-CBT-SMB1 stand-mount bracket |
