JBL Cinema Two-Way ScreenArray Loudspeaker C222HP-TOP 1500W for Cinemas
9,179.11 AED Included (5% UAE VAT)

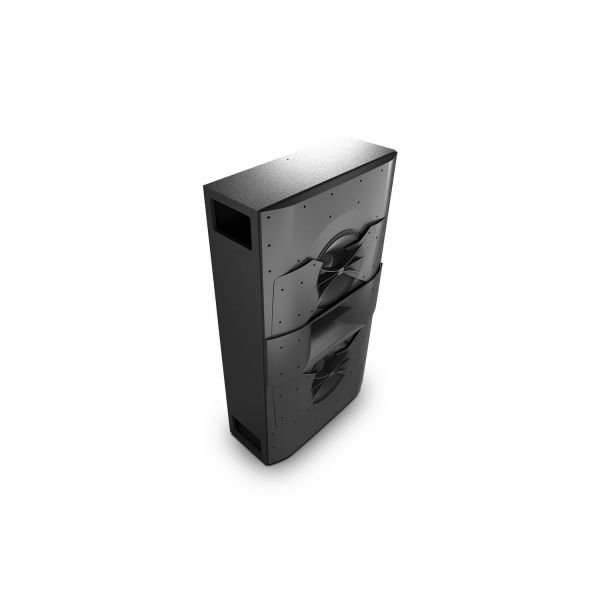

The C222HP Two-Way ScreenArray Cinema Loudspeaker from JBL features Dual Dissimilar Arraying and Acoustic Aperture Technology, offering uniform coverage and accurate sound in a compact design suitable for small to mid-sized cinemas, multiplexes, and dubbing stages. Trusted by top movie studios, this loudspeaker ensures a captivating audio experience for all audience members.
Model number
C222HP-TOP
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
JBL C222HP Two-Way ScreenArray Cinema Loudspeaker
The JBL C222HP Two-Way ScreenArray Cinema Loudspeaker is designed to deliver exceptional audio quality in small and mid-sized cinema environments, as well as studios and dubbing stages. With the latest advancements in audio technology, this loudspeaker offers outstanding performance, ensuring every audience member enjoys a captivating and authentic sound experience.
Key Features
- Next-generation two-way ScreenArray® design for maximum output, enhanced coverage, and minimal distortion.
- Patent-pending Dual Dissimilar Arraying Technology for optimized coverage in raked seating areas and extended HF output power.
- Acoustic Aperture Technology for low distortion, high sensitivity, and improved mid-range performance.
- Compact 14″ deep footprint, ideal for installations with space constraints.
- Maximum throw distance of 35 meters (115 feet).
Specifications
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 44Hz – 18kHz |
| Frequency Response (-6 dB) | 40Hz – 20kHz |
| Frequency Response (-10 dB) | 36Hz – 20kHz |
| Max Continuous SPL | 135 dB |
| Horizontal Coverage (-6 dB) | 100° @ 4kHz |
| Vertical Coverage (-6 dB) | Asymmetrical 600 (+25, -45 @ 4kHz) |
| LF Nominal Impedance | 4Ω |
| HF Nominal Impedance | 8Ω |
| LF Minimum Impedance | 3.15Ω @ 140Hz |
| HF Minimum Impedance | 3.89Ω @ 9kHz |
| LF Power Handling (2Hr AES Rating) | 1200W |
| LF Power Rating (100Hr AES Rating) | 720W |
| HF Power Handling (2Hr AES Rating) | 85W |
| LF Sensitivity | 103 dB SPL @ 2.83V |
| HF Sensitivity | 112 dB SPL @ 2.83V |
| Low Frequency | 2 x 2275H-BK |
| High Frequency | 2 x 2515XP-J |
| Maximum Throw Distance | 35 meters (115 feet) |
| Dimensions (H x W x D) | 59 x 33.75 x 14 inches (149.8 x 85.73 x 35.56 cm) |
| Input Connectors | Screw Terminal Barrier Strip |
