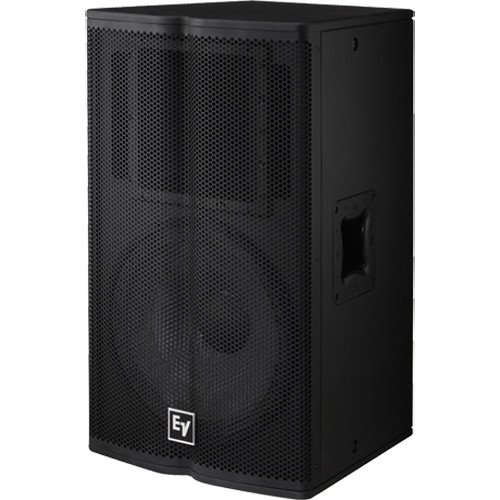

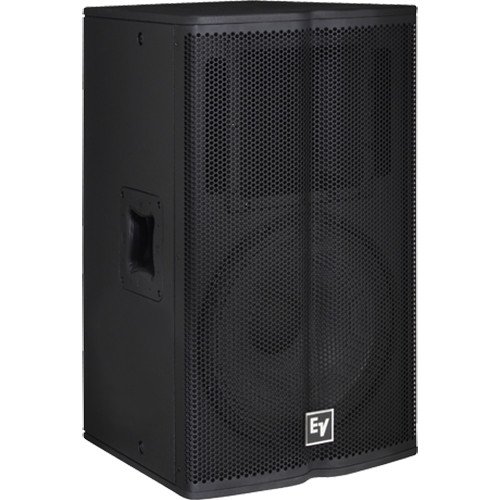

Electro-Voice TX-1152 15-Inch 500W 2-Way PA Speaker 133dB SPL
4,752.00 AED Included (5% UAE VAT)
The TX1152 PA speaker features a DH3, high output 1.25″ titanium compression driver and a Constant Directivity 60 x 40 horn for smooth high-frequency response and controlled dispersion. Its SMX2151 15″ woofer is designed with an FEA optimized magnet structure and a shorting ring to minimize distortion and enhance vocal clarity even at high sound pressure levels. The sophisticated crossover includes 24 dB/octave slopes and equalization, ensuring balanced vocal response, extended high frequencies, and reliable protection during long-term use.
Model number
TX-1152
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
TX1152 Professional PA Speaker

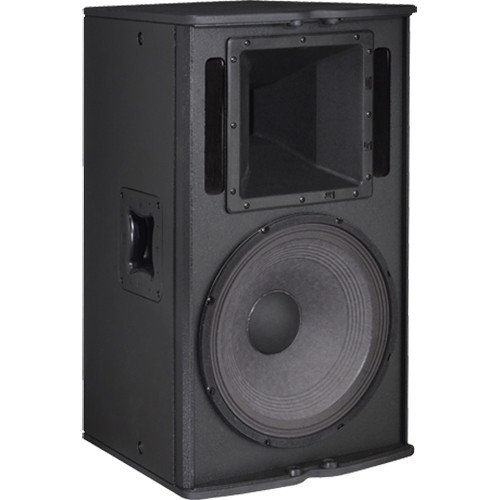

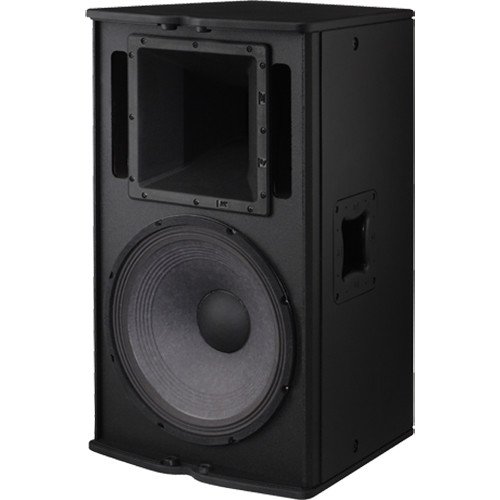

The TX1152 PA speaker employs advanced audio technology to deliver high-quality sound for both portable and fixed installations. Featuring a DH3 1.25″ titanium compression driver paired with a 60° x 40° Constant Directivity horn, the TX1152 offers smooth frequency response up to 20 kHz and precise pattern control in medium throw applications.
The robust SMX2151 15″ woofer includes an FEA-optimized magnet structure and a shorting ring to minimize distortion and enhance intelligibility at high sound pressure levels. The sophisticated crossover network utilizes 24 dB/octave slopes and equalization to maintain a smooth vocal range response, extend high frequencies, and ensure long-term reliability with an integrated protection circuit.
The rugged trapezoidal enclosure is constructed from a combination of plywood and MDF with a durable EVCoat finish, providing both strength and lightweight portability. The dent-resistant grille, rotatable logo, versatile handles, and multiple mounting options make the TX1152 an ideal choice for various sound reinforcement needs.
Specifications
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 55 Hz – 20 kHz |
| Frequency Range (-10 dB) | 40 Hz – 20 kHz |
| Recommended High-Pass Frequency | 40 Hz |
| Axial Sensitivity | 100 dB (1W/1m) |
| Maximum Calculated SPL | 133 dB |
| Horizontal Coverage | 60° or 40° |
| Vertical Coverage | 40° or 60° |
| Power Handling | 500W continuous, 2000W peak |
| Low-Frequency Transducer | SMX2151 15″ (381mm) driver |
| High-Frequency Transducer | DH3 1.25″ (32mm) diaphragm compression driver |
| Crossover Frequency | 1650 Hz |
| Nominal Impedance | 8 Ohms |
| Minimum Impedance | 5.6 Ohms |
| Connectors | (2) Neutrik Speakon NL4 |
| Enclosure Material | Plywood and MDF with EVCoat |
| Grille | 16 GA steel, black powdercoat, with rotatable logo |
| Suspension | (6) 3/8″ threaded points |
| Dimensions (H x W x D) | 30.6″ x 17.5″ x 17.5″ (776mm x 446mm x 446mm) |
| Net Weight | 61.2 lb (27.8 kg) |
| Shipping Weight | 68.7 lb (31.2 kg) |
