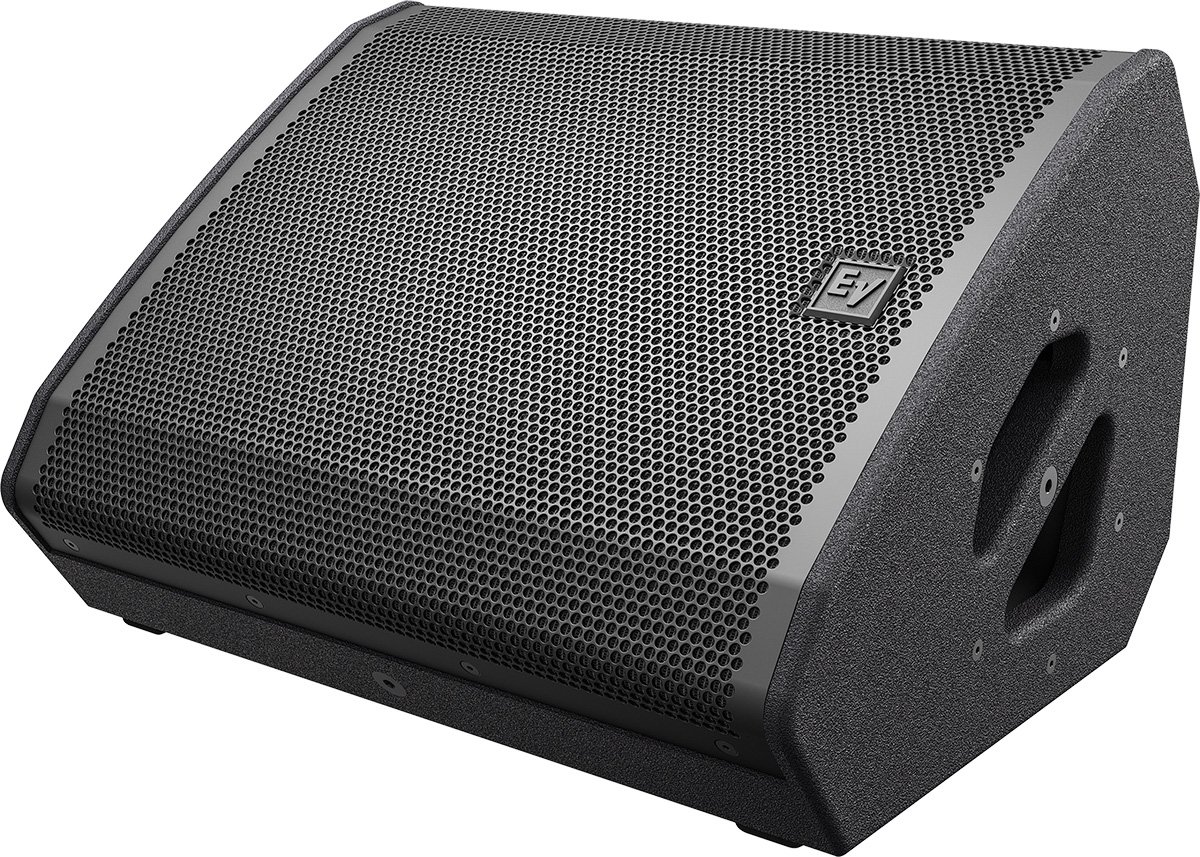

Electro-Voice MFX-12MC-B 12 Inch Coaxial Monitor 450W Black for Stage
10,818.89 AED Included (5% UAE VAT)
The Electro-Voice MFX-12MC is a versatile 12" coaxial monitor designed for live sound stage use and short throw reinforcement, suitable for various permanent installations. It features a low stage profile to preserve sight lines, recessed input panel with NL4 connections, and a passive/biamp switch. Optimized with Dynacord TGX or IPX amplifiers through SONICUE software, it ensures excellent performance across diverse applications.
Model number
MFX-12MC-B
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Electro-Voice MFX-12MC 12″ Multi-use Coax Monitor

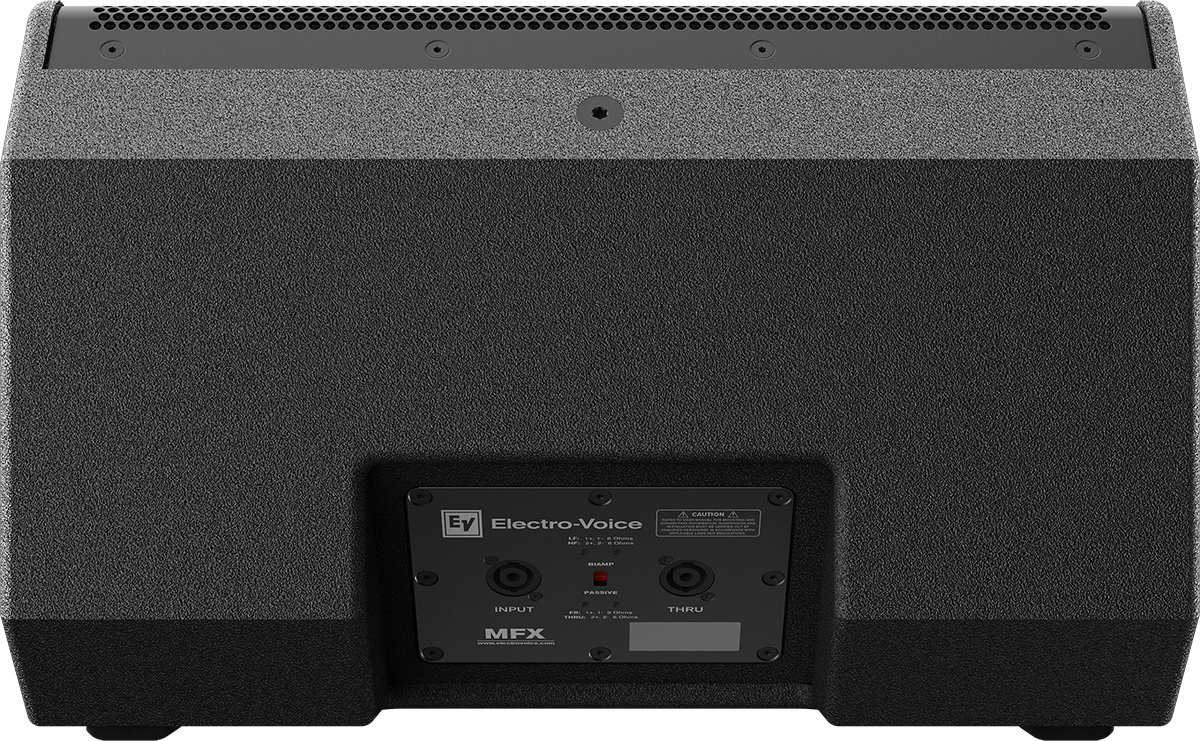

The Electro-Voice MFX-12MC 12″ multi-use coax monitor delivers a new level of reference performance from compact, two-way, coaxial designs. Designed for live sound stage monitoring, it also serves as a full-range sound reinforcement speaker suitable for various permanent installations. Its internal structure maximizes internal volume while maintaining a low profile to preserve sight lines. The protected input panel includes NL4 input and loop-through connections and a passive/biamp switch.
With versatility in deployment, these monitors are a valuable investment for live sound companies. EV provides a library of DSP settings optimized for specific uses, with recommended amplifier matches being the Dynacord TGX or IPX series. The settings run in Dynacord’s SONICUE control software, ensuring efficient integration into the amplifier’s DSP section.

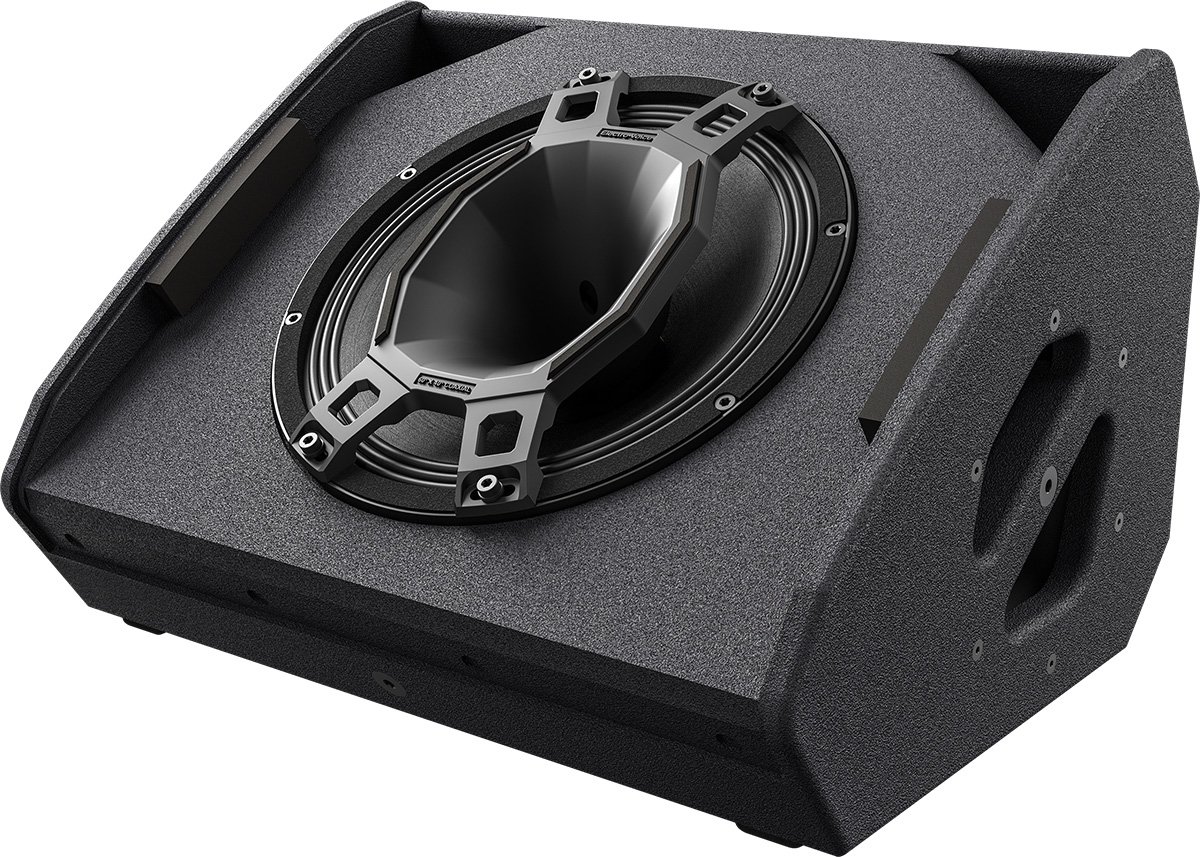

The coaxial driver and horn assembly can be rotated 90° for install applications, allowing alterations in coverage pattern. Both models come with integrated pole cups, M10 suspension points, and configurations for wall-mount or flown use.
Key Features
| Specification | Details |
|---|---|
| Frequency Response (-3 dB) | 62 Hz – 18 kHz |
| Frequency Range (-10 dB) | 50 Hz – 19 kHz |
| Coverage | 60° x 40° FOH, 40° x 60° Monitor |
| Axial Sensitivity | 97 dB (1 W/1 m) |
| Max. SPL | 135 dB |
| Power Handling | 450 W (Continuous), 3000 W (Peak) |
| Impedance (Passive) | 8Ω |
| Impedance (Biamp LF) | 8Ω |
| Impedance (Biamp HF) | 8Ω |
| Transducer | CXCA3128-1CA |
| Connectors | Neutrik NL4 input with NL4 pass through |
| Enclosure | 12-18-mm Baltic birch plywood with EVCoat |
| Monitor Angles | 35° and 55° |
| Grille | 1.5-mm zinc plated steel with corrosion resistant coating |

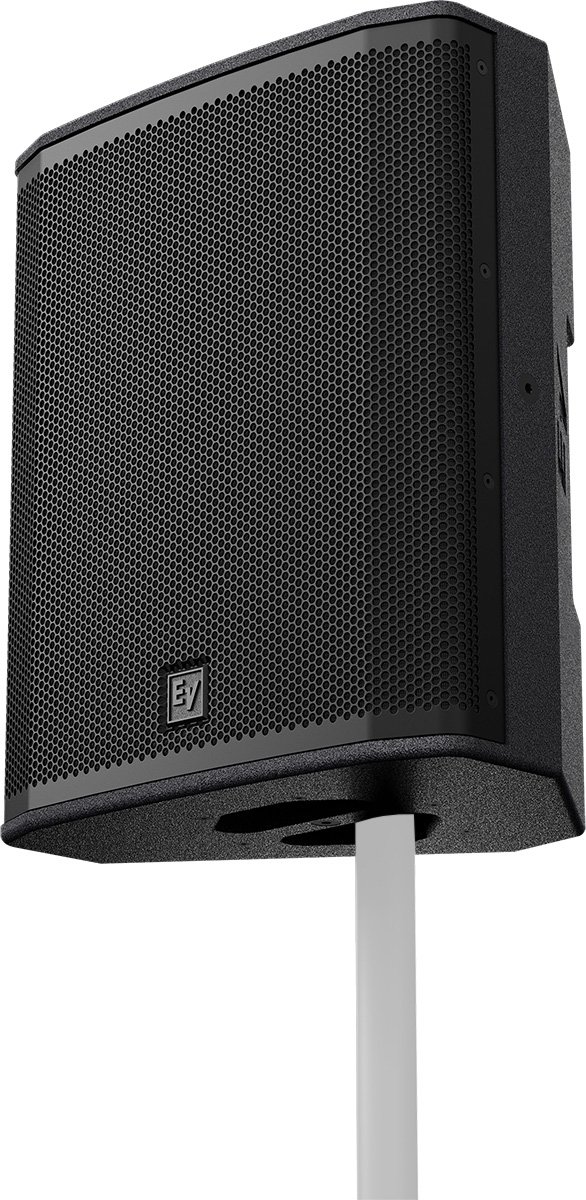

| Handles | Two with integrated cup for standard 35-mm pole |
| Suspension | Four M10 suspension points |
| Color | Black |
| Dimensions (HxWxD) | 19.7 x 16.5 x 11.7″ (500 x 420 x 298mm) |
| Net Weight | 41.9Lbs (19kg) |
| Shipping Weight | 46.7Lbs (21.2kg) |
