DBX Professional Personal Monitor Controller PMC16 with 16 Channels and Lexicon Reverb
3,395.00 AED Included (5% UAE VAT)
The PMC16 is a 16-channel personal monitor controller designed for precise audio mixing with dbx TR1616 or any BLU link compatible device. It supports monitoring via headphones, in-ear monitors, powered monitors, or traditional wedge monitors. Users can daisy chain multiple PMC16s through CAT5e cable, enabling each to receive 16 channels of high-resolution digital audio for personalized mixes. The PMC16 features a 16-channel mixer with level, panning, effect send, muting, soloing controls, onboard Lexicon® reverb, stereo width control, EQ settings, and dbx limiting. Its Setup Wizard, channel grouping, and 16 preset locations enhance usability.
Model number
DBXPMCM-04
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

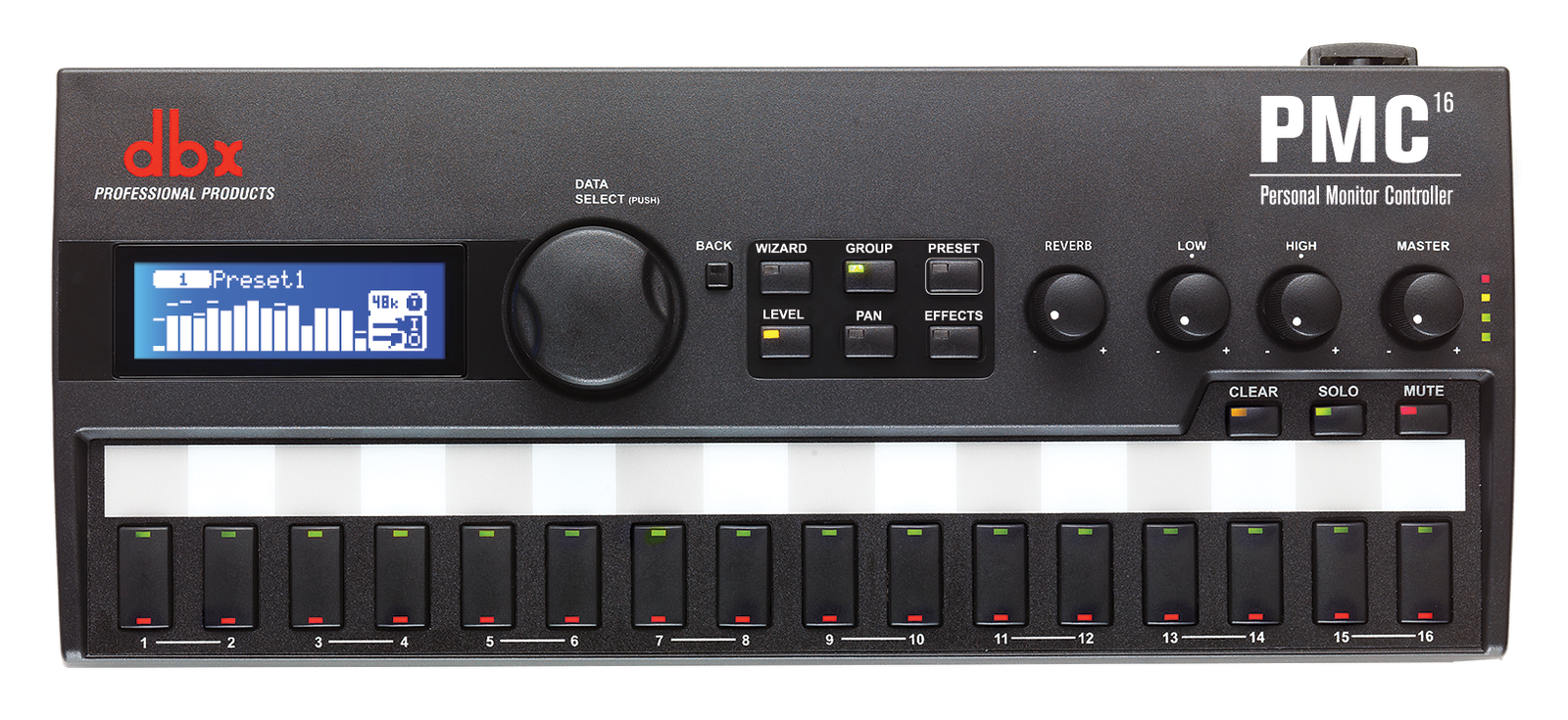

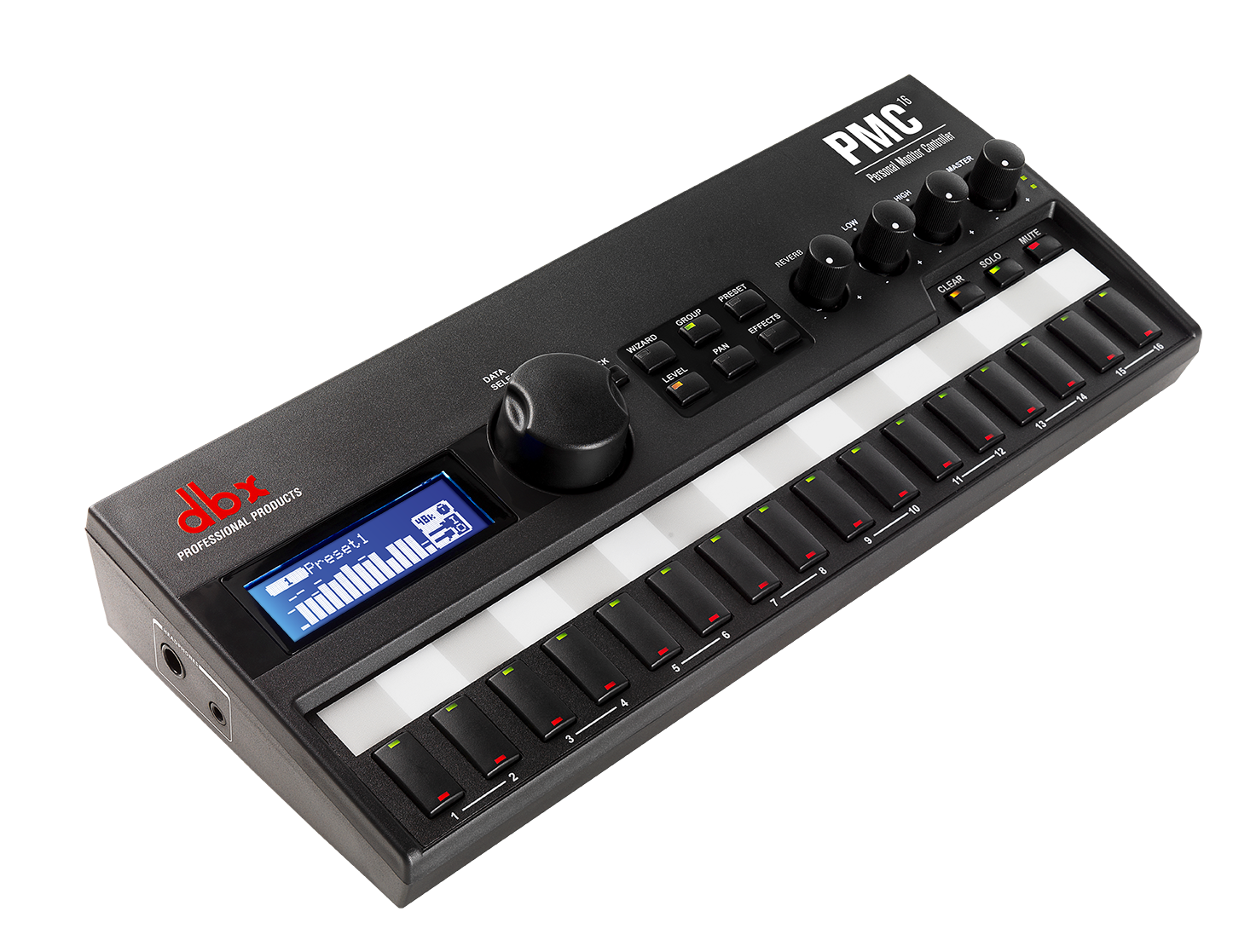

PMC16 Personal Monitor Controller
The PMC16 is a versatile 16 channel personal monitor controller, perfect for creating custom mixes from 16 channels of audio. Compatible with the dbx TR1616 and other BLU link devices, the PMC16 is designed to work efficiently with headphones, in-ear monitors, powered monitors, or traditional wedge monitors. By daisy chaining multiple PMC16 units using CAT5e cable, each user can receive high-resolution digital audio and tailor their own mix to their specific monitoring needs.
This robust device offers full control over levels, panning, effect send levels, muting, and soloing via its 16 channel mixer section. It includes onboard Lexicon® reverb for a professional finish. The output section features stereo width control, wedge monitor compensation EQ, master high and low EQ, master level control, and dbx limiting. Users can benefit from the Setup Wizard for simple configuration, full 16 channel level metering, channel grouping, and 16 preset locations for quick recall of configurations and mixes. Its intuitive interface ensures that you can finely tune your mix exactly as you desire, in real time.
Key Features
| Specification | Details |
|---|---|
| Channels | 16 |
| Control Features | Level, Pan, Mute, Solo, Reverb Send |
| Presets | 16 Locations for Configuration Recall |
| Display | LCD with 16 Channel Metering |
| Reverb | Built-In Lexicon® Reverb |
| Limiting | dbx PeakStopPlus™ Limiting |
| EQ | Global High & Low |
| Master Control | Global Master Level & Stereo Width |
| Audio Bus | BLU Link High Bandwidth, Fault Tolerant |

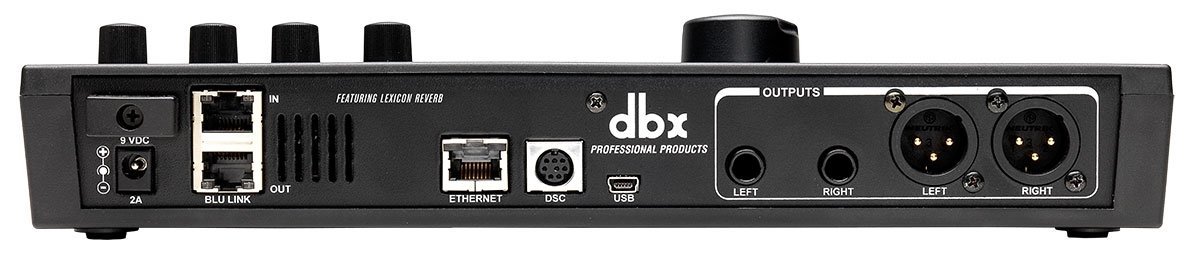

| Outputs | XLR & 1/4” Stereo or Mono, 1/8” & 1/4” Headphone |
| Setup Wizard | Includes |
| Sampling Rates | 48 kHz & 96 kHz |
| Channel Capabilities | Linking, Grouping, Multi-Select |
| BLU Link Ring Support | Up to 60 PMC16s |
| Mount | Built-In Sturdy Mic Stand Mount |
| Firmware Updates | USB Port |
