DBX Professional Graphic Equalizer DBX1215V-EU Dual-Channel 15-Band ±15dB Boost/Cut
1,695.00 AED Included (5% UAE VAT)
The dbx 1215 is a dual-channel, 15-band graphic equalizer with 2/3 octave sliders, featuring selectable boost/cut ranges, high-pass filters with bypass, active balanced input/output, and chassis/signal ground-lift for hum isolation.
Model number
DBX1215V-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description

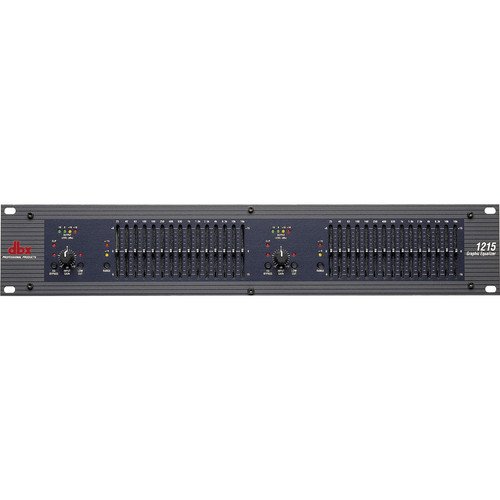

dbx 1215 Dual-Channel Graphic Equalizer
The dbx 1215 is a robust 15-band dual-channel graphic equalizer designed for professional sound reinforcement applications. With straightforward controls, it ensures precise audio adjustments, making it ideal for demanding environments.
Key Features
| Specification | Details |
|---|---|
| Graphic Equalizer | Dual-channel, 15-band, 2/3 octave |
| Boost/Cut Range | ±6 dB or ±15 dB selectable |
| Sliders | 45mm center-detent |
| Filters | Fixed high-pass filters with bypass |
| Input/Output Connections | Active balanced, XLR, 1/4″ TRS, Barrier Strip |
| Ground Isolation | Chassis/signal ground-lift |
| Noise Reduction | RF-filtered inputs and outputs |
| Power Supply | Internal |
| Compatibility | Magnetically isolated transformer |
| Relay Bypass | Power-off hard-wire with 2-second delay |
Specifications
| Specification | Details |
|---|---|
| Number of Channels | 2 |

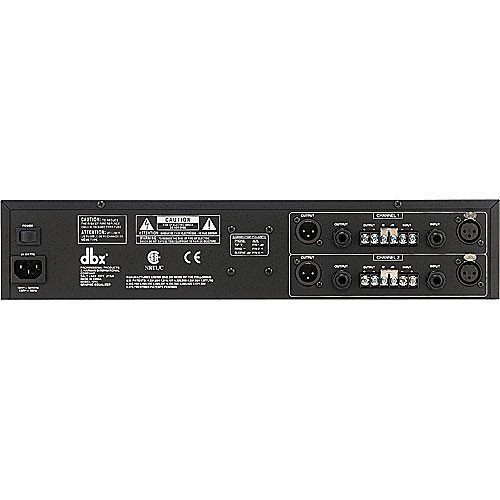

| Inputs | 2 x XLR, 2 x 1/4″ TRS, Barrier Strip |
| Outputs | 2 x XLR, 2 x 1/4″ TRS, Barrier Strip |
| Maximum Input Level | +21 dBu |
| Frequency Bands | 15 x 2, ISO spacing |
| Bandwidth | 2/3 Octave |
| Range (Boost/Cut) | ±6 dB or ±15 dB selectable |
| Maximum Output Level | +21 dBu |
| Frequency Response | 10 Hz to 50 kHz |
| Dynamic Range | 115 dB |
| Noise | -97 dBu |
| Dimensions | 2 RU, 7 15/16″ Deep |
| Power-Off Relay | Hardwire bypass with 2-second delay |
Packaging Info
| Specification | Details |
|---|---|
| Package Weight | 11.68 lb |
| Box Dimensions | 22.4 x 11.4 x 7.5 in |
