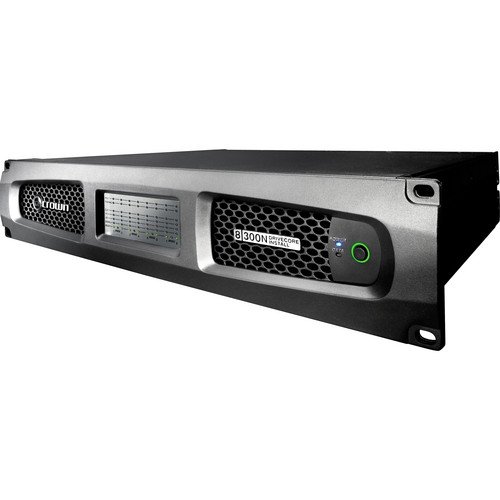

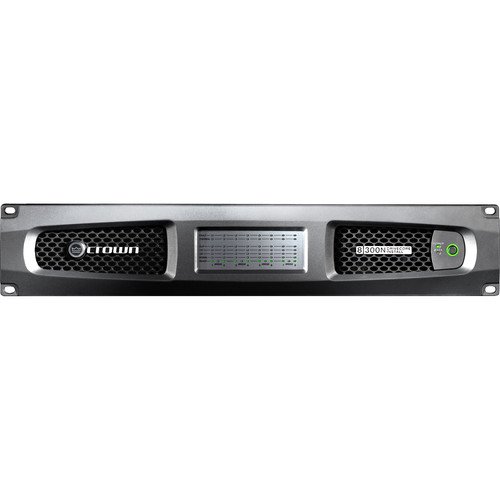

Crown Audio DCI 8|300N 8-Channel Network Amplifier 300W Class-D
25,980.05 AED Included (5% UAE VAT)
The Crown Audio DCI8300N 8-Channel Network Amplifier delivers 300W of high-performance sound utilizing Harman DriveCore technology for reliability and efficiency, supporting impedance loads from 2 to 16 ohms, including 70/100V speakers. It features BLU link connectors for 256 digital audio channels, HiQnet Audio Architect control, and a programmable GPIO control port, alongside onboard DSP with EQ filters, crossovers, delay, and LevelMAX limiters. Comes with protection circuits and includes a power cord.
Model number
DCI8X300N-U-EKFX
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Crown Audio DCI8300N 8-Channel DriveCore Network Amplifier
The Crown Audio DCI8300N is an 8-channel network amplifier designed to cater to the demanding requirements of modern sound system installations. With 300W of power and advanced processing capabilities, this Class-D amplifier is equipped with Crown’s patented DriveCore technology, ensuring superior performance, low power consumption, and exceptional reliability.
Advanced Audio Features
The DCI8300N integrates Harman’s DriveCore technology, consolidating multiple discrete circuits into a single, high-performance chip. This innovation provides enhanced output, energy efficiency, and sturdiness in various audio applications.

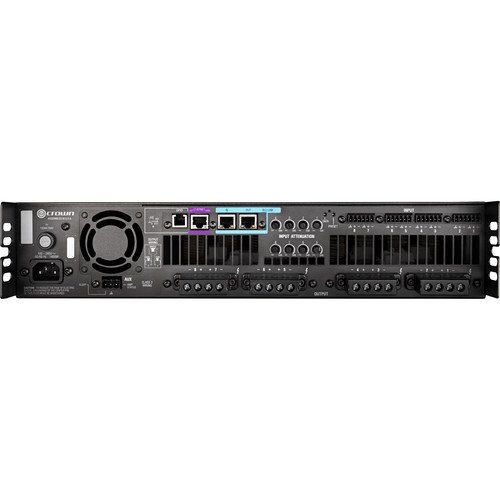

This amplifier is compatible with different impedance loads, ranging from 2 to 16 ohms, as well as 70/100V speaker systems. Its rear panel includes BLU link connectors, allowing the delivery of up to 256 channels of digital audio using standard Cat 5e cabling. An Ethernet port enables control via HiQnet Audio Architect, while the GPIO control port allows for analog component control, enhancing the flexibility of your sound system setup.
Robust DSP Capabilities
The built-in digital signal processor includes features such as input/output EQ, crossovers, time alignment, and LevelMAX limiters, offering exceptional audio control and protection. The amplifier’s protective circuits guard against short circuits, overheating, mismatched loads, DC faults, and more, ensuring safe and consistent operation.
Key Specifications
| Specification | Details |
|---|---|
| Number of Channels | 8 |
| Power Rating | 150W to 600W (varies by configuration) |
| Amplifier Class | Class-D |
| Load Impedance / Voltage | 2 to 16 Ohms, 70/100V |
| Protections | Short Circuit, DC, Overvoltage, Thermal, and more |
| Frequency Response | 20 Hz to 20 kHz ±0.25 dB |
| Damping Factor | > 1000 |
| Input Sensitivity | 1 Vrms to 2 Vrms |
| Input Impedance | 10k Ohms (Balanced), 5k Ohms (Unbalanced) |
| Max Gain | 34 dB |
| Max Input Level | +20 dBu |
| SNR | > 104 dB |
| THD | 0.35% at rated power |
| Crosstalk | > 80 dB |
| Dimensions | 19.0 x 3.5 x 14.2 inches |
| Weight | 23.5 lbs |
