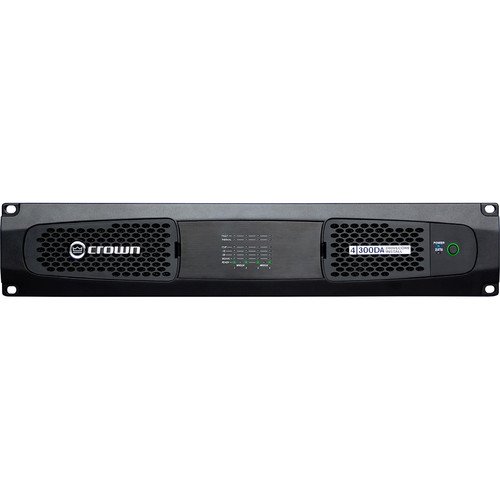

Crown DCi 4/300DA 4-Channel Amplifier 300W Dante AES67 DSP
13,103.37 AED Included (5% UAE VAT)
The Crown DCi 4/300DA DriveCore Install DA Series is a 4-channel power amplifier featuring Dante/AES67 networked audio, integrated DSP, and 300W output per channel for 2-, 4-, 8-, and 16-Ohm speakers or 70/100Vrms systems. It supports bridged channels for higher power applications like subwoofers and offers advanced configuration and monitoring via HiQnet protocols and Audio Architect software. The amplifier includes LevelMAX limiting, input compression, and EQ, with additional connections for redundancy and GPIO port for external control.
Model number
DCI4X300DA-U-EKFX
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Crown DCi 4/300DA DriveCore Install DA Series 4-Channel Amplifier
The Crown DCi 4/300DA DriveCore Install DA Series is a cutting-edge 4-channel power amplifier, designed for professional audio installations. It excels in providing high-quality sound through its advanced Dante / AES67 networked audio capabilities and integrated DSP, delivering 300W per channel. This amplifier supports various speaker configurations and can bridge channels for more demanding applications.
Product Features
- DriveCore technology ensures efficient and consistent performance.
- Supports 2-, 4-, 8-, and 16-Ohm speakers or 70/100Vrms systems.
- Advanced DSP with LevelMAX limiting, input/output EQ, and more.
- Compatible with Dante Domain Manager for enhanced networked audio transport.
- HiQnet Audio Architect support for remote configuration and monitoring.
Key Specifications
| Specification | Details |
|---|---|
| Inputs | 3-pin block connectors |
| Outputs | Terminal strips |
| Output Power (Dual Mode) | 2 Ohms: 150W, 4 Ohms: 300W, 8 Ohms: 300W, 16 Ohms: 150W, 70/100 Vrms: 300W per channel |
| Output Power (Bridge Mono Mode) | 4 Ohms: 300W, 8/16 Ohms: 600W, 140/200 Vrms: 600W |
| Voltage Gain | 34 dB |
| Frequency Response | 20 Hz to 20 kHz (±0.25dB) |
| Signal to Noise Ratio | > 108 dB |
| THD | < 0.35% |
| Intermodulation Distortion | ≤ 0.35% |
| Damping Factor | > 1000 (20 to 100 Hz) |
| Crosstalk | > 80 dB |
| CMRR | > 70 dB (20 Hz to 1 kHz) |
| DC Output Offset | ±10 mV |
| Input Impedance | 10 kOhms balanced, 5 kOhms unbalanced |
| Max Input Level | +20 dBu (compression), +26 dBu (clipping) |
| AC Mains | 100 to 240 VAC, 50/60 Hz |
| Power Connector | 15 A IEC |
| Cooling | Variable-speed forced air |
| Dimensions | 14.3″ / 36.2 cm |
| Weight | 20.1 lb / 9.1 kg |
