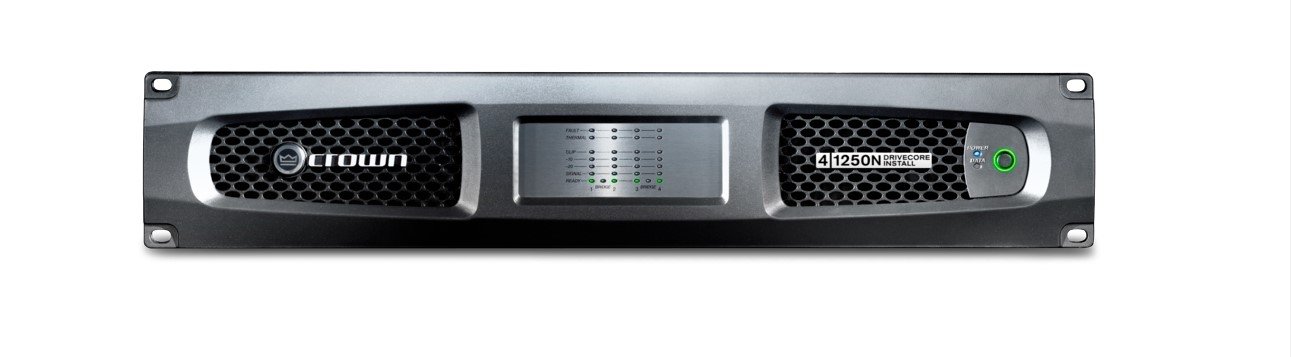

Crown Audio 4-Channel 1250W Power Amplifier DCI4X1250N-U-EKFX Network BLU Link
24,065.83 AED Included (5% UAE VAT)
The Crown Audio DCI 4|1250N is a 4-channel, 1250W network amplifier with advanced features for versatile and efficient sound applications. Compatible with Harman's BLU Link digital audio transport, it offers analog/digital inputs, network monitoring/control, programmable GPIO ports, and on-board DSP. It meets EN 54-16 compliance for life safety systems, producing up to 1250W per channel at various impedances. Each channel includes independent attenuators, with the ability to bridge channels for higher power needs. The device features system indicators for quick monitoring and can be integrated into control systems for energy-saving operation.
Model number
DCI4X1250N-U-EKFX
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Crown Audio DCI 4|1250N Network Amplifier
System integrators working on challenging 21st-century installed sound applications require equipment that is versatile, compact, and highly efficient. The 4-channel Crown Audio DCI 4|1250N, a 1250W DriveCore Install BLU Link network amplifier, is designed with advanced features and flexibility to meet these needs.
This 2 RU amplifier delivers up to 1250W per channel at various impedances and direct-drive constant voltage without the need for step-up transformers. It is compatible with Harman’s BLU Link digital audio transport, offering network monitoring, control, and programmable GPIO ports along with on-board DSP for optimized performance.
Key Features
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| Power Rating |
2 Ohms: 1250 W/Channel 4 Ohms: 1250 W/Channel, 2500 W (Bridged) 8 Ohms: 1250 W/Channel, 2500 W (Bridged) 16 Ohms: 625 W/Channel, 2500 W (Bridged) 70 V/100 V: 1250 W/Channel 140 V/200 V: 2500 W (Bridged) |
| Load Impedance/Voltage |
Parallel/Stereo: 2/4/8/16 Ohms, 70/100 V Bridged/Mono: 4/8/16 Ohms, 140/200 V |
| Frequency Response | 20 Hz to 20 kHz ±0.25 dB |
| Damping Factor | > 1000 |
| Input Sensitivity |
2 Vrms (8 Ohms) 1.4 Vrms (70 V) 2 Vrms (100 V) |
| Input Impedance |
10 Kilohms (Balanced) 5 Kilohms (Unbalanced) |
| Max Gain | 34 dB |
| SNR | > 104 dB (8 Ohms), > 108 dB (8 Ohms) |
| THD | < 0.35% (Full Range at Rated Power) |
| Crosstalk | > 80 dB (below rated power, 20 Hz to 1 kHz) |
| Protections | DC Fault, Low Impedance, Overvoltage, Short Circuit, Thermal, Ultrasonic, Undervoltage |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Cooling | Fan (Variable Speed) |
| Dimensions | 19.0 x 3.5 x 17.0 in / 48.3 x 8.9 x 43.2 cm |
| Weight | 30 lb / 13.6 kg |
