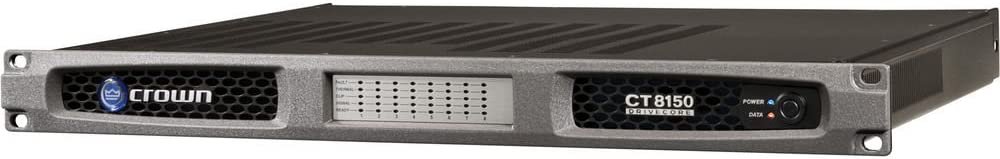

Crown CT 8150A-U 8-Channel 125W Power Amplifier with DriveCore Technology
9,775.17 AED Included (5% UAE VAT)
The amplifier utilizes DriveCore™ technology, integrating the amplifier drive stage into the power output stage on a compact chip. The front-end drive circuits enhance the efficiency of Class D output stages while delivering exceptional audio quality akin to a refined Class AB design.
Model number
NCT8150A-U-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Revolutionary DriveCore™ Power Amplifier
Experience the cutting-edge technology of DriveCore™ with this ultra-efficient amplifier. By integrating the amplifier drive stage directly into the power output stage, DriveCore™ achieves outstanding efficiency without sacrificing audio quality. This compact yet powerful chip delivers the superior performance of a Class AB design while incorporating the energy savings of Class D stages.
Key Features
- Flexible Input Routing for enhanced compatibility
- Convection Cooled architecture ensures silent operation
- Universal Power Supply adaptable to various voltages
- Integrated Life-Safety Features for reliable protection
- Compact design: Up to 8X125W in 1U chassis without a fan
- High efficiency: >90% with DriveCore™ technology, ensuring no compromise in performance
- Patented Feedback and Protection Circuits
- Stable operation for 2 to 16 Ohm Loads
- Requires XFMR 4/8 for 70V/100V Applications
Specifications
| Specification | Details |
|---|---|
| Channels | 8 |
| Sensitivity | 1.4 V |
| Rated Power Output | 125W per CH @ 4 ohms, 125W per CH @ 8 ohms |
| Signal to Noise Ratio | 110 dB |
| THD | < 0.05% |
| Intermodulation Distortion | < 0.05% |
| Frequency Response | +/- 0.5 dB |
| Crosstalk | > 70 dB |
| Common Mode Rejection | > 55 dB, typically > 70 dB |
| Voltage Gain | 27 dB |
| DC Offset | +/- 20mV |
| Idle Power Consumption | 25.5W |
| Dimensions | 1.75″ x 19″ x 15.19″ |
| Weight | 10 lbs / 4.54 kg |
| Shipping Weight | 15 lbs / 6.8 kg |
| IEC Power Connector | 15A |
