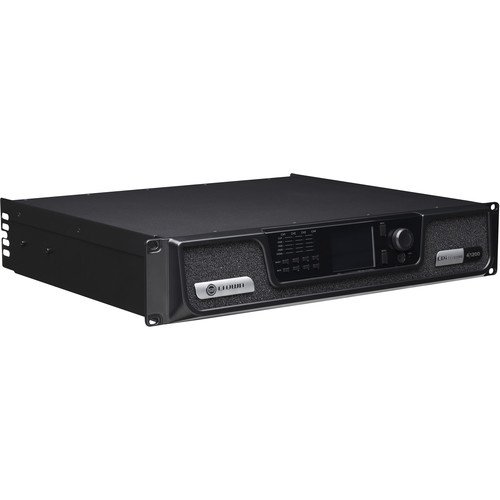

Crown Audio CDi 4|1200 4-Channel Power Amplifier 1200W DriveCore Tech
12,723.90 AED Included (5% UAE VAT)

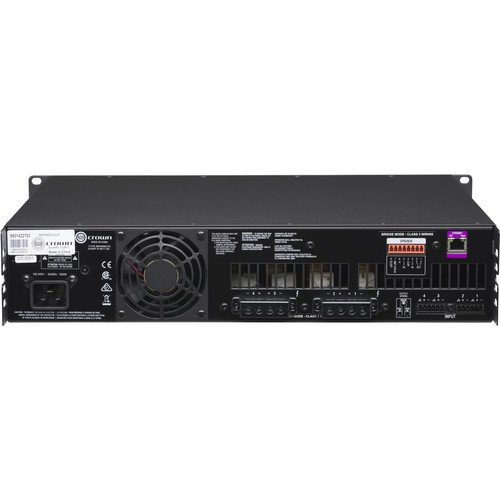

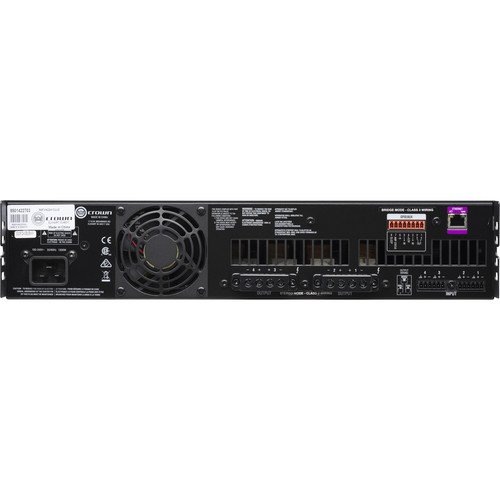

The 1200W Crown Audio CDi 4|1200 4-Channel DriveCore Series Power Amplifier integrates advanced DriveCore technology for high performance and reliability, suitable for large installations such as cinemas, houses of worship, and hotels. It features streamlined functionality, an easy-to-use front panel, network control and monitoring, advanced DSP, and the ability to drive 100Vrms speaker loads. The amplifier comes with JBL tunings and includes Ethernet for configuration via HARMAN's HiQnet Audio Architect software, with terminal block inputs and barrier strip outputs on the rear panel.
Model number
NCDI4X12-U-EU
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Crown Audio CDi 4|1200 4-Channel DriveCore Series Power Amplifier
The Crown Audio CDi 4|1200 4-Channel DriveCore Series Power Amplifier leverages cutting-edge DriveCore technology, offering unparalleled audio performance and versatility. Ideal for large installations such as cinemas, houses of worship, and hotels, this amplifier integrates advanced digital signal processing, network control capabilities, and robust protection circuits.
Key Features
- Integrated DriveCore technology for enhanced performance and reliability
- Network control & monitoring with HiQnet Audio Architect software
- Digital signal processing including EQ, crossover, and delay
- Support for 70V/100V direct drive without a transformer

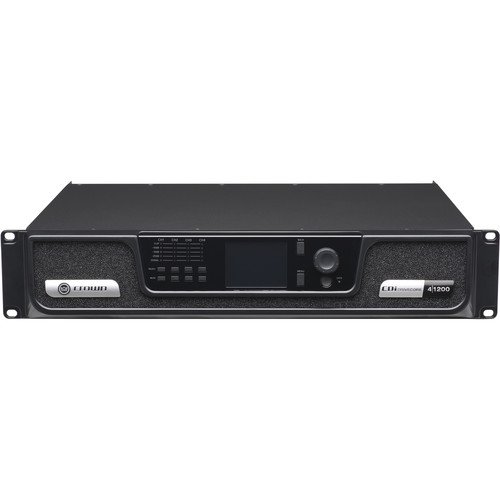

- Efficient front-panel interface with color LCD
- Environmentally friendly design complying with GreenEdge standards
- Pre-loaded JBL speaker tunings for streamlined setup
- Universal power supply with power factor correction (PFC)
- Flexible operational modes and advanced protection circuits
- Three-year no-fault transferable warranty
Specifications
| Specification | Details |
|---|---|
| Number of Channels | 4 |
| Power Rating | 1200 W per Channel 2400 W Bridged |
| Load Impedance / Voltage | Stereo: 2 / 4 / 8 / 16 Ohms per Channel 70 / 100 V per Channel Bridged: 4 / 8 / 16 Ohms 140 / 200 V |
| Protections | DC Fault, Low Impedance, Open Circuit, Overcurrent, Overvoltage, Ultrasonic, Undervoltage |
| Frequency Response | 20 Hz to 20 kHz ±0.25 dB (8 Ohms) |
| Damping Factor | > 1000 |
| Input Sensitivity | Line: 0.7 Vrms to 2.5 Vrms (at 8 Ohms) 1.4 Vrms to 5 Vrms (at 100 V) |
| Input Impedance | 10 Kilohms (Balanced) 5 Kilohms (Unbalanced) |
| Max Gain | 34 dB (at 4 Ohms, 8 Ohms, 70 V, 100 V) |
| SNR | > 104 dB |
| THD | 0.35% (at Rated Power) |
| Intermodulation Distortion | ≤ 0.35% |
| Max Input Level | +20 dBu |
| Dimensions (LxWxH) | 19.0 x 3.5 x 14.7 inches / 48.3 x 8.9 x 37.4 cm |
| Weight | 20.1 lb / 9.1 kg |
