500 in stock

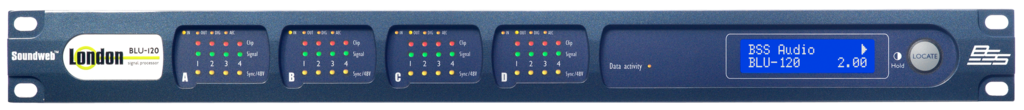

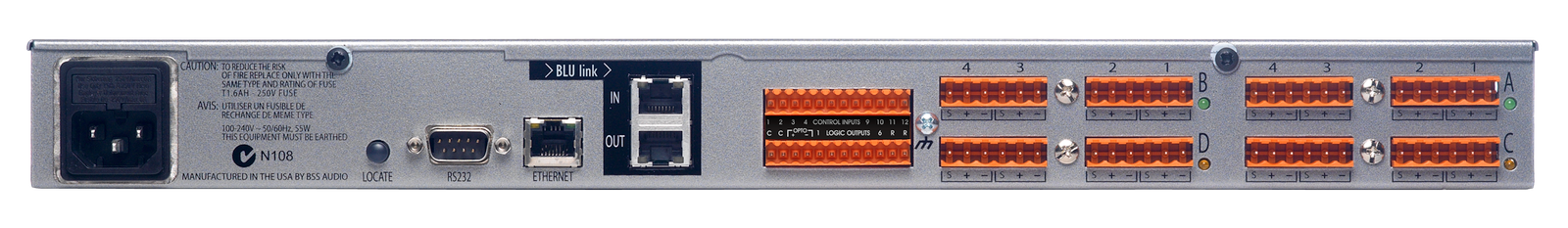

BSS BLU-120 Digital Audio Processor with 16 I/O and BLU Link
10,342.50 AED Included (5% UAE VAT)
The BLU-120 processor, configurable via HiQnet™ Audio Architect, employs a simple drag-and-drop configuration method with a low-latency, fault-tolerant 256-channel digital audio bus using Category 5e cabling for 100m range, extendable to over 40km with fiber optic converters. It features four card slots that support various I/O configurations, including Analog and Digital Input/Output Cards, AEC Input, and Telephone Hybrid Cards, each supporting four channels. Additional capabilities include software configurable gain and Phantom Power for Analog Inputs, and AES/EBU and S/PDIF processing for Digital cards, with extensive clocking and syncing options.
Model number
BLU-120
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
BLU-120 Digital Audio Processor
The BLU-120 is a versatile digital audio processor tailored to meet a variety of audio system requirements. Configurable via the HiQnet™ Audio Architect, it provides a rich palette of logic objects and a simple “drag and drop” configuration method, making it user-friendly and powerful.
- Supports a 256-channel fault-tolerant digital audio bus over standard Category 5e cabling, with distances up to 100m.
- Four card slots that can be fitted with various I/O cards, including Analog, Digital, AEC Input, and Telephone Hybrid Cards.
- LED indication for Phantom Power, Sync, Signal Present, and Clip per channel, with additional device information accessible from the front panel display.
- Integration with third-party control systems via 12 Control Inputs and 6 Logic Outputs.
- Part of the flexible and scalable Soundweb London product family.
Key Specifications
| Specification | Details |
|---|---|
| Chassis | 19″ (single rack space) |
| Custom I/O (card based) | Yes |
| Analog Inputs | Up to 16 |
| Digital Inputs | Up to 16 |
| AEC Inputs | Up to 16 |
| Analog Outputs | Up to 16 |
| Digital Outputs | Up to 16 |
| Telephone Connection | Up to 4 |
| Max Inputs/Outputs | 16 |
| Config | Software |
| LCD Display | Yes |
| Logic Processing | Yes |
| RS-232 | Yes |
| GPIO | Yes |
| Signal Processing (MHz) | No |
| Cobranet | No |
| SWL Digital Audio Bus | 256 |
| AVB | No |
| Dante | No |
Additional information
Additional information
| Brand |
|---|
