BSS Audio BLU-50 4×4 Signal Processor with BLU Link and Phantom Power
5,641.00 AED Included (5% UAE VAT)
The BLU-50 is a half-rack width processor featuring four inputs and four outputs with configurable signal and logic processing, and a 48-channel BLU link digital audio bus. It offers software configurable gain, phantom power, and LED indicators for signal monitoring. Power options include an included 12VDC supply, 12-48VDC via a terminal block, or PoE+ through the Ethernet port. Controlled via HiQnet Audio Architectâ„¢ or HiQnet London Architectâ„¢, the BLU-50 integrates seamlessly with other Soundweb London devices, supporting distances up to 100m with standard cabling and beyond 10km using fiber media converters.
Model number
BLU-50 (EU)
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
BLU-50 Fixed I/O Processor
The BLU-50 is a versatile half-rack processor designed for high-performance audio applications. It features a fixed configuration of 4 inputs and 4 outputs, along with configurable signal and logic processing. This processor supports multiple power options, including a 12VDC power supply, 12-48VDC via a terminal block connector, and Power over Ethernet (PoE+).
With software configurable input gain, selectable phantom power, and clear LED indications, the BLU-50 offers convenient monitoring without the need for a PC. It includes BLU link for low latency, fault-tolerant digital audio networking, and can be integrated with other Soundweb London devices through HiQnet software.
Key Features
- 4 Analog Inputs with 48V Phantom Power per Channel
- 4 Analog Outputs
- Configurable Signal Processing
- Rich Palette of Processing and Logic Objects
- 48 Channel Low Latency Digital Audio Bus

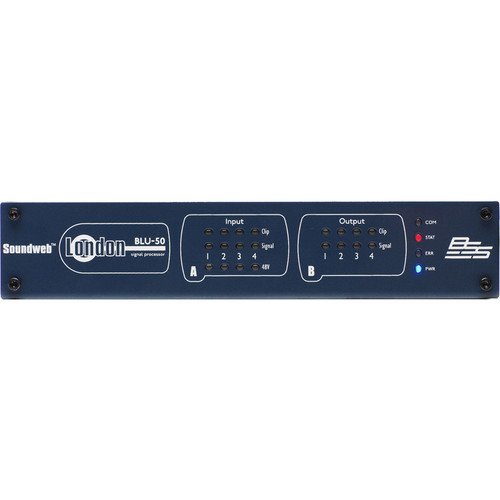

- Clear Front Panel LED Indication
- 12 Control Inputs and 6 Logic Outputs for GPIO Integration
- Multiple Powering Options including 12-48VDC and PoE+
- Rack, Surface, and Desk Mount Installation Options
| Specification | Details |
|---|---|
| Indicators | Per Input: Signal Present, Clip, 48V; Other: COM, STAT, ERR, PWR |
| Analog Inputs | 4 Electronically Balanced, Configurable Gain up to +48 dB, Input Impedance: 3.5 kΩ |
| Analog Outputs | 4 Electronically Balanced, Max Output Level: +20 dBu, Frequency Response: 20 Hz to 20 kHz |
| Control Ports | 12 Inputs, 6 Outputs, Voltage Range: 0 to 4.5 V |
| BLU Link | 2 x RJ45 Connectors, Max Distance: 100m using Cat 5e Cable |
| Power Requirements | 12 to 48 VDC, Power Consumption: < 55 VA |
| Dimensions | 1.6 x 8.6 x 7.8 in (41.3 x 219.2 x 196.9 mm) |
| Weight | 2.8 lb (1.3 kg) |
Packaging Info
| Category | Details |
|---|---|
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 12.1 x 11.1 x 7.4 in |
