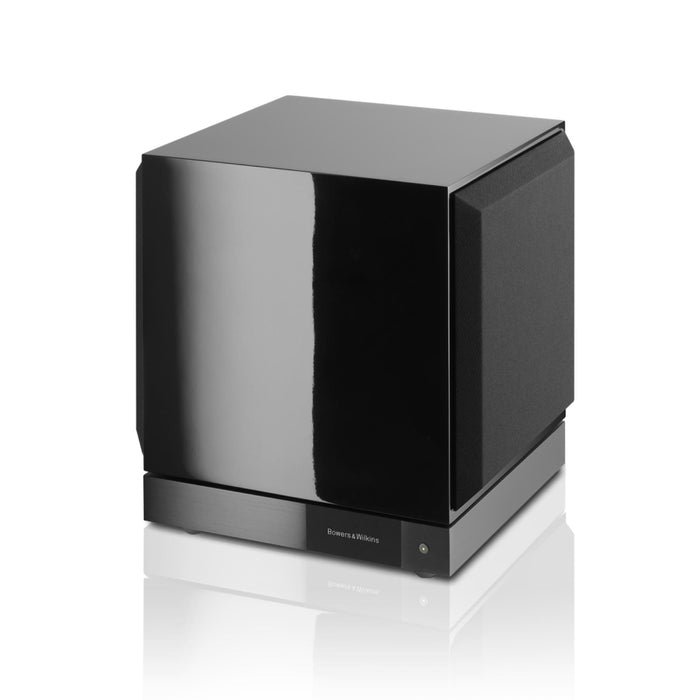

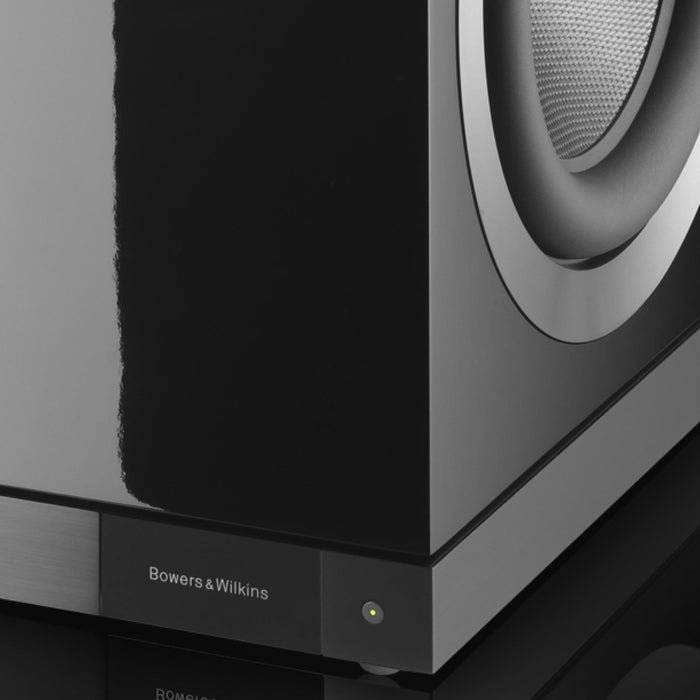

Bowers & Wilkins DB3D Subwoofer

The Bowers & Wilkins DB3D subwoofer delivers astonishing performance from a compact design. With dual balanced 8-inch Aerofoil drivers powered by a 1000 Watt Class D amplifier, it produces punchy and deep bass that truly enhances any audio experience.

Bowers & Wilkins DB3D Subwoofer

Product Highlights

  • Precision. Accuracy. Power. – Incorporates new digital technology and material advances for an exceptional sound experience.
  • App-based Setup – Simple configuration with dedicated app for iOS and Android; includes Room EQ system for optimal performance.
  • Aerofoil Cones – Derived from the 800 Series Diamond, providing controlled bass with outstanding precision.
  • Balanced Configuration – Two bass cones in an opposed arrangement reduce cabinet vibration for cleaner sound.
  • Advanced Digital Preamplifier – Features Dynamic EQ and automatic calibration for optimal audio delivery.

Specifications

Specification Details
Description DB Series Subwoofer
Drive Units 2 x 200mm (8in) Aerofoil-cone drivers in a balanced configuration
Frequency Range (-6dB) 8.5Hz – 500Hz
Frequency Response (-3dB @ 100Hz) 10Hz – 350Hz
Max Power Output 1000W Class D Hypex amplifier
Rating Power Consumption 195W
Standby Power Consumption <0.5W
Input Impedance XLR 20kOhm, RCA 10kOhm
Signal to Noise Ratio 82dB
Features
  • 1000W Class D Hypex amplifier
  • 2 x 200mm (8in) Aerofoil-cone drivers
  • Digital preamplifier with Dynamic EQ
  • App-based setup and control via BT-LE
Inputs
  • 2 x XLR
  • 2 x RCA
  • 2 x 3.5mm 12V trigger
  • RS-232 – 9-pin D connector
Dimensions
Height 360mm (14.1in)
Width 320mm (12.6in)
Depth 300mm (11.8in)
Net Weight 25kg
