Description

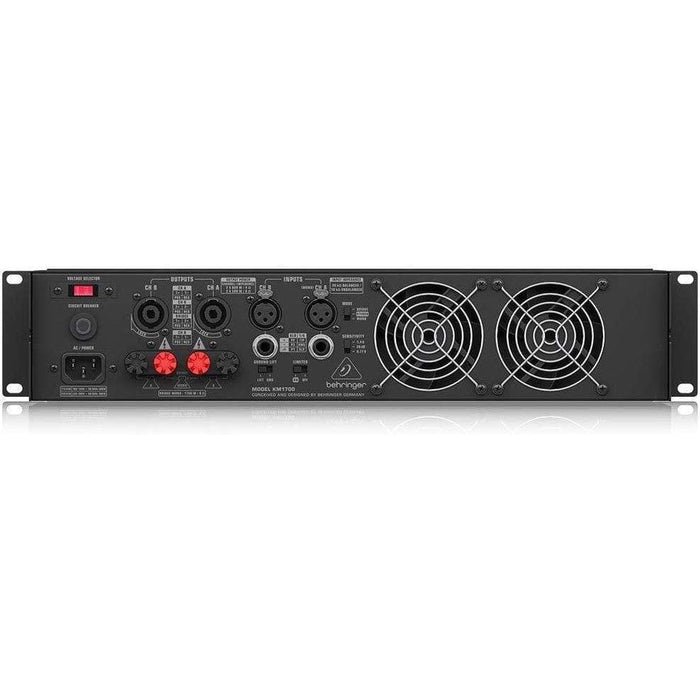

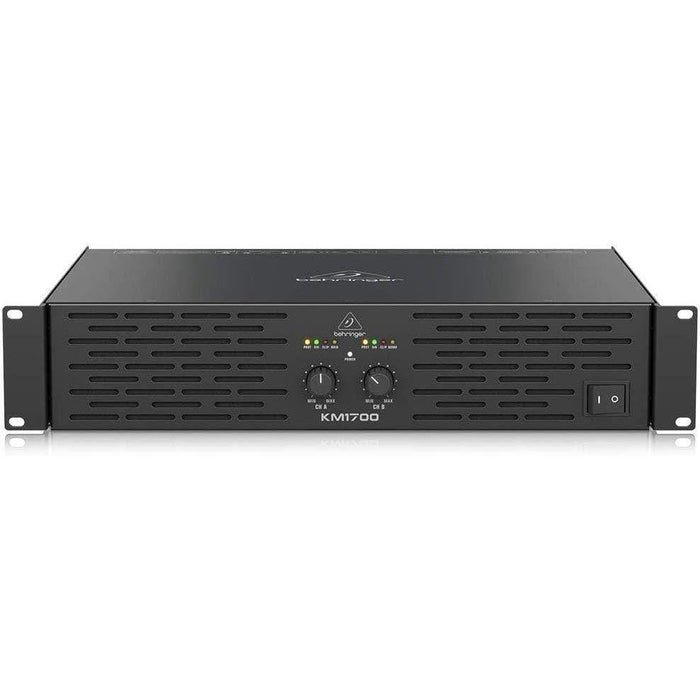

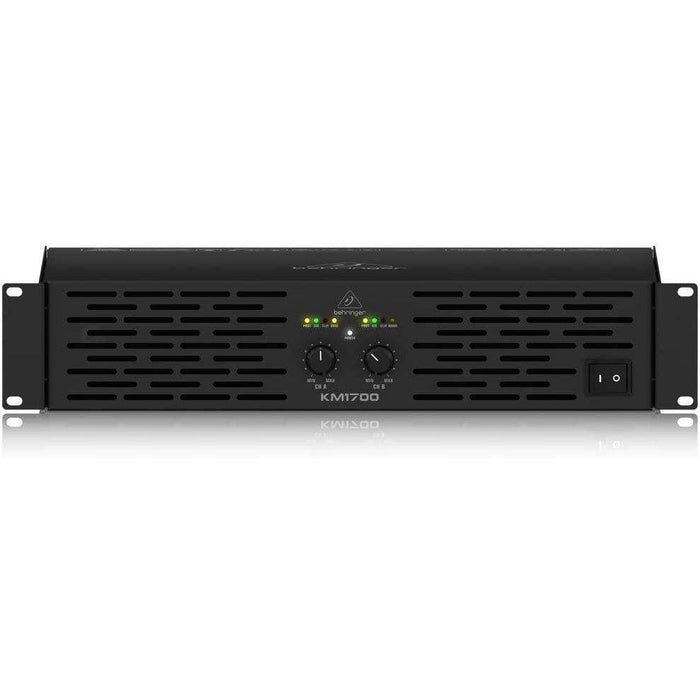

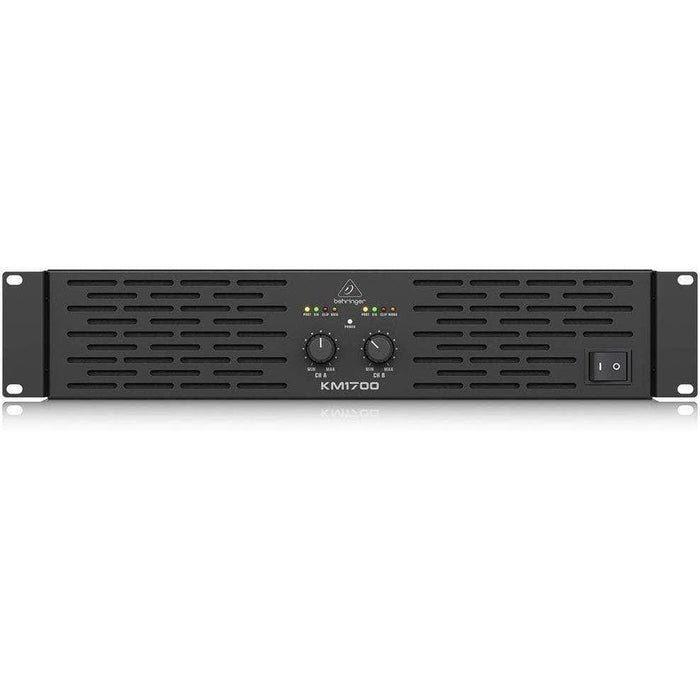

The KM1700 from Behringer is a stereo power amplifier that is capable of delivering 500W into 8 Ohm loads, or 800W into 4 Ohm loads. In bridged-mono mode, it can reach an output power of 1700W. The amplifier features Behringer’s ATR technology, which is designed to preserve a quick, tight transient response even at high volume levels. Its front panel controls are simple: two positive-detent gain knobs allow you to control the level of each independent channel. To keep you abreast of the amplifier’s various goings-on, LEDs have been provided for monitoring of power, signal, and overloads. Turn your attention to the back panel and you’ll notice two balanced XLR inputs, as well as two unbalanced 1/4″ TRS jacks. The amplifier provides two locking speaker connections with touch-proof binding posts, thus supporting the wiring systems of most professional speakers. You’ll also see the selector which switches between mono, stereo, or bridged mono mode, as well as a ground/lift switch and a selector to turn on the built-in limiter.

 Features

• 2 x 800W into 4 Ohms
• 2 x 500W into 8 Ohms
• 1700 Watts into 8 Ohms (bridged mono mode)
• ATR (Accelerated Transient Response) technology for punch and clarity
• Switchable limiters offer maximum output level with reliable overload protection
• Power, signal and clip LEDs to monitor performance
• XLR and 1/4″ TRS input connectors
• Professional speaker connectors and touch-proof binding posts
• Independent DC and short circuit protection on each channel automatically protects amplifier and speakers
• High-current toroidal transformer for high transient response
• Front to back ventilation
• Impact-resistant, all-steel 2U rackmount chassis
