Allen & Heath AR2412 24 XLR Input 12 Output Stage Box – Black
6,583.50 AED Included (5% UAE VAT)
The Allen & Heath AR2412M in black expands your mixing capabilities with 24 XLR inputs and 12 XLR outputs when connected to a GLD-80 or GLD-112 mixer via Cat5 cable using the dSNAKE protocol. It enables remote preamp control and scene recall up to a distance of 120m. For larger configurations, it supports connections with the AR84 or AB168 AudioRack for an additional 16 XLR inputs and 8 XLR outputs, and features an Aviom Pro16 compatible Monitor port.
Model number
AR2412
Availability
In Stock
UAE delivery
Timing confirmed at checkout.
Timing confirmed at checkout.
Compatibility support
Expert product matching.
Expert product matching.
Secure payment
Protected checkout in AED.
Protected checkout in AED.
Secure checkoutProtected payments in AED
Description
Description
Allen & Heath AR2412M AudioRack

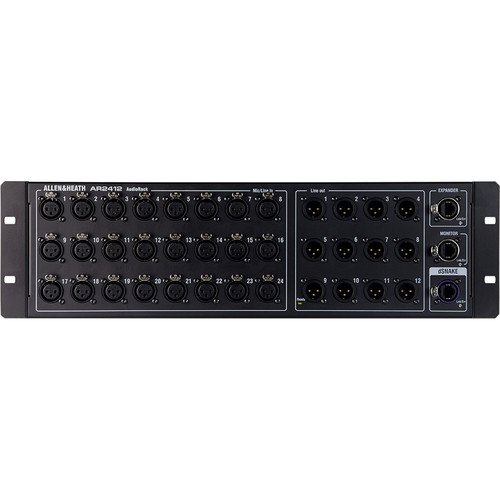

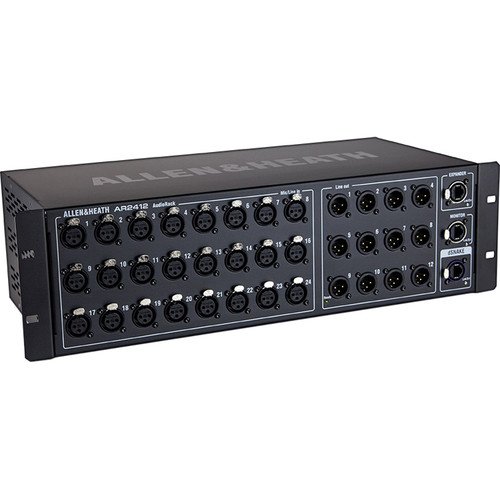

The Allen & Heath AR2412M is a robust, black stage box designed to expand the input/output capabilities of your GLD-80 or GLD-112 mixer. This device offers 24 XLR inputs and 12 XLR outputs, connecting via a Cat5 cable with the proprietary dSNAKE protocol. This connection enables the AR2412M to be positioned up to 120m away from the mixer, providing flexibility in various stage setups.
dSNAKE technology also gives remote control over the preamp settings, and all mic preamps are fully scene recallable. For enhanced functionality, you can connect additional AR84 or AB168 AudioRacks to the AR2412M, adding up to 16 inputs and 8 outputs.
Features
- 24 XLR Mic Preamps
- 12 XLR Line Outputs
- Secure dSNAKE connection with Ethercon port
- Expansion port for additional AR84 or AB168 units
- Dedicated ME personal mixing system port
- Rack mountable design
- Compatible with Aviom Pro16 Monitor port
Specifications
| Specification | Details |
|---|---|
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 50 W |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 15 lb |
| Box Dimensions (LxWxH) | 24 x 14 x 11″ |
